Custodia per montaggio a parete Digitus DN-19 12-U-3 a doppia apertura orientabile

The DIGITUS Unique Series wall-mounting cabinet DN-19 12-U-3 is a double-sectioned 19" network cabinet with pivoting front door and removable, lockable side panels. Constructed from up to 1.5 mm thick sheet steel and finished with electrostatic powder coating in grey (RAL 7035), this cabinet is intended for reliable installation of network devices in environments that require sturdy wall-mounted enclosures. The cabinet includes two adjustable 483 mm (19") profile rails with rack unit markings readable in both directions and a perforated 483 mm (19") back frame for device mounting. Roof and back cable inlets, brush management panels and a pre-cut roof area for a fan module support flexible cabling and ventilation options.

Advantages

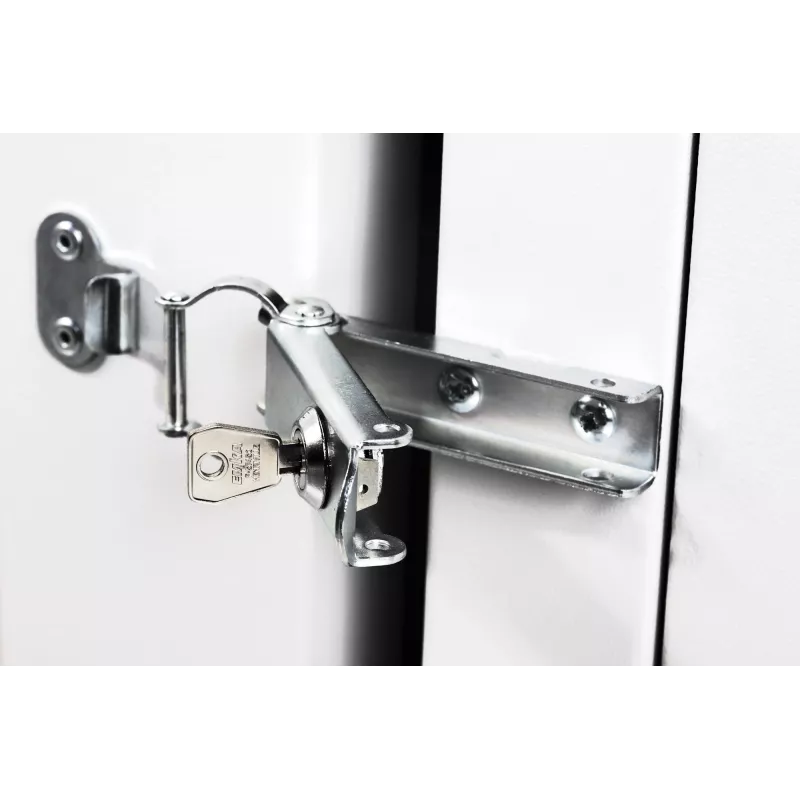

Robust steel construction and lockable safety-glass front door with steel frame provide physical protection while removable, lockable side panels and switchable door hinges allow flexible access for installation and maintenance. The integrated hinge in the back frame enables folding the housing to the side to simplify rear-area assembly work. Adjustable 19" profile rails and multiple cable inlet options (sliding roof inlet with foam seal, pre-cut back inlets with covers and brush panels) make cabling and equipment layout adaptable to different setups. The cabinet can be wall-mounted in two simple steps and—when fitted with optional leveling feet or casters—can be converted to a free-standing unit.

Suitable for

• Small to medium network installations requiring up to 12U of 19" rack space
• Wall-mounted applications in offices, server rooms or telecom closets
• Environments needing secure, lockable housing for switches, patch panels and small servers

Key specifications

• Model: DIGITUS DN-19 12-U-3
• Rack size: 19" (483 mm), 12 U
• Construction material: sheet steel, up to 1.5 mm
• Dimensions (W x D x H): 600 x 600 x 610 mm
• Maximum load capacity: 80 kg
• Colour: Grey (RAL 7035)
• Features: lockable safety-glass door with steel frame, removable/lockable side panels, adjustable 19" rails, back perforation, roof cable inlet with foam seal, pre-cut fan area
• Mounting: wall mount; convertible to free-standing with optional feet or casters
• MPN / EAN: DN-19 12-U-3 / 4016032186748

How to use

Mount the cabinet frame plate to the wall using appropriate anchors for your wall type, then attach the housing to the frame plate so the door can open in either direction. Adjust the depth of the 19" profile rails to fit your equipment and install devices using standard 19" rack screws. Route cables through the sliding roof inlet with foam seal or the pre-cut back inlets; use brush management panels for tidy cable entry. If ventilation is required, install a compatible fan module into the pre-cut roof area. Lock the front door and side panels after installation to secure equipment.

Recommendations

For safe installation, ensure wall fixings are rated for at least the cabinet's maximum load (80 kg) plus the weight of installed equipment. Use proper ESD precautions when installing sensitive electronics and maintain free airflow around any installed fan modules. Consider optional leveling feet or casters if you plan to convert the cabinet to a free-standing unit.
