Custom STAMPANTE VKP80II USB RS232 RX EJC-M CN - stampante POS - stampante

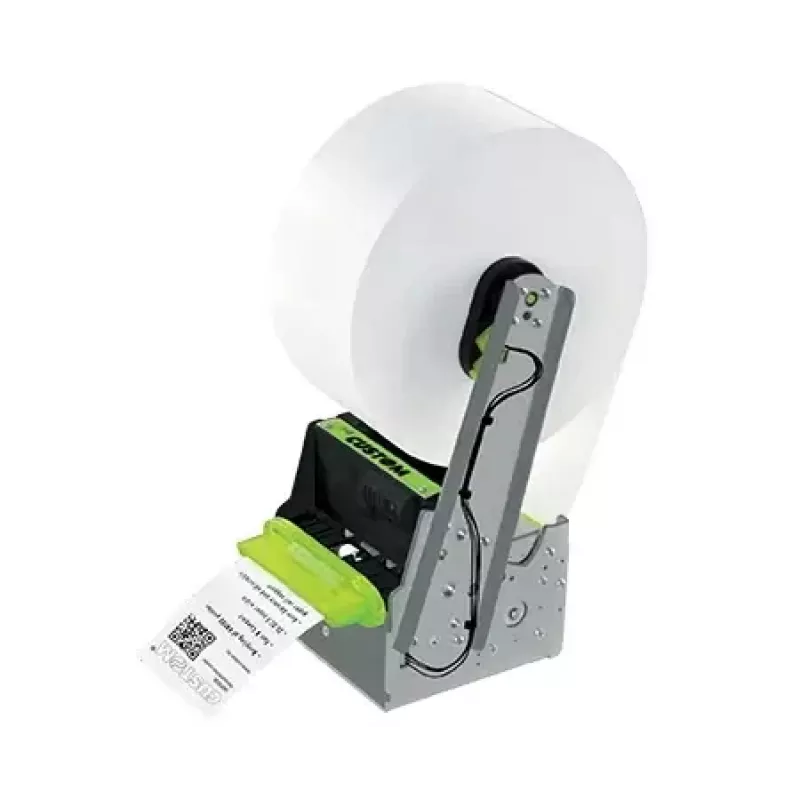

The Custom VKP80II stands apart from typical receipt printers with its kiosk-ready panel mount design and dual USB/RS232 interfaces, making it a reliable choice for self-service terminals and high-volume retail environments. Built around a direct thermal engine, it delivers crisp 200 dpi output at speeds up to 220 mm/s, while the robust auto cutter handles partial or full cuts with a life of one million cuts. This model includes the RX EJC-M CN configuration, ensuring compatibility with a wide range of POS software through Windows, Linux, OPOS, and JavaPOS drivers.

Highlights

• Direct thermal printing at 200 dpi with speeds up to 220 mm/s
• Supports 80 mm paper width (adjustable to 58 mm) and rolls up to 180 mm diameter
• Dual connectivity: USB 2.0 Full Speed and RS232 serial
• Auto cutter with partial/full cut and 1,000,000 cuts MCBF
• Print head life of 100 km for long-term reliability
• Panel mount design for kiosk integration
• Comprehensive barcode support: 1D (UPC-A, UPC-E, EAN13, EAN8, Code39, ITF, CODABAR, Code93, Code128, Code32) and 2D (PDF417, DATAMATRIX, AZTEC, QRCODE)
• Multiple international character sets for global use

In daily use

Engineered for continuous operation, the VKP80II excels in unattended kiosks, point-of-sale counters, and hospitality environments. Its sensors for paper end, paper near end, print head temperature, and cover open help prevent downtime and ensure consistent output. The printer operates reliably in temperatures from 0°C to +50°C, making it suitable for varied indoor conditions. With a 24VDC power supply requirement, it integrates easily into existing systems. The included auto cutter streamlines receipt dispensing, while the adjustable paper width accommodates both 80 mm and 58 mm media for versatile applications.

Full specifications

• Print technology: Direct thermal
• Maximum resolution: 200 dpi
• Print speed: Up to 220 mm/s
• Paper width: 80 mm (adjustable to 58 mm)
• Paper roll diameter: Up to 180 mm
• Interfaces: USB 2.0 Full Speed, RS232 (Serial)
• Auto cutter: Yes (partial/full cut), 1,000,000 cuts MCBF
• Print head life: 100 km
• Emulation: Custom/POS
• Drivers: Windows, Linux, OPOS, JavaPOS
• Power supply: 24VDC
• Sensors: Paper end, paper near end, print head temperature, cover open
• Barcode support: 1D (UPC-A, UPC-E, EAN13, EAN8, Code39, ITF, CODABAR, Code93, Code128, Code32) & 2D (PDF417, DATAMATRIX, AZTEC, QRCODE)
• Character sets: Multiple international
• Operating temperature: 0°C to +50°C
• Mounting type: Kiosk/Panel mount

Final note

With its durable construction, flexible connectivity, and kiosk-ready design, the Custom VKP80II is a dependable printing solution for demanding commercial applications.
