CyberPower OL5KERTHD Gruppo di continuità (UPS) Doppia conversione (Online) 5 kVA 5000 W 6 uscite AC

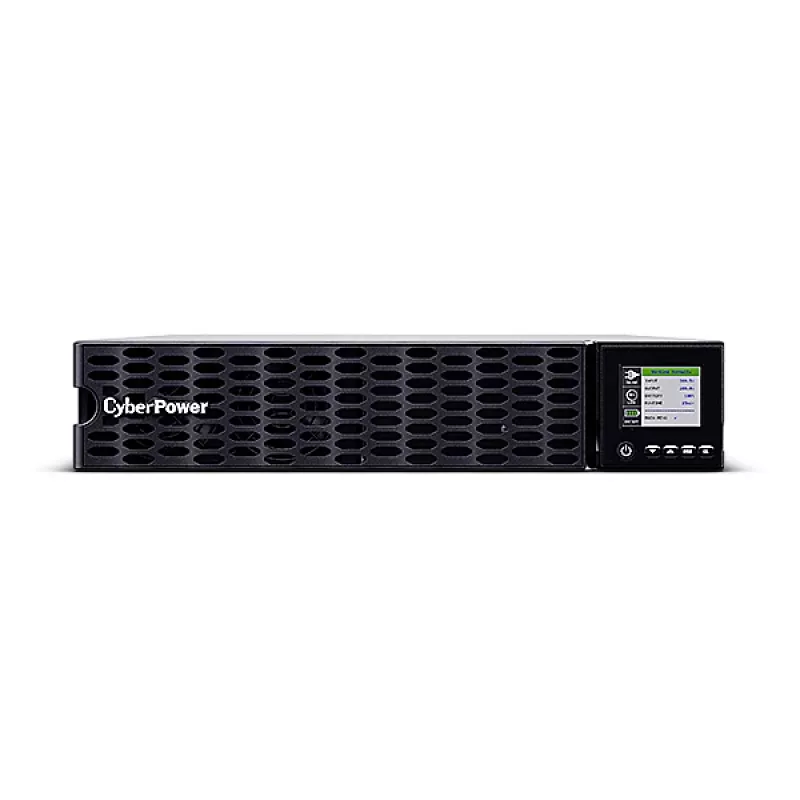

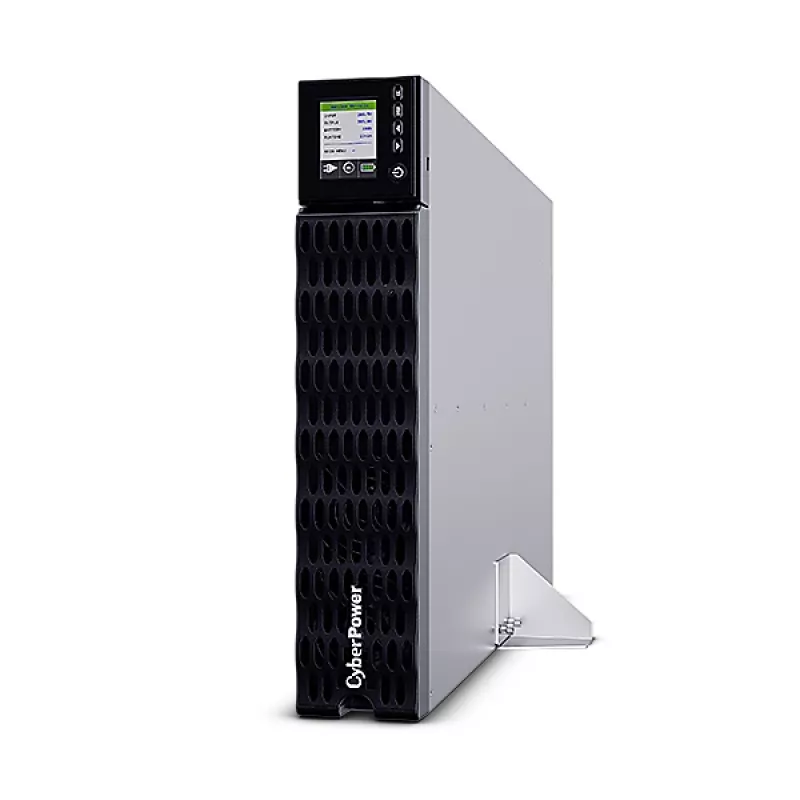

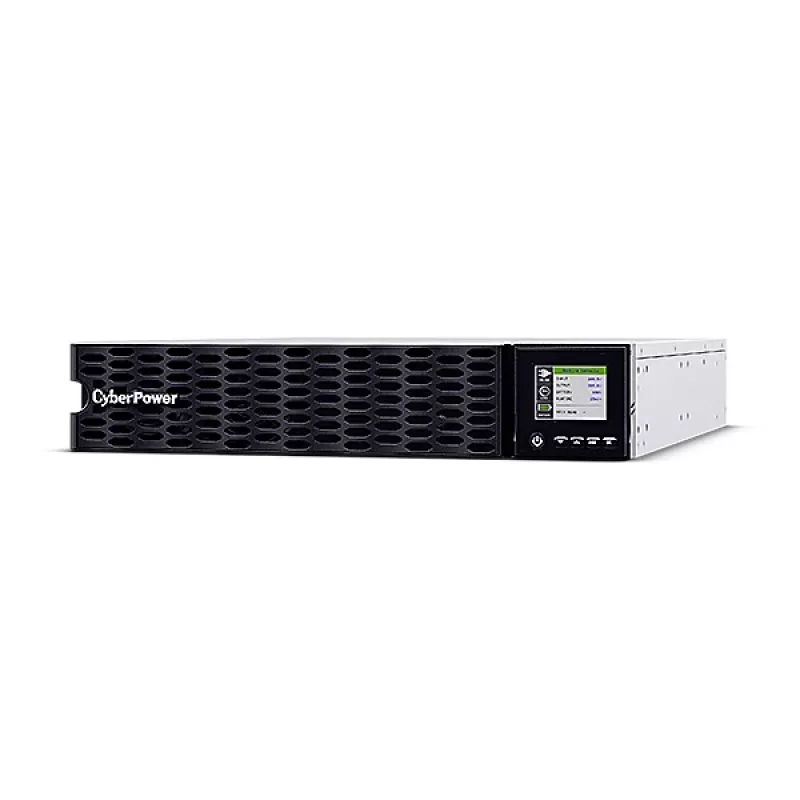

The CyberPower OL5KERTHD is a 5 kVA / 5000 W double-conversion online UPS designed to provide continuous, high-quality power for IT equipment, servers, workstations, NAS/storage, telecom and networking devices, as well as security and surveillance systems. The unit features a rackmount/tower black metal chassis, sealed lead-acid batteries (12 V, 6 Ah), six AC outlets (C13, C19, Terminal) and compatibility with external Extended Battery Modules (EBM) to extend runtime. Certification compliance includes CE, EAC, RCM and RoHS.

Advantages

The double-conversion topology ensures stable, clean output voltage and frequency regardless of mains disturbances, while generator compatibility maintains operation during extended outages. Hot-swappable internal battery packs enable battery replacement or maintenance without shutting down protected loads. Patented Battery Management Technology balances battery string voltage to extend battery life, and an ECO Mode is available to reduce energy consumption. A tiltable color LCD panel provides at-a-glance status of power and battery parameters, and PowerPanel® management software supports real-time monitoring and remote management.

Suitable for

• Small to medium server rooms and data centers
• Workstations and professional desktop environments
• Network and telecom equipment racks
• NAS/storage arrays and backup systems
• Security, surveillance and emergency systems

Key specifications

• Model: CyberPower OL5KERTHD
• Output power: 5000 W
• Capacity: 5 kVA
• Topology: Double-conversion online (VFI)
• Battery type: Sealed lead acid, 12 V / 6 Ah

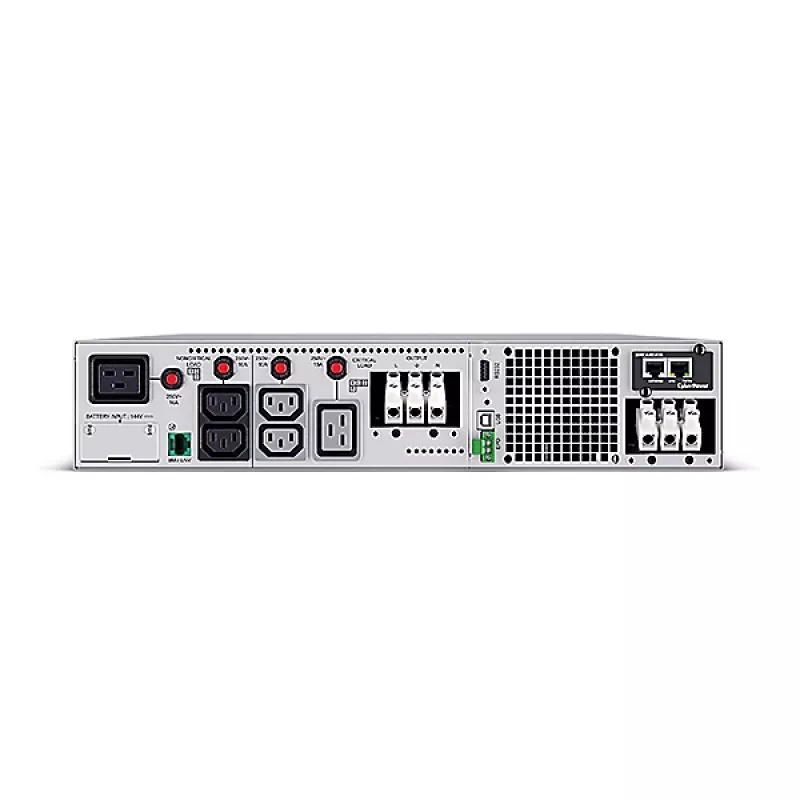

• AC outlets: 6 (C13, C19, Terminal)
• Ports: 1 x USB 2.0
• Form factor: Rackmount / tower, black metal
• Weight: 42 kg
• Compliance: CE, EAC, RCM, RoHS

How to use

Install the UPS in a rack or place it on a stable surface in tower configuration, ensuring adequate ventilation and ambient temperature within the manufacturer’s recommended range. Connect critical devices to the UPS AC outlets (C13, C19, Terminal) and attach the UPS to a grounded mains supply. If extended runtime is required, connect compatible Extended Battery Modules (EBM) according to the installation guide. Use the tiltable color LCD to view real-time status and alerts, and install PowerPanel® software on a management workstation for configuration, scheduled shutdowns and remote monitoring via the USB port.

Recommendations

For optimal battery lifespan and reliable operation, perform periodic battery self-tests, replace hot-swappable battery packs before end-of-life, keep firmware and PowerPanel® software updated, and ensure the UPS is connected to a stable mains or generator source when used in generator-compatible mode.
