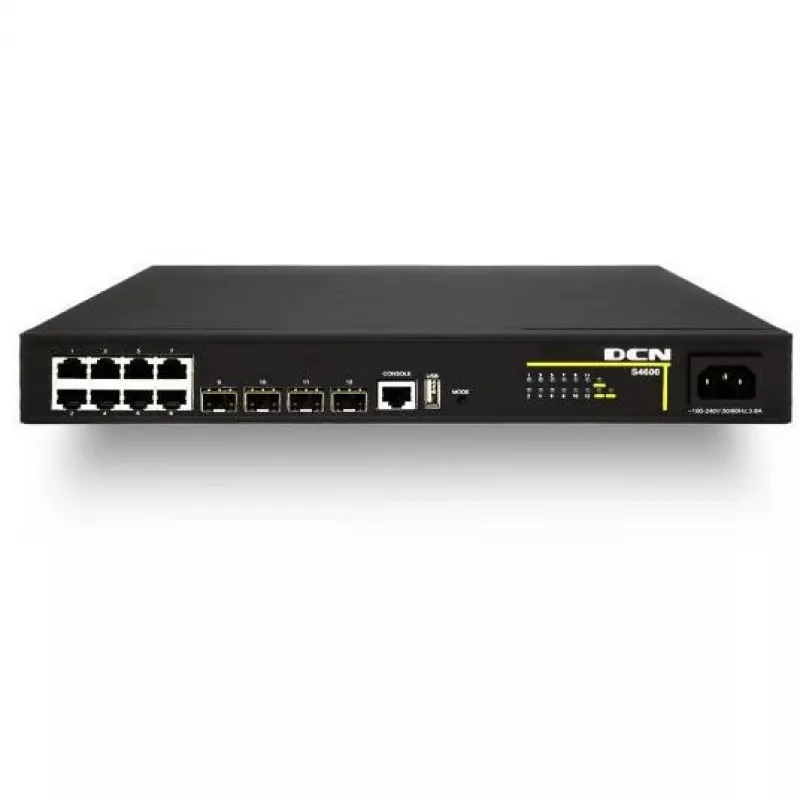

Dahua Technology DCN S4600-12X-P-SI Switch managed Layer 2+, 8x PoE+ 10/100/1000Base-T + 4x 10G SFP+, budget PoE 125W

The Dahua Technology DCN S4600-12X-P-SI is a high-performance managed Layer 2+ switch designed for enterprise and campus networks. It features 8 Gigabit Ethernet PoE+ ports and 4 10 Gigabit SFP+ uplink ports, delivering a total PoE power budget of 125W to support IP cameras, wireless access points, and other powered devices. With a switching capacity of 128 Gbps and advanced Layer 2+ features including static routing, this switch provides reliable, secure, and efficient network connectivity.

Advantages

Robust PoE+ support with 125W budget enables flexible device deployment. 10G uplinks ensure high-speed backbone connectivity. Comprehensive security features like ACL, DHCP snooping, and ARP inspection protect the network. Smart fan design minimizes noise while maintaining optimal thermal performance.

Suitable for

• Enterprise access layer networks
• Campus and branch office deployments
• Surveillance systems requiring PoE+
• Wireless LAN aggregation

Key specifications

• Managed Layer 2+ switch with static routing
• 8 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at)
• 4 x 10 Gigabit SFP+ uplink ports
• Total PoE power budget: 125 W
• Switching capacity: 128 Gbps
• Forwarding rate: 95.23 Mpps
• MAC address table: 16K entries
• VLAN support: 4K VLANs (IEEE 802.1Q)
• Jumbo frame support: up to 9K bytes
• Management: Web GUI, CLI, SNMP, Telnet, SSH
• Rack-mountable 1U form factor
• Internal AC power supply (100-240V, 50/60Hz)
• Operating temperature: 0°C to 50°C
• Quality of Service: 8 queues per port, SP/WRR/SP+WRR
• Security: ACL, Port Security, DHCP Snooping, ARP Inspection
• Smart fan for efficient cooling
• MTBF: >100,000 hours

Recommendations

For optimal performance, pair with Dahua PoE+ cameras and access points. Use SFP+ modules for 10G uplinks to core switches. Ensure proper ventilation in the rack for reliable operation.
