Dahua Technology videocitofono set KTX01(F) Wi-Fi / 2 fili

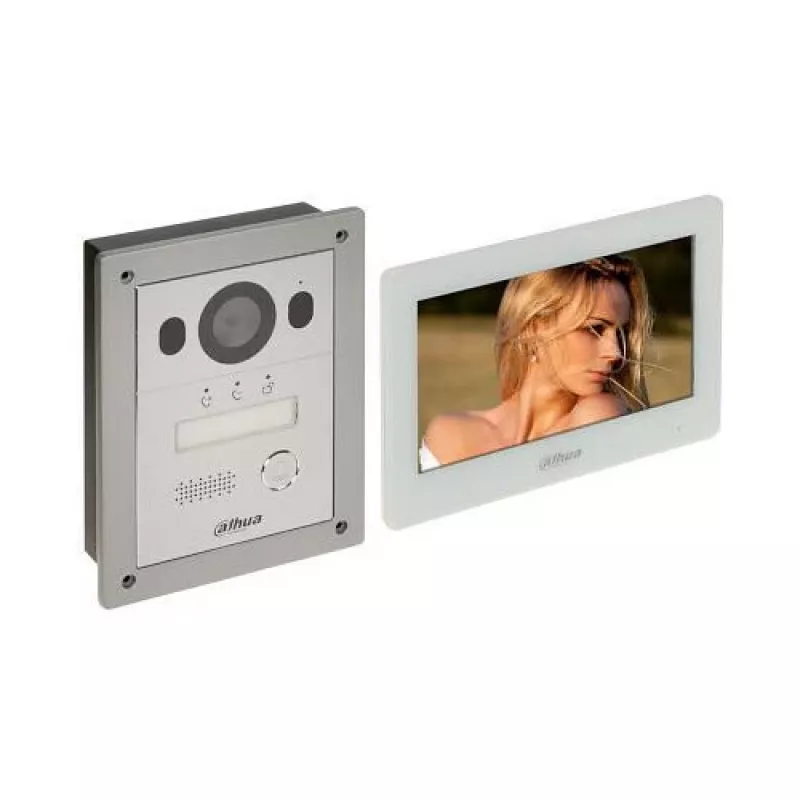

The Dahua Technology Video Intercom Set KTX01(F) is a complete 2-wire IP video intercom kit designed for residential and small commercial applications. It includes an outdoor station with a 2MP camera and an indoor monitor with a 7-inch touch screen, providing clear two-way communication and remote access via the DMSS app.

Advantages

This intercom set offers easy installation using existing 2-wire cabling, combined with Wi-Fi connectivity for flexible integration. The outdoor station is weatherproof (IP65) and vandal-resistant (IK07), ensuring durability. The indoor monitor features a capacitive touch screen and supports micro SD card storage up to 256GB for event recording.

Suitable for

• Residential buildings
• Small offices
• Apartment complexes
• Gated communities

Key specifications

• System Type: 2-Wire IP Video Intercom Kit
• Connectivity: Wi-Fi (2.4GHz), 2-Wire
• Outdoor Station Camera: 2MP CMOS, WDR
• Outdoor Station Lens: 125° Horizontal, 70° Vertical
• Outdoor Station Night Vision: IR Illumination
• Outdoor Station Protection: IP65, IK07
• Indoor Monitor Display: 7-inch TFT Capacitive Touch Screen
• Indoor Monitor Resolution: 1024x600
• Indoor Monitor Storage: Micro SD Card Slot (up to 256GB)
• Audio Features: Two-way Talk, Built-in Mic & Speaker, Echo Cancellation
• Door Release: 1 x Relay Output
• Mobile App Support: Dahua DMSS App
• Power Supply: 2-Wire Power (via included VTX0102-B switch)
• Alarm Inputs: 6 (on indoor monitor)
• Outdoor Station Dimensions: 130 mm × 96 mm × 28.5 mm
• Indoor Monitor Dimensions: 190 mm × 135 mm × 26 mm
• Operating Temperature (Outdoor): -30°C to +60°C
• Operating Temperature (Indoor): -10°C to +55°C
• Outdoor Station Material: Aluminum Alloy Panel
• Mounting Type: Surface Mount

Recommendations

For optimal performance, ensure the 2-wire cable is properly terminated and the Wi-Fi signal is strong. The DMSS app is available for iOS and Android for remote monitoring and door release.
