Supporto a soffitto Dahua Technology PFB201C

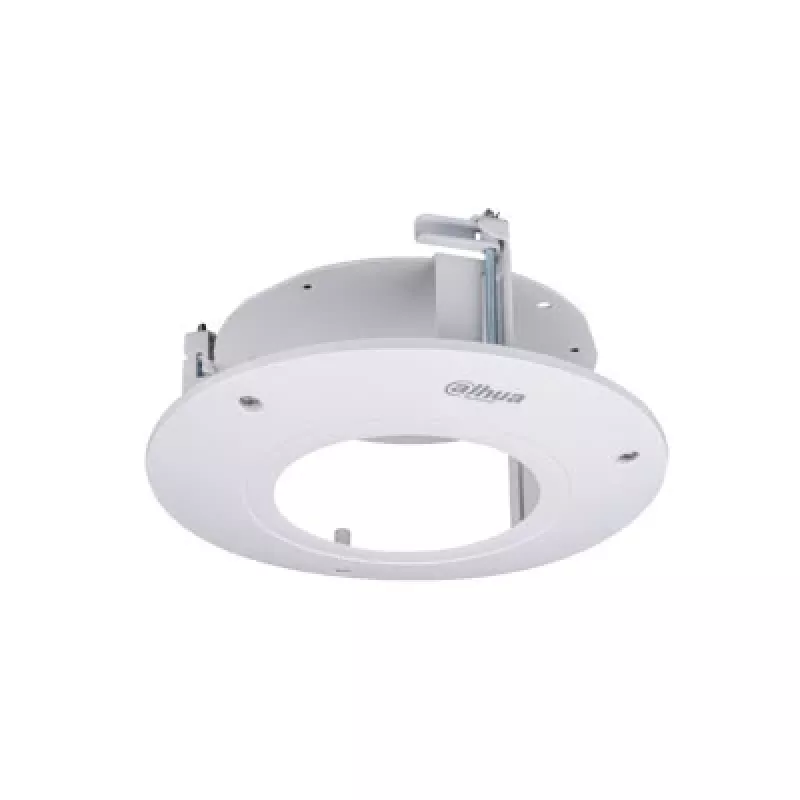

The Dahua Technology In-ceiling Mount Bracket PFB201C is an indoor ceiling mount designed to secure compatible CCTV cameras. It supports camera assemblies with a maximum weight of 1.5 kg and connects using a 3/4" threaded interface. The bracket has a diameter of 21.1 cm, a depth of 88 mm and a total height of 610 mm. Finished in white, the mount is intended to blend with typical ceiling interiors and provide a discreet support solution for surveillance devices.

Advantages

The PFB201C offers a compact in-ceiling form factor that reduces visible hardware while maintaining stable support for cameras up to 1.5 kg. Its 3/4" connecting thread ensures compatibility with many standard camera housings and adaptors. With measured dimensions — 21.1 cm diameter, 88 mm depth and 610 mm height — the bracket provides predictable installation space and alignment for indoor ceiling mounting. The white finish is chosen to integrate with most ceiling surfaces.

Key specifications

• Maximum supported load: 1.5 kg
• Connecting thread: 3/4"
• Diameter: 21.1 cm
• Depth: 88 mm
• Height: 610 mm
• Color: white
• Intended use: indoor ceiling mount

How to use

Prepare the ceiling location and ensure structural support for the combined weight of the bracket and camera. Route camera cabling through the ceiling space and the bracket body before final assembly. Attach the bracket to the ceiling structure according to local fastening practices and align the 3/4" threaded connection with the camera or adapter. Secure the camera to the threaded interface, verify alignment and tighten connectors to prevent movement. After installation, check that the camera operates correctly and that cabling is safely secured within the ceiling void.
