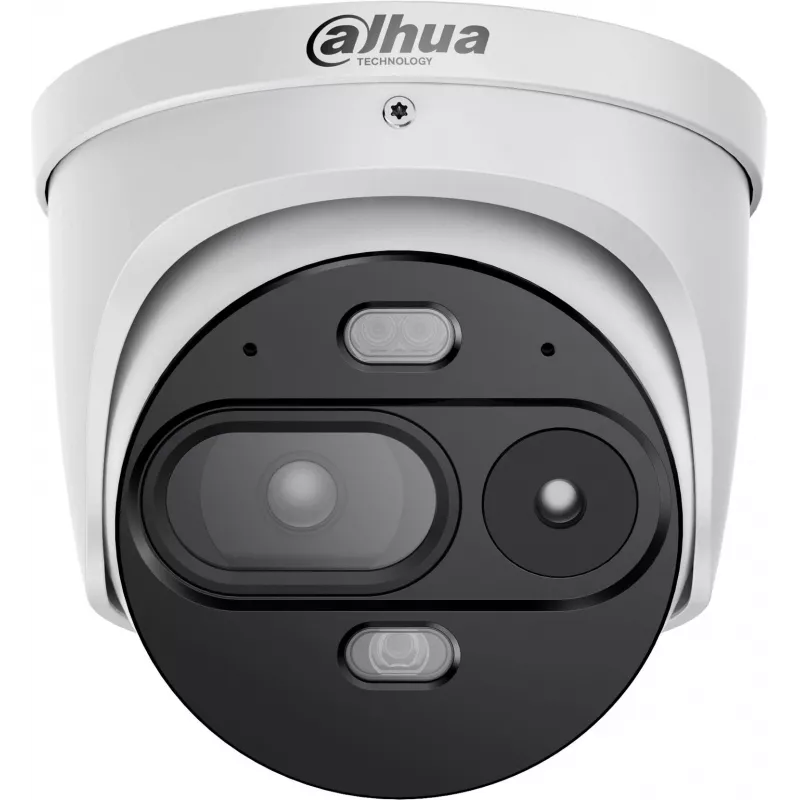

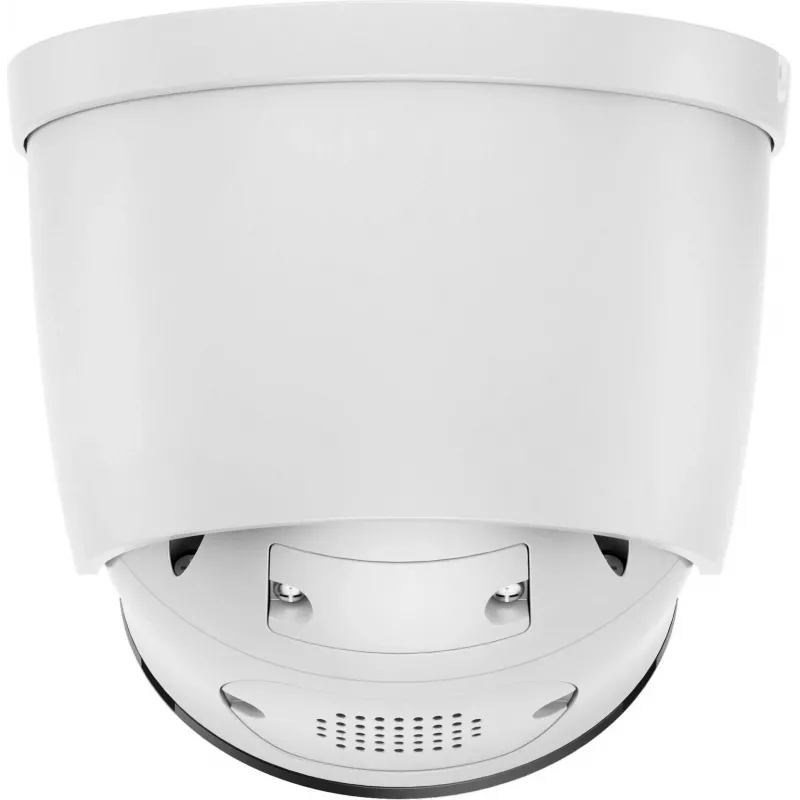

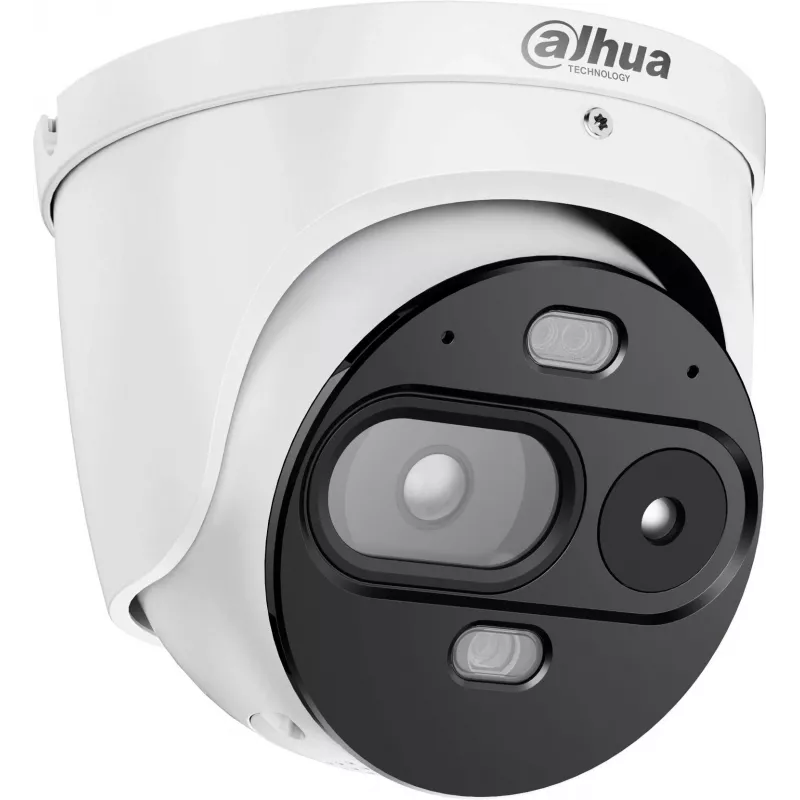

Dahua TPC-DF1241-TB2F2-DW-S8-V1 telecamera IP termica e visiva

The Dahua TPC-DF1241-TB2F2-DW-S8-V1 is a dual-sensor IP camera combining thermal and visual imaging for reliable 24/7 surveillance. With a high-sensitivity VOx microbolometer thermal sensor and a 4MP visual sensor, it delivers clear images in complete darkness and challenging environments. Ideal for perimeter protection, fire detection, and temperature monitoring.

Advantages

Integrated thermal and visual channels provide comprehensive situational awareness. Smart analytics including fire detection, intrusion, and tripwire reduce false alarms. Rugged IP67 and IK10 ratings ensure durability in harsh conditions.

Suitable for

• Perimeter security for critical infrastructure
• Fire prevention in industrial facilities
• Temperature monitoring in warehouses
• Outdoor surveillance in extreme weather

Key specifications

• Thermal sensor: Uncooled VOx Microbolometer, 256x192, 12μm pitch
• Thermal lens: 2.7mm fixed, F1.0
• Visual sensor: 1/2.7" 4MP CMOS, 2688x1520
• Visual lens: 4mm fixed, F1.0
• IR distance: Up to 30m
• Video compression: H.265/H.264/MJPEG
• Max frame rate: 30fps (both channels)
• Network: 1x RJ-45 10/100 Base-T
• Power: 12V DC / PoE (802.3af), max 10.5W
• Storage: MicroSD up to 256GB
• Protection: IP67, IK10
• Operating temperature: -30°C to +60°C
• Smart functions: Fire detection, intrusion, tripwire, temperature measurement (-20°C to +150°C)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted in a location with clear line of sight for both thermal and visual lenses.
