Dahua V9H Type-C kit di collegamento diretto per dashcam – alimentazione modalità parcheggio

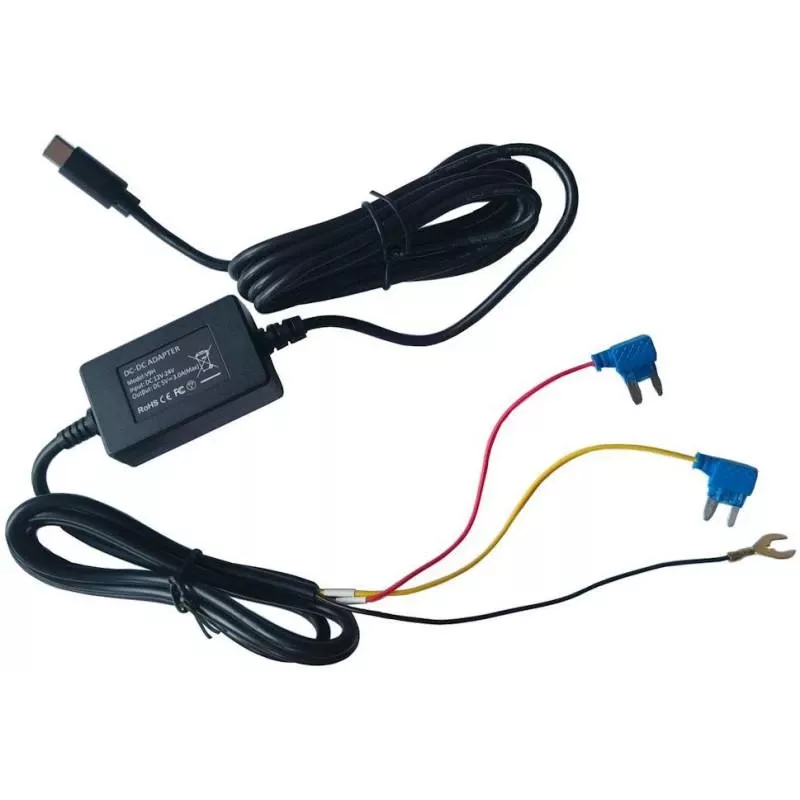

The Dahua V9H Type-C Hardwire Kit is a professional parking mode power supply designed to enable 24/7 surveillance for compatible Dahua dash cameras. This hardwire kit connects directly to your vehicle's fuse box, providing a constant power source while protecting your car battery from over-discharge. With selectable low-voltage cut-off and parking mode timer, you can customize the operation to suit your needs. The kit features a USB Type-C output connector and a 3-wire hardwire input (ACC, B+, GND) for easy installation.

Advantages

• Enables continuous parking surveillance mode for enhanced security
• Protects vehicle battery with selectable low-voltage cut-off (11.8V / 12.0V / 12.2V for 12V systems; 23.6V / 24.0V / 24.4V for 24V systems)
• Adjustable parking mode timer (6h / 12h / 24h / Continuous) for flexible operation
• Built-in overcurrent and short circuit protection for safe use
• Compatible with Dahua T5, T2, T3, T6 series dash cams with USB-C power input

Suitable for

• Dahua T5 series dash cameras
• Dahua T2, T3, T6 series dash cameras with USB-C power input
• Vehicles requiring 24/7 parking surveillance

Key specifications

• Product Type: Dash Cam Hardwire Kit
• Input Voltage: DC 12V / 24V
• Output Voltage: DC 5V
• Output Current: 2.5A (Max)
• Output Connector: USB Type-C
• Input Connection: 3-Wire Hardwire (ACC, B+, GND)
• Low Voltage Cut-off (12V System): Selectable (11.8V / 12.0V / 12.2V)
• Low Voltage Cut-off (24V System): Selectable (23.6V / 24.0V / 24.4V)
• Parking Mode Timer: Selectable (6h / 12h / 24h / Continuous)
• Cable Length: Approx. 3.5 meters
• Protection Features: Battery Discharge Prevention, Overcurrent Protection, Short Circuit Protection
• Fuse Type: Built-in Inline Fuse
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure your vehicle's fuse box is accessible and the dash cam is compatible with USB-C power input. Professional installation is recommended to avoid electrical issues.
