DEANTE Cassetta di Scarico a Incasso per WC a Parete - Dual Flush 4/2 L

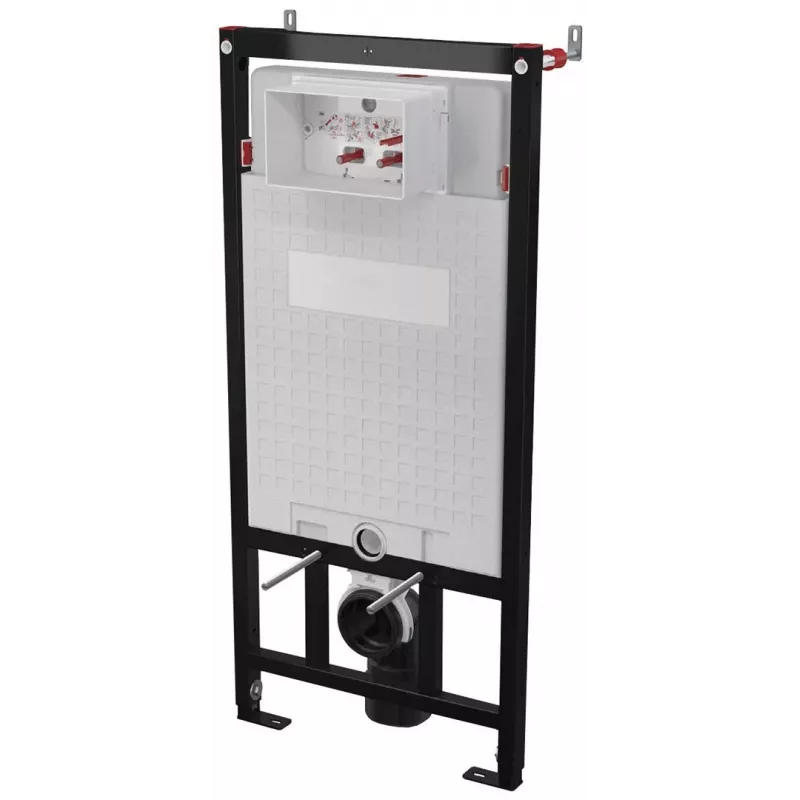

The DEANTE Concealed Frame for Wall-Hung Toilets is a robust and space-saving solution for modern bathrooms. Designed for both drywall and solid wall installations, this super-slim frame (115 mm depth) supports up to 400 kg and features a pneumatic dual flush system with 4/2 L water saving. The frame is made of powder-coated steel and includes anti-condensation insulation for long-lasting performance.

Advantages

Ultra-slim design saves valuable space behind the wall. Adjustable height (0-200 mm) allows perfect alignment with your toilet pan. Quiet operation with fill valve noise below 20 dB. Compatible with Cersanit pneumatic actuator plates (MOVI, ACCENTO, INTERA series).

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• Drywall and solid wall constructions
• Projects requiring water-saving dual flush systems

Key specifications

• Installation Type: Concealed, Wall-Hung
• Flush System: Pneumatic
• Flush Volume: Dual Flush 4/2 L
• Frame Depth: 115 mm (Super Slim)
• Frame Material: Powder-coated Steel
• Load Capacity: Up to 400 kg
• Adjustable Height: Yes (0-200 mm)
• Water Connection: Top/Side G1/2"
• Noise Level: Ultra-quiet fill valve (<20 dB)
• Anti-condensation Insulation: Yes
• Toilet Pan Mounting Distance: 180 mm or 230 mm
• Actuator Plate Compatibility: Cersanit pneumatic series (e.g., MOVI, ACCENTO, INTERA)
• Application: Drywall and Solid Wall
• Outlet Pipe Diameter: 90/110 mm
• Water Saving Feature: Yes (Dual Flush)
• Frame Width: 500 mm
• Frame Height: 1120 mm

Recommendations

For optimal performance, pair with a compatible Cersanit pneumatic actuator plate and a wall-hung toilet pan. Ensure professional installation to meet load and plumbing requirements.
