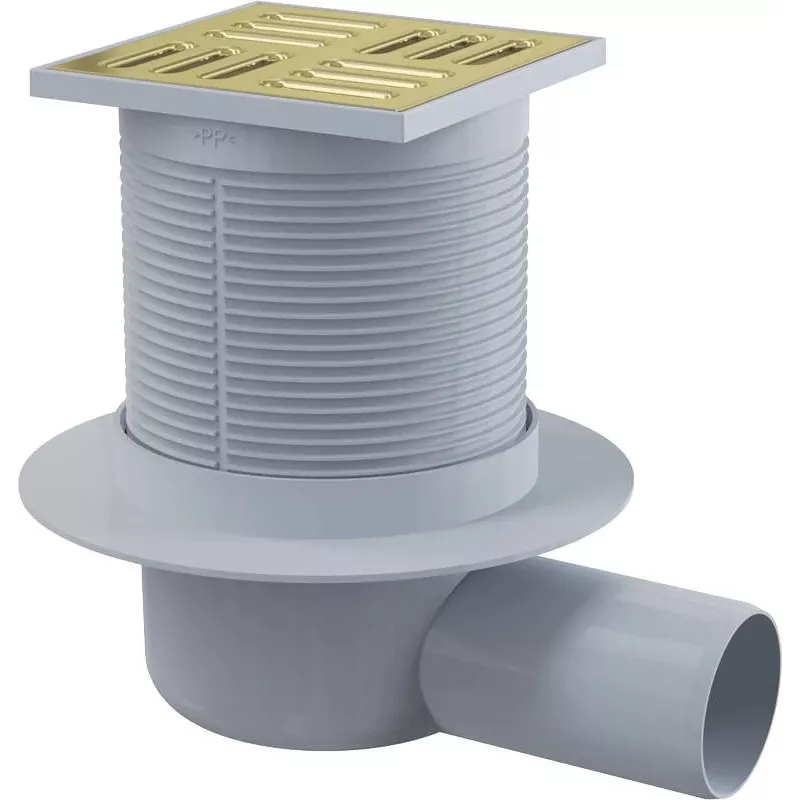

DEANTE Piletta a pavimento - griglia acciaio inox 150x150 mm K3

The DEANTE Point Drain - Grate is a high-quality floor drain designed for indoor wet rooms, showers, and utility rooms. Featuring a stainless steel grate and a durable polypropylene body, this drain offers reliable water drainage with an integrated water trap and removable siphon for easy cleaning. The adjustable installation height and multi-size outlet (DN 50/70/100) provide flexibility for various plumbing configurations. Suitable for use with waterproofing membranes, it meets EN 1253 standards and is frost-resistant.

Advantages

Stainless steel grate ensures long-lasting durability and a modern look. Integrated odor and dirt trap maintain hygiene. Adjustable height simplifies installation. K3 load class supports up to 300 kg, making it suitable for residential use.

Suitable for

• Shower floors
• Utility rooms
• Wet rooms
• Indoor drainage applications

Key specifications

• Product Type: Floor Drain / Point Drain
• Grate Material: Stainless Steel
• Grate Dimensions: 150 x 150 mm
• Drain Body Material: Polypropylene (PP)
• Outlet Diameter: DN 50 / DN 70 / DN 100 (Multi-size)
• Outlet Type: Horizontal
• Water Trap: Integrated, Removable Siphon
• Flow Rate: Approx. 1.8 L/s (with 20mm water head)
• Load Class: K3 (max. 300 kg)
• Installation Height: Adjustable, approx. 100 - 150 mm
• Sealing Flange: Integrated, for waterproofing membranes
• Grate Design: Slotted
• Application Area: Indoor, Wet Rooms, Showers, Utility Rooms
• Odor Trap: Yes
• Dirt Trap: Yes
• Standards: EN 1253
• Frost Resistance: Yes
• Height Adjustment: Yes (Grate and Frame)

Recommendations

Ensure compatibility with your plumbing system by selecting the appropriate outlet size. Professional installation recommended for optimal performance.
