DEANTE Telaio da incasso per WC sospesi con aspirazione odori/condensa

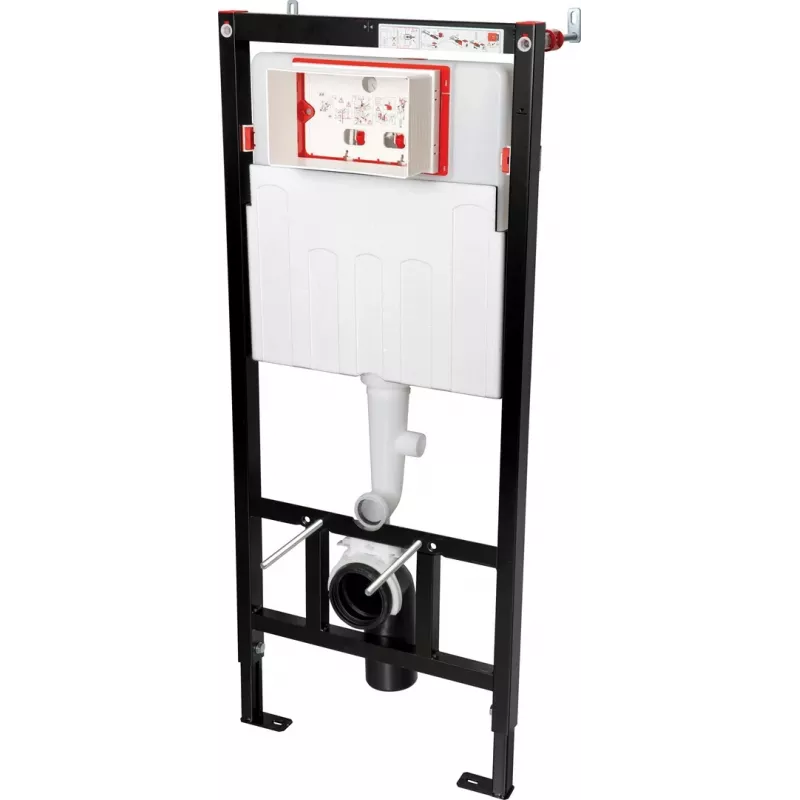

The DEANTE Concealed Frame for Wall-Hung Toilets with Odour/Condensate Extraction is a high-quality, self-supporting steel frame designed for drywall construction. It integrates a Geberit Sigma 8 cm cistern (UP720) and an advanced odour extraction system, providing a complete solution for modern bathrooms. The frame is fully insulated against condensation and features sound-absorbing push rods for quiet operation.

Advantages

This concealed frame offers exceptional load capacity up to 400 kg, adjustable flush volumes (large: 4.5/6/7.5 L, small: 3/4 L), and an integrated odour extraction unit powered by 230 V AC. The height-adjustable design (0-20 cm) allows flexible installation, while the powder-coated steel construction ensures durability and corrosion resistance.

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• New builds and renovations requiring concealed cisterns
• Projects needing integrated odour extraction for improved air quality
• Drywall construction with floor-mounted installation

Key specifications

• Product Type: Concealed WC Frame
• Cistern Type: Geberit Sigma 8 cm (UP720)
• Flush Volume (Factory Setting): 6 / 3 litres
• Adjustable Flush Volume: Yes (Large flush 4.5 / 6 / 7.5 L, Small flush 3 / 4 L)
• Frame Material: Powder-coated steel
• Load Capacity: Up to 400 kg
• Water Connection: R 1/2" with integrated angle stop valve
• Waste Connection: DN 90 / 100 mm
• Actuation: Front actuation
• Compatible Flush Plates: Geberit Sigma series
• Insulation: Fully insulated against condensation
• Power Supply for Odour Extraction: 230 V AC
• Sound Insulation: Yes, with sound-absorbing push rod
• Installation Type: Drywall construction, floor-mounted
• Height Adjustment: 0-20 cm
• Water Temperature Range: 4-40 °C
• Self-Supporting: Yes

Recommendations

For optimal performance, pair this frame with a Geberit Sigma series flush plate and a compatible wall-hung toilet. Ensure professional installation by a qualified plumber to guarantee proper function and compliance with local regulations.
