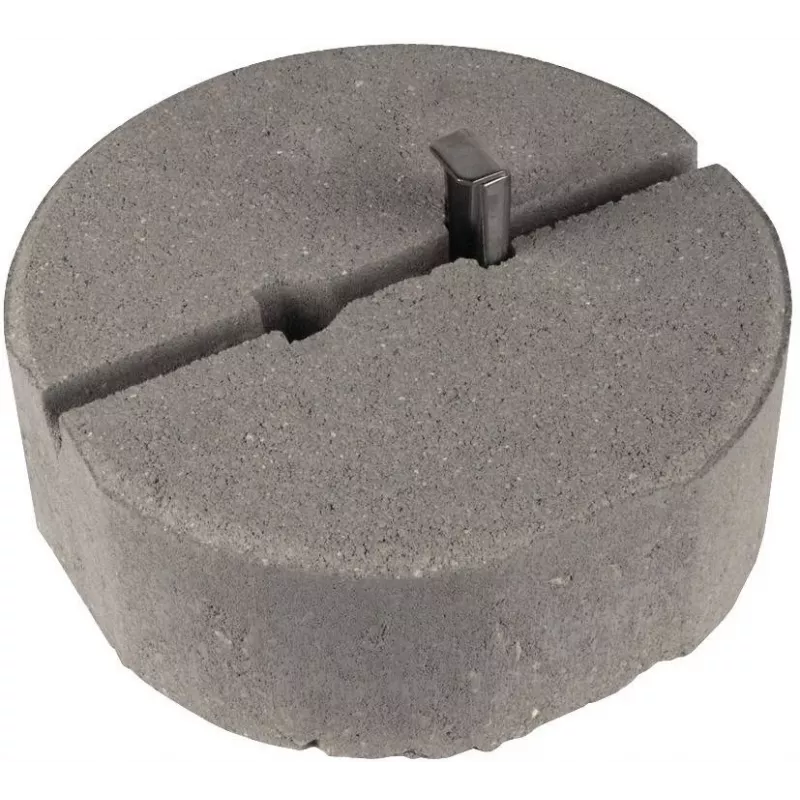

DEHN 102075 basamento in calcestruzzo C45/55 con cuneo per captatori

On flat roofs, lightning protection installers need a stable, non-penetrating mount for air-termination rods. The DEHN 102075 concrete base provides a free-standing ballast solution, holding rods up to 16 mm diameter securely with its integrated wedge.

Key specifications

• Material: Concrete C45/55
• Integrated wedge for rod securing
• Compatible with rod diameter up to 16 mm
• Mounting: Free-standing, ballast weight
• Application: Flat roofs
• Weather resistance: UV-stabilized, frost-resistant
• Colour: Grey (natural concrete)

Why choose it

This base eliminates roof penetration, preserving waterproofing while meeting EN 62305-3 requirements. Its high durability and resistance to environmental influences ensure long-term reliability.

Ideal use cases

• Lightning protection systems on flat roofs
• Securing air-termination rods without drilling
• Outdoor installations requiring ballast weight

Good to know

The base is part of the DEHN Betonsockel series, designed for integration into lightning protection systems.
