DEHN 253050 supporto per conduttore su tetto FB2 per tetti piani

For flat-roof lightning protection, the DEHN 253050 Roof Conductor Holder FB2 offers a non-penetrating, free-standing solution that securely routes conductors without compromising the roof membrane. Its concrete base and UV-stabilized polyamide holder ensure long-term durability in outdoor conditions.

Overview

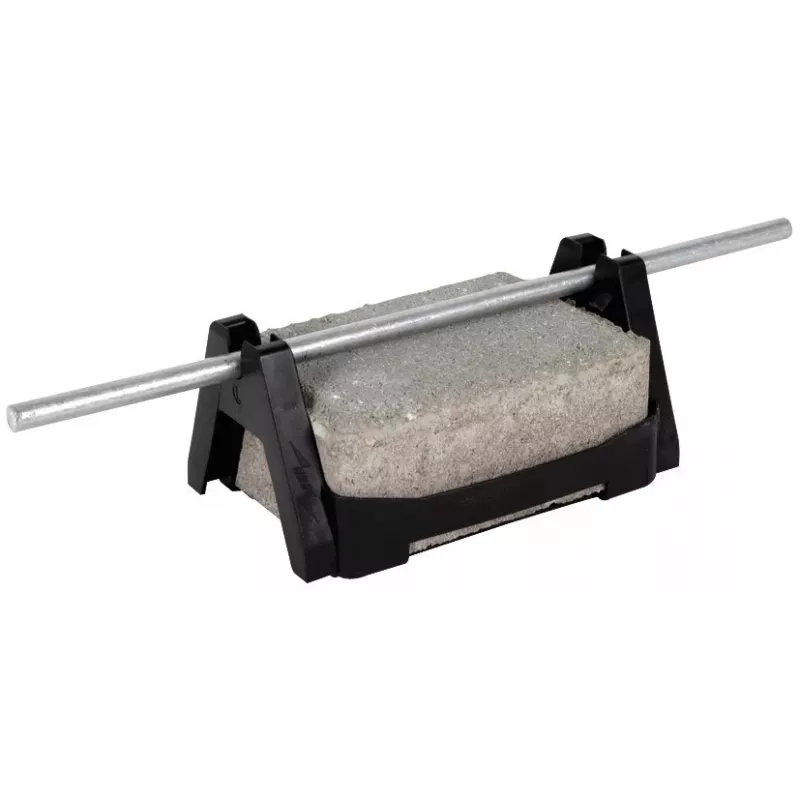

The DEHN 253050 Roof Conductor Holder FB2 is designed for flat roofs, providing a stable and weather-resistant support for lightning protection conductors. The holder accommodates round conductors with a diameter of 8 to 10 mm, keeping them elevated at a height of 110 mm above the roof surface. The base measures 200 x 200 mm and is made of concrete, offering sufficient weight to withstand wind loads without the need for roof penetration. The conductor support is crafted from UV-stabilized polyamide, ensuring resistance to sunlight and temperature extremes ranging from -30 °C to +80 °C.

What stands out

• Non-penetrating installation preserves roof integrity
• Concrete base provides stability without additional fastening
• UV-stabilized polyamide holder resists weathering
• Compatible with 8-10 mm round conductors
• Suitable for temperatures from -30 °C to +80 °C

Technical details

• Product Type: Roof Conductor Holder
• Application: Flat Roofs
• Mounting Type: Free-standing, Non-penetrating
• Conductor Diameter Compatibility: Rd 8-10 mm
• Material (Holder): UV-stabilized Polyamide (PA)
• Material (Base): Concrete
• Height (Conductor Support): 110 mm
• Base Dimensions (L x W): 200 x 200 mm
• UV Resistance: Yes
• Weather Resistance: Yes
• Temperature Range: -30 °C to +80 °C
• Color (Holder): Grey
• Color (Base): Concrete Grey
• Standard Compliance: EN 62561-1
• Function: Secure routing of lightning protection conductors
• Installation Method: Without roof penetration

Our verdict

A robust and reliable choice for flat-roof lightning protection, the DEHN 253050 combines a heavy concrete base with a UV-resistant holder to ensure conductors stay securely in place for years, all without drilling into the roof.
