DEHN 274116 supporto per tondino in acciaio inox per conduttore tondo 16 mm

Stainless steel rod holder for secure fastening of 16 mm round conductors in lightning protection and earthing systems.

Overview

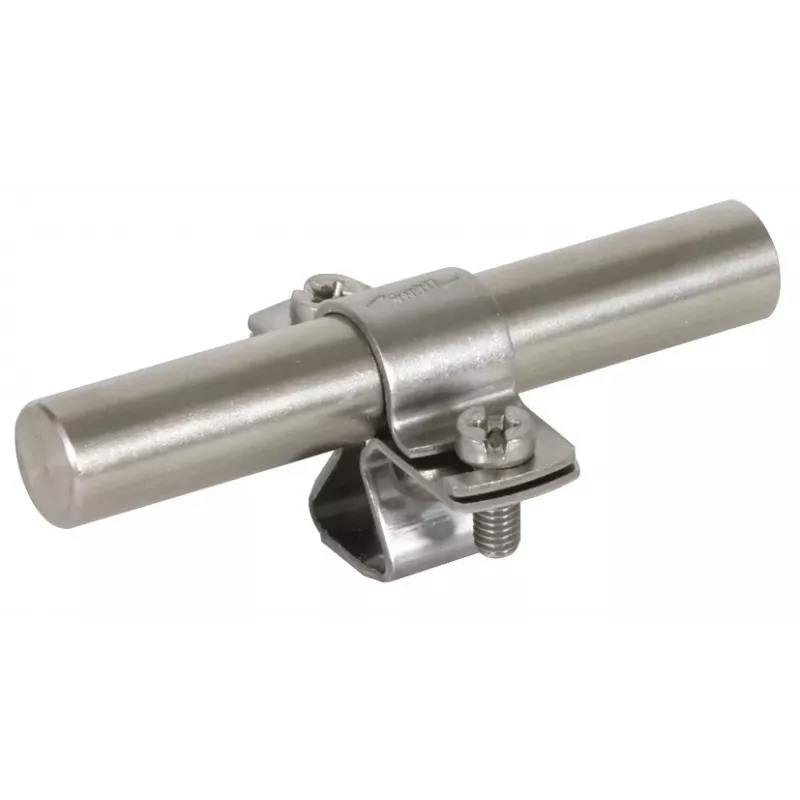

The DEHN 274116 is a robust rod holder made of stainless steel (NIRO), designed to clamp a single round conductor with a diameter of 16 mm. It is suitable for both indoor and outdoor installations and provides excellent corrosion resistance and durability.

What stands out

• High-grade stainless steel construction ensures long-term reliability even in harsh environments
• Compatible with 16 mm round conductors commonly used in lightning protection
• Compact design with two fastening holes for secure screw mounting

Technical details

• Material: Stainless steel (NIRO)
• Conductor type: Round conductor
• Conductor diameter: 16 mm
• Mounting method: Screw mounting
• Number of conductors held: 1
• Base plate dimensions: 40 x 40 mm
• Overall height: Approx. 30 mm
• Fastening holes: 2
• Operating temperature range: -40 °C to +100 °C
• Corrosion resistance: Very high
• UV resistance: Very high
• Application area: Lightning protection systems, earthing systems, industrial installations

Our verdict

A dependable stainless steel rod holder that meets the demanding requirements of lightning protection installations, offering excellent corrosion resistance and easy mounting.
