DEHN 318033 connettore a croce per conduttore piatto 30x3-4mm, acciaio zincato a caldo

For lightning protection and earthing systems, this DEHN cross connector joins two flat conductors at a 90-degree angle, supporting conductor widths of 30 mm and thicknesses of 3 to 4 mm. The hot-dip galvanized steel construction ensures long-term corrosion resistance in outdoor and indoor environments.

Overview

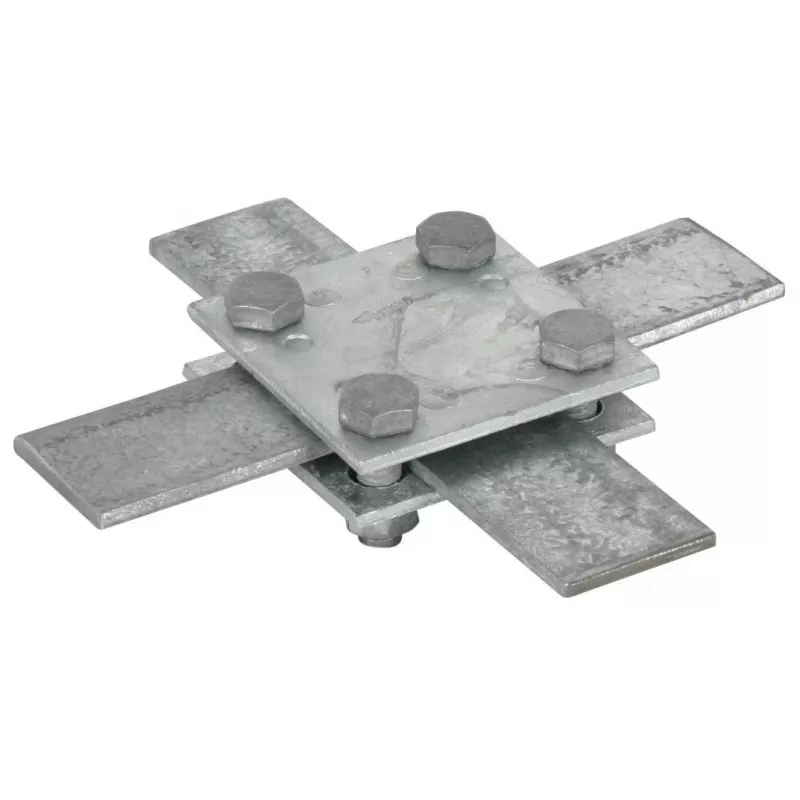

The DEHN 318033 is a cross connector designed for flat conductors in lightning protection and earthing installations. It provides a reliable 90-degree connection between two flat conductors, ensuring electrical continuity and mechanical stability. The connector is made from steel with a hot-dip galvanized finish, offering durability and corrosion protection.

What stands out

• Compatible with flat conductors 30 mm wide and 3–4 mm thick
• Hot-dip galvanized steel for corrosion resistance
• 90-degree cross connection for versatile installation
• Complies with DIN EN 62561-1 for lightning protection components
• Suitable for outdoor and indoor use

Technical details

• Material: Steel, hot-dip galvanized (St/tZn)
• Conductor type: Flat conductor
• Conductor width: 30 mm
• Conductor thickness: 3–4 mm
• Connection type: Cross connection (90°)
• Number of conductors: 2
• Screw size: M8
• Corrosion class: III (per EN 62561-1)
• Mounting type: Surface mounting

Our verdict

A robust and reliable cross connector for flat conductors, meeting the requirements of lightning protection standards with its hot-dip galvanized finish and precise compatibility.
