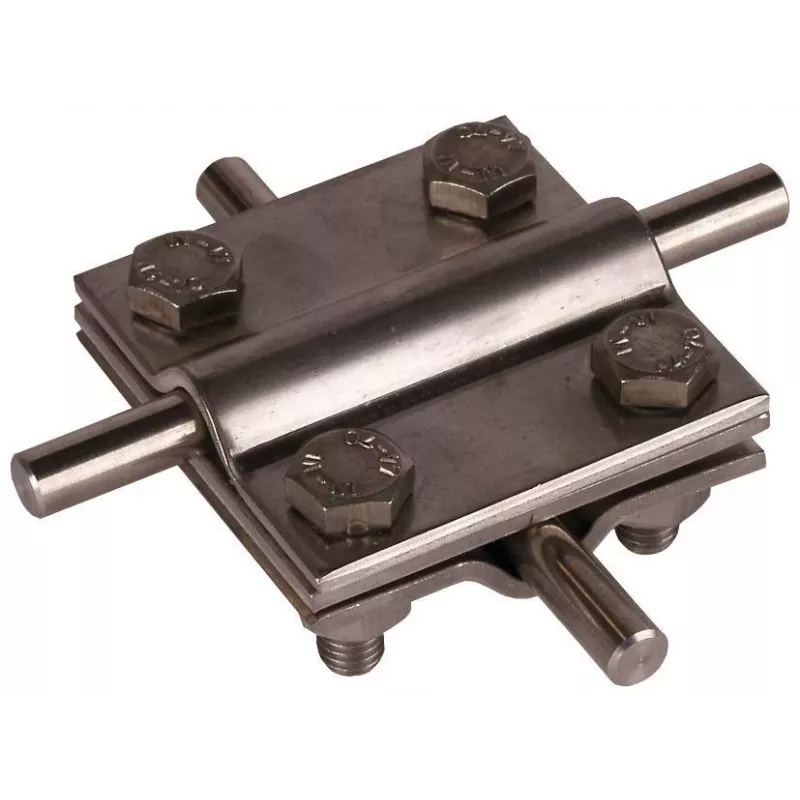

DEHN 319209 connettore a croce con piastra intermedia, acciaio inox V4A

Lightning protection installers use the DEHN 319209 cross connector to join four conductors in a cross configuration on building facades and roof structures. The stainless steel V4A body with intermediate plate ensures reliable, corrosion-resistant connections in outdoor and aggressive environments.

Key specifications

• Material: Stainless steel V4A (1.4571 / 1.4404)
• Conductor compatibility: Round Rd 8-10 mm, flat up to 30 mm
• Design: With intermediate plate
• Number of conductor connections: 4
• Mounting type: Surface mount
• Corrosion resistance: Very high, suitable for aggressive environments
• Environmental suitability: Outdoor, industrial, chemical, coastal
• UV resistance: Yes
• Temperature range: -40 °C to +100 °C
• Screw type: Hexagon head screws M8, stainless steel
• Saltwater resistance: Yes
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)

Why choose it

The V4A stainless steel construction withstands harsh weather, salt spray and chemical exposure, making it ideal for lightning protection systems in demanding locations. The intermediate plate simplifies installation and ensures secure clamping of conductors.

Ideal use cases

• Lightning protection systems on buildings
• Earthing and equipotential bonding
• Industrial plants, chemical facilities, coastal installations

Good to know

Compliant with DIN EN 62561-1, this cross connector meets the requirements for lightning protection components. Its surface mount design allows direct attachment to structures.
