DEHN elemento di separazione per conduttore tondo Rd 16, 8-10 mm, alluminio - 450001

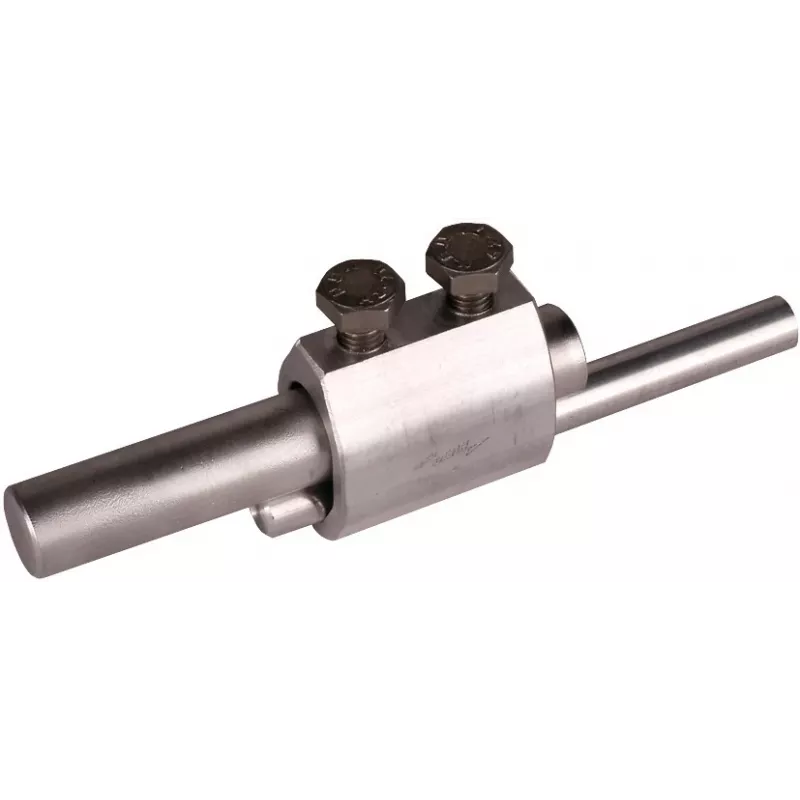

The DEHN 450001 separation sleeve provides a reliable, corrosion-resistant connection point for round conductors in lightning protection and earthing systems. Its aluminum body with stainless steel screws ensures long-term stability even in outdoor environments, preventing contact corrosion between dissimilar metals.

Highlights

• Compatible with round conductors (Rd) with diameter 8–10 mm
• Nominal cross-section: 16 mm²
• Aluminum body with stainless steel (V2A) screws
• Provides electrical isolation and prevents contact corrosion
• Meets EN 62561-1 for lightning protection components

In daily use

Installers appreciate the screw clamp connection, which allows quick and secure joining of two round conductors without special tools. The sleeve is suitable for both indoor and outdoor use, with high UV and corrosion resistance ensuring durability in harsh conditions.

Full specifications

• Product type: Separation sleeve / isolating connector
• Conductor type: Round conductor (Rd)
• Conductor diameter range: 8 - 10 mm
• Nominal cross-section: 16 mm²
• Material (body): Aluminum (Al)
• Material (screws): Stainless steel (V2A)
• Connection method: Screw clamp
• Number of connectable conductors: 2
• Standard compliance: EN 62561-1
• Installation environment: Outdoor / indoor
• Corrosion resistance: High
• UV resistance: Yes
• Colour: Metallic (aluminum)

Final note

Ideal for creating durable, corrosion-free connections in lightning protection systems where dissimilar metals must be isolated.
