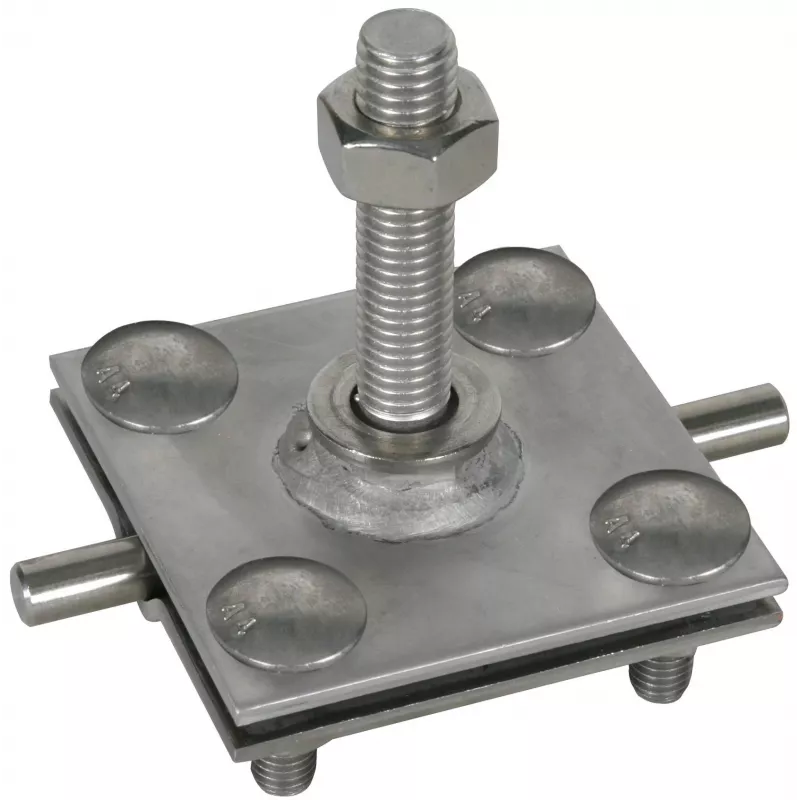

DEHN Morsetto di collegamento V4A per tondo 7-10 mm / piatto 30-40 mm 478149

Connection clamp made of stainless steel V4A (1.4571) for connecting round conductors 7-10 mm and flat conductors 30-40 mm in lightning protection and earthing systems. Supports cross, parallel, and T-connections with high corrosion resistance for outdoor and aggressive environments.

Advantages

High corrosion resistance due to V4A stainless steel. Suitable for multiple conductor types and connection configurations. Withstands lightning currents up to 100 kA (10/350 µs).

Suitable for

• Lightning protection systems
• Earthing and bonding applications
• Outdoor and aggressive environments

Key specifications

• Material: Stainless steel V4A (1.4571)
• Round conductor range: 7-10 mm
• Flat conductor range: 30-40 mm
• Connection types: cross, parallel, T-connection
• Screw: hexagon M8, tightening torque 20 Nm
• Lightning current capability: 100 kA (10/350 µs)
• Power frequency current: 100 A (50 Hz)

Recommendations

Use in corrosive environments where long-term reliability is required. Verify conductor dimensions before installation.
