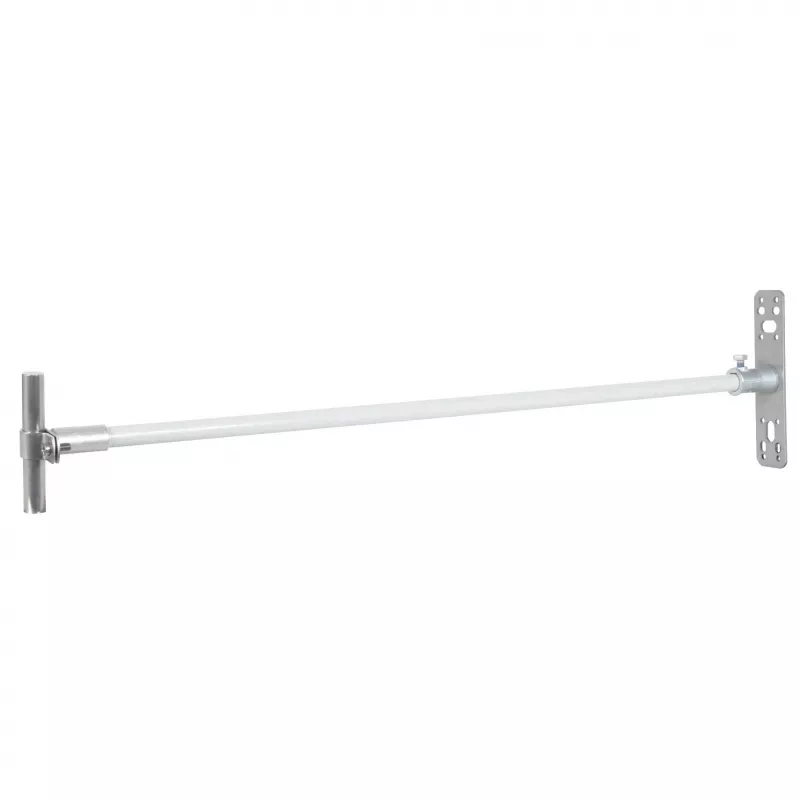

DEHN + SOEHNE distanziale isolante 106120 DEHNiso (106120)

The DEHNiso 106120 insulating spacer provides a fixed separation distance of 75 mm between lightning protection conductors and conductive parts, ensuring compliance with IEC 62305-3 without the need for complex calculations. Its UV-stabilized polyamide construction withstands harsh weather, while the M10 screw base allows secure mounting on flat surfaces.

Highlights

• Maintains 75 mm separation distance for external lightning protection
• UV-stabilized polyamide (PA 6.6 GF) for long-term outdoor use
• Compatible with round conductors 8–10 mm diameter
• M10 screw mounting for reliable installation

In daily use

Install the spacer on roofs, facades, or other structures to keep lightning conductors at a safe distance from metal parts. Its grey RAL 7035 colour blends with common building materials, and the robust design resists impact and temperature extremes from -50 °C to +100 °C.

Full specifications

• Product type: Insulating spacer
• Separation distance: 75 mm
• Material: UV-stabilized polyamide (PA 6.6 GF)
• Colour: Grey (RAL 7035)
• Mounting type: Screw mounting (base)
• Mounting thread size: M10
• Conductor compatibility: Round conductors, 8–10 mm diameter
• Overall height: 100 mm
• Base diameter: 45 mm
• Operating temperature range: -50 °C to +100 °C
• Standard compliance: IEC 62305-3, VDE 0185-305-3

Final note

DEHNiso spacers are engineered for reliable separation in lightning protection systems, ensuring safety and durability in demanding environments.
