DELL 407-BCBN modulo ricetrasmettitore di rete fibra ottica 10000 Mbit/s SFP+ 850 nm

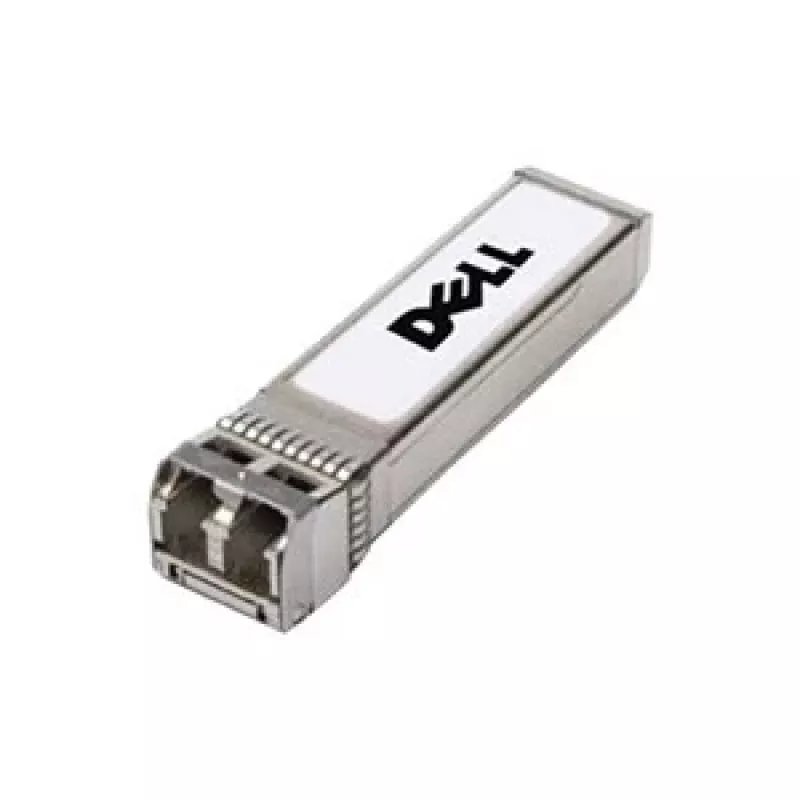

The Dell C5RNH fiber optic transceiver module provides 10GbE connectivity for extending network reach over multimode fiber. This hot-pluggable SFP+ transceiver operates at 850 nm and supports a maximum data transfer rate of 10000 Mbit/s. The stainless steel housing and SFP+ footprint make it compatible with a range of Dell PowerEdge servers and networking equipment, delivering reliable fiber connectivity for high-speed data transmission.

Advantages

The Dell C5RNH supports 10GBase-SR transmission over multimode fiber with a compact SFP+ form factor and hot-pluggable design for easy installation and replacement. It includes an enhanced digital diagnostic monitoring interface that provides real-time access to operating parameters such as transceiver temperature, laser bias current, transmitted and received optical power, and supply voltage, allowing straightforward status monitoring and troubleshooting.

Suitable for

• 10 Gigabit Ethernet links over multimode fiber (short-reach)
• Upgrading or expanding Dell PowerEdge server network ports
• Data center rack connections and server-to-switch links
• Environments requiring hot-swappable fiber transceivers

Key specifications

• Form factor: SFP+
• Data rate: 10000 Mbit/s (10GbE)
• Wavelength: 850 nm
• Digital diagnostic monitoring: Enhanced DDM
• Product colour / housing: Stainless steel
• Manufacturer part number (MPN): 407-BCBN
• EAN: 5397184186930

How to use

Insert the Dell C5RNH SFP+ transceiver into an available SFP+ port on a compatible switch or server while the device is powered on or off, as supported by the host (hot-pluggable). Connect the multimode fiber cable with the appropriate LC connector to the transceiver. Monitor link status through the host device and, if needed, read diagnostic parameters via the enhanced digital diagnostic monitoring interface to verify temperature, optical power and other operating values.

Recommendations

Use multimode fiber rated for short-reach 10GbE (OM3/OM4 recommended) and LC duplex connectors. Verify host compatibility with the Dell C5RNH (MPN 407-BCBN) and follow standard ESD precautions when handling the transceiver. For reliable diagnostics, access the host management interface or compatible monitoring tools to read the DDM values.
