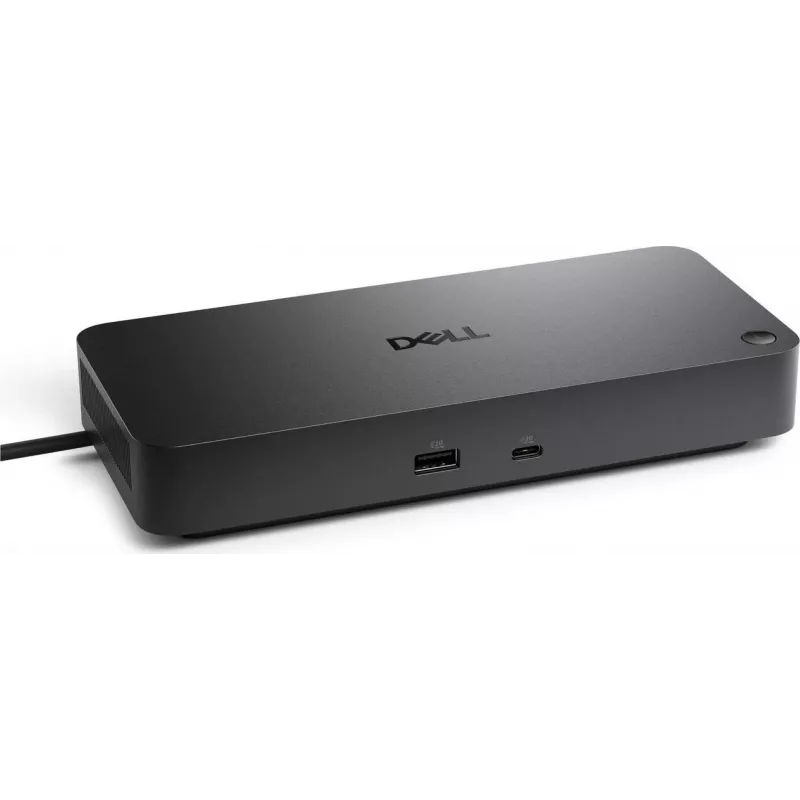

Dell Pro Thunderbolt 5 Dock WD25TB5 – 140W Power Delivery, triplo display 8K, 2.5GbE

At a high-performance workstation, a creative professional connects a laptop to the Dell Pro Thunderbolt 5 Dock WD25TB5 and instantly gains a multi-monitor setup, fast wired networking, and device charging through a single cable. This dock leverages Thunderbolt 5 technology to deliver up to 80 Gbps data transfer, enabling smooth 8K video output and rapid file transfers. It provides 140W power delivery to the host, keeping the laptop charged under heavy load. The dock supports up to three external displays, with configurations including dual 8K at 60Hz or triple 4K at 120Hz, making it ideal for data analysis, content creation, and financial trading. A 2.5 Gigabit Ethernet port ensures reliable high-speed network connectivity, while multiple USB ports accommodate peripherals. The included 240W AC adapter powers the dock and connected devices. Security is enhanced with a Kensington lock slot, and IT management features like PXE boot, Wake-on-LAN, and MAC address pass-through simplify deployment.

Key specifications

• Host interface: Thunderbolt 5 (up to 80 Gbps)
• Power delivery to host: 140W
• Video outputs: 2x DisplayPort 2.1, 1x HDMI 2.1
• Max displays: 3 (up to 8K @ 60Hz single, dual 8K @ 60Hz or 4K @ 120Hz, triple 4K @ 120Hz)
• Downstream ports: 1x Thunderbolt 5 (20W PD), 1x USB-C 3.2 Gen 2 (15W PD), 2x USB-C 3.2 Gen 2, 3x USB-A 3.2 Gen 1
• Network: 2.5 Gigabit Ethernet
• Audio: 3.5mm combo jack
• Security: Kensington lock slot
• Power adapter: 240W AC

Why choose it

Thunderbolt 5 connectivity future-proofs your workspace with unmatched bandwidth for high-resolution displays and fast data access. The 140W power delivery supports demanding laptops, eliminating the need for a separate charger. Triple display support boosts productivity for multitasking, while the 2.5GbE port ensures lag-free network performance. Compact and robust, it simplifies cable management and enhances desk organization.

Ideal use cases

• Professional workstations for video editing, 3D rendering, and CAD
• Financial trading desks requiring multiple monitors and low-latency network
• IT-managed corporate environments needing PXE boot and remote management
• Home offices with high-performance laptops and multiple peripherals

Good to know

The dock is compatible with Windows 10/11 and macOS. It includes a 240W power adapter and a Thunderbolt 5 cable for host connection. The Kensington lock slot allows physical security in shared spaces. For optimal performance, ensure your laptop supports Thunderbolt 5 or USB4 with Power Delivery.
