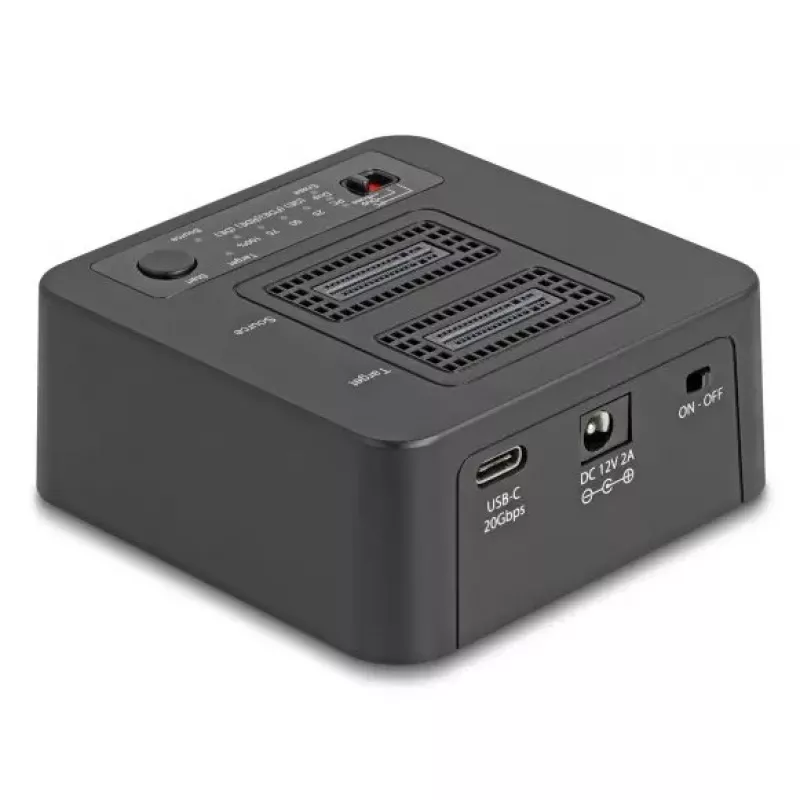

DeLOCK 64300 docking station USB 3.2 Gen 2 Type-C nero SSD PCIe M.2

The DeLOCK 64300 is a USB 3.2 Gen 2 Type-C docking station for two M.2 PCIe NVMe SSDs. It connects to a PC or laptop via the supplied USB-C cable and supports data transfer rates up to 20 Gbit/s. The compact, tool-free design allows quick insertion and removal of drives and makes the unit suitable for drive testing and temporary use.

Advantages

The docking station supports two M.2 PCIe NVMe SSDs and offers a high-speed USB 3.2 Gen 2 Type-C connection. It includes a clone function that copies data from one SSD to another without a computer, and an erase function that securely deletes one or both drives with selectable erase modes. The housing is robust and enables tool-free installation, allowing fast drive replacement.

Suitable for (tasks / use cases)

• Data cloning between two M.2 NVMe SSDs without a PC
• Secure erasure of one or both NVMe drives
• Drive testing, benchmarking and temporary access to M.2 SSDs
• Connecting NVMe SSDs to laptops or desktops via USB-C

Key specifications

• Model: DeLOCK 64300
• Interface to host: USB 3.2 Gen 2 Type-C (supplied cable)
• Supported drives: 2× M.2 PCIe NVMe SSDs
• Maximum transfer rate: up to 20 Gbit/s
• Functions: clone (standalone), erase (standalone) with multiple erase modes
• Compatibility: Windows, Linux, macOS (as supported by USB mass storage)

How to use

Open the housing and insert the M.2 PCIe NVMe SSDs into the slots, then close the housing. Connect the docking station to a free USB-C port on the computer using the included USB cable for regular data access. To use the clone or erase functions without a PC, follow the device controls and indicators as described in the product manual to select the desired operation and start it directly from the unit.

Recommendations

For reliable operation, use compatible M.2 PCIe NVMe SSDs and a USB-C port that supports USB 3.2 Gen 2 to achieve the stated transfer rates. Follow the manual for erase procedures and verify important data is backed up before using the erase or clone functions.
