DeLOCK 80520 Cavo sensore/attuatore 2 m RST M12 nero

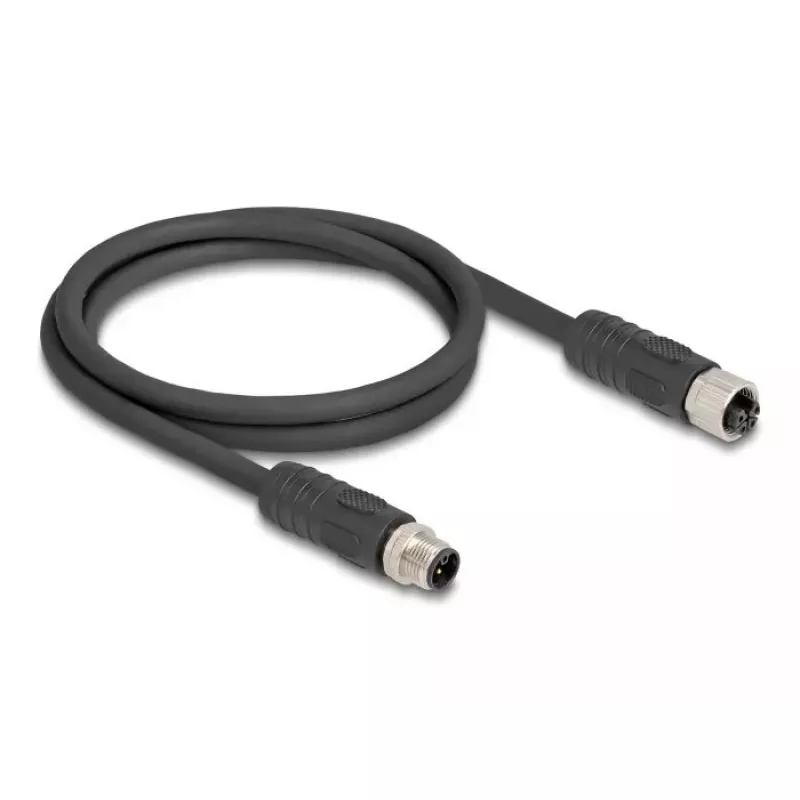

The DeLOCK 80520 sensor/actuator cable is a 2 m long M12-to-M12 cable with RST coding, intended for direct current applications in industrial environments. The L-coded (RST) M12 connector provides four power contacts rated for 12 A at 63 V, enabling reliable transmission of higher currents at low voltage to field devices, power supplies, machines and motors.

Advantages

The cable’s L-coded M12 connectors ensure standardized pin assignment and safe power transmission. With a rated current of 12 A per contact and a compact M12 form factor, the DeLOCK 80520 supports space-saving installation while providing robust electrical connections. Its 2 m length offers flexibility for common machine and fieldbus layouts.

Suitable for

• Powering fieldbus components and sensors
• Connecting actuators and industrial motors
• Supplying compact power units and controllers
• Short-distance power distribution in factory automation

Key specifications

• Brand: DELOCK
• Model / MPN: 80520
• EAN: 4043619805204

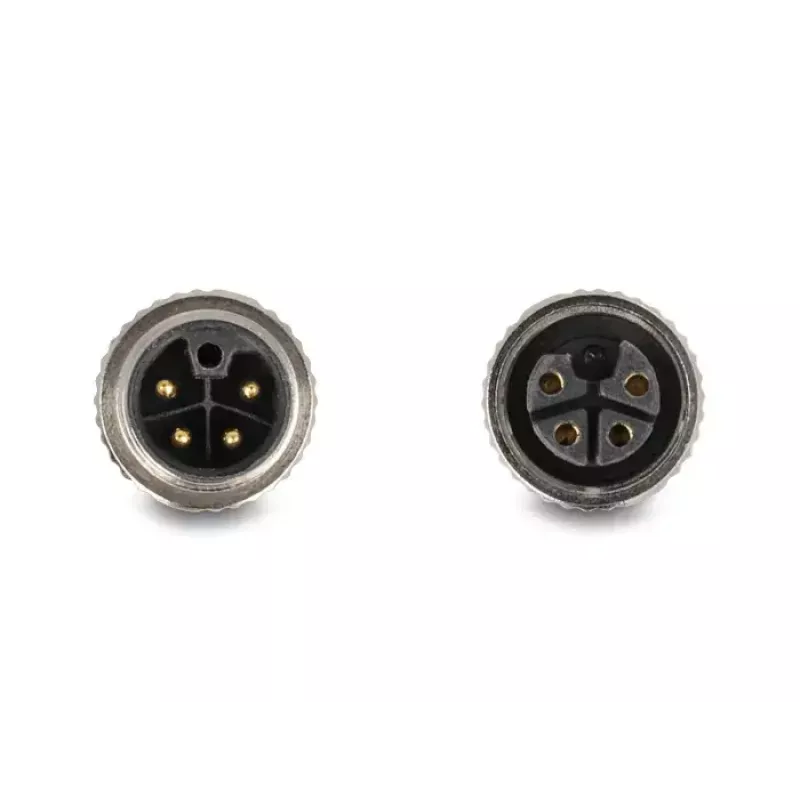

• Connector 1: M12 (L-coded / RST)
• Connector 2: M12 (L-coded / RST)
• Contacts: 4 power contacts
• Rated current: 12 A
• Rated voltage: 63 V

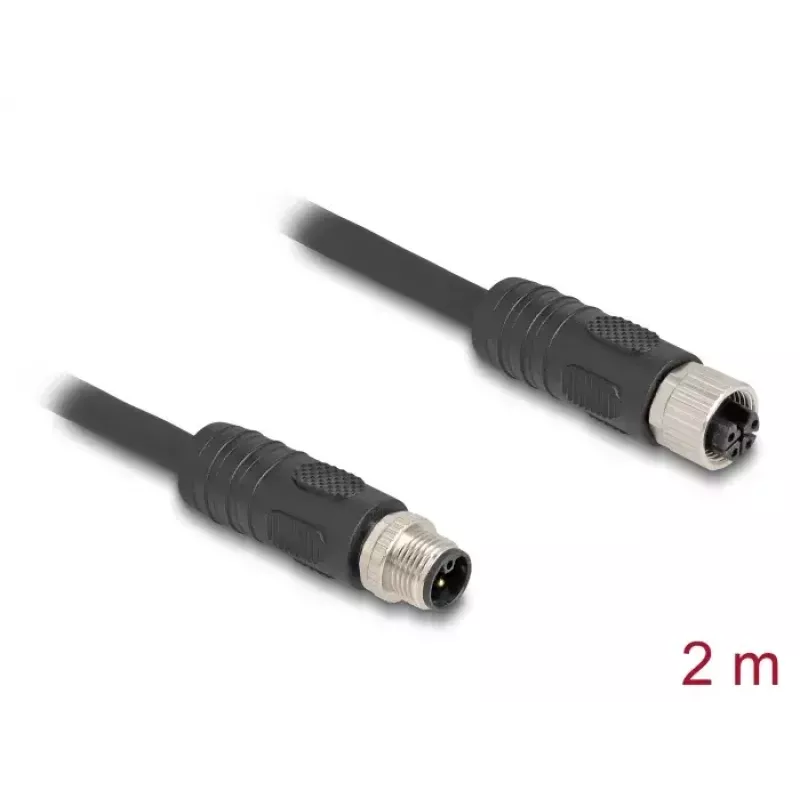

• Cable length: 2 m
• Color: Black

How to use

Connect each M12 connector to the appropriate M12 socket on the device and the power source, ensuring the L-coding aligns with the mating connector to maintain correct pin assignments. Verify voltage and current requirements of the connected equipment before applying power. Secure connectors by tightening them according to the device manufacturer’s instructions to maintain a stable electrical and mechanical connection.

Recommendations

Use the DeLOCK 80520 for applications that require low-voltage, high-current connections over short distances. Avoid exceeding the specified 12 A / 63 V ratings and protect the cable from mechanical strain, sharp bends and exposure to fluids or extreme temperatures to ensure reliable long-term operation.
