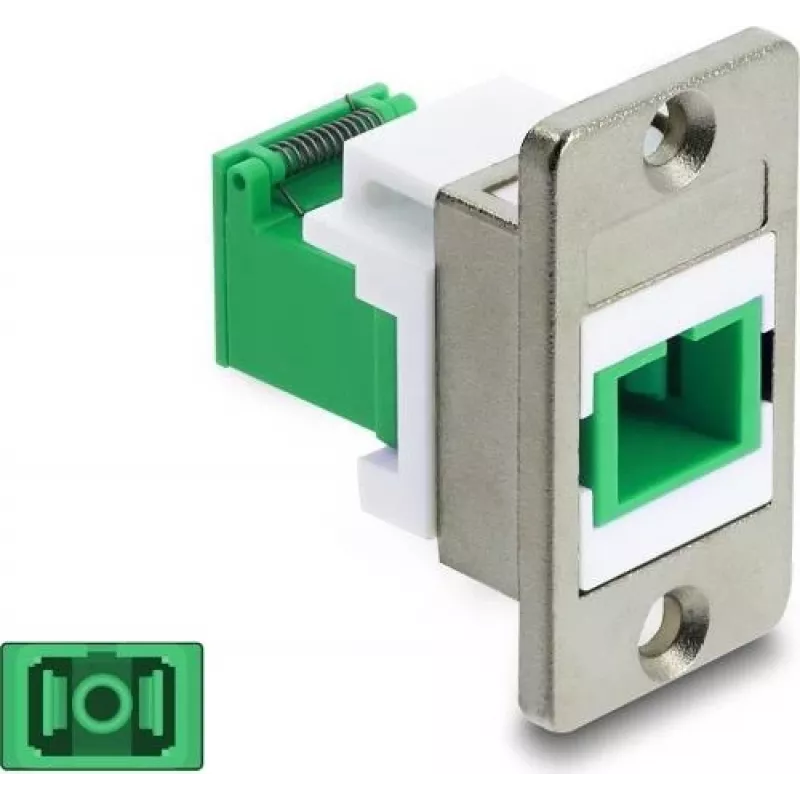

Delock Adattatore SC simplex per montaggio a pannello con sportello di protezione laser 91104

Fibre optic connections exposed on patch panels or wall outlets are vulnerable to dust, damage, and stray laser light. The Delock 91104 SC simplex coupler solves this by providing a secure panel-mount connection point with an integrated laser protection flap that automatically shields the port when not in use.

Who is it for

Network installers and data centre technicians who need a reliable, panel-mountable SC simplex adapter for fibre optic patching. Ideal for structured cabling in offices, industrial environments, and telecom rooms where safety and cleanliness are priorities.

Main features

• SC simplex female to SC simplex female coupler for panel mounting
• Integrated laser protection flap prevents accidental exposure and dust ingress
• Durable metal housing with silver finish for long-term reliability
• D-type flange with mounting hole dimensions 24 x 19 mm
• Supports both multimode and singlemode fibres (OM1-OM4, OS1/OS2)
• Low insertion loss of less than 0.3 dB for optimal signal integrity
• High mating cycles (>500) for repeated connections

Specifications

• Connector type (side 1): SC simplex female
• Connector type (side 2): SC simplex female
• Adapter type: Simplex
• Mounting type: Panel mount, D-type flange
• Housing material: Metal
• Housing colour: Silver
• Flange dimensions: 31 x 26 mm
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -20 °C to 70 °C
• Fibre compatibility: Multimode (OM1, OM2, OM3, OM4) and Singlemode (OS1, OS2)
• Insertion loss (typical): < 0.3 dB
• Mating cycles: > 500
• Compliance: RoHS, REACH

Tips

For best performance, clean the connector end faces before each mating. The laser protection flap closes automatically when the connector is removed, keeping the adapter free from contaminants and protecting eyes from harmful laser radiation.
