Delock cassetto estraibile 5,25" per 8 x 2,5" HDD/SSD SATA o SAS con serratura

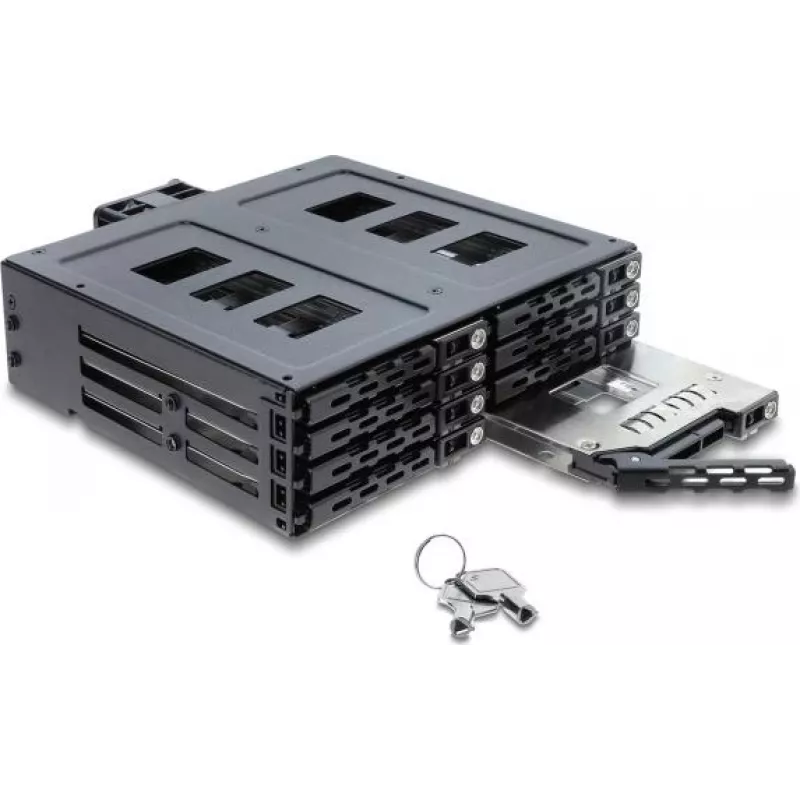

The Delock 5.25" Wechselrahmen (mobile rack) allows you to install up to eight 2.5" SATA or SAS hard drives or SSDs into a single 5.25" external drive bay. With hot-swap support and a key lock for security, this rack is ideal for high-density storage in servers or workstations.

Advantages

High storage density: eight drives in one 5.25" bay. Hot-swap capability allows drive replacement without powering down. Key lock prevents unauthorized removal. Two 40 mm fans provide active cooling for reliable operation.

Suitable for

• Expanding storage capacity in a desktop PC or server
• Using multiple SSDs or HDDs for RAID arrays (RAID depends on host controller)
• Applications requiring frequent drive swapping or secure drive removal

Key specifications

• External bay size: 1 x 5.25"
• Internal drive size: 8 x 2.5"
• Drive interface: SATA I/II/III, SAS I/II/III
• Host interface: 2 x SFF-8643 (Mini SAS HD)
• Max data transfer rate: 12 Gb/s (SAS), 6 Gb/s (SATA)
• Hot-swap: Yes
• Security: Key lock
• Cooling: 2 x 40 mm fan
• Power connector: 2 x 4-pin Molex
• Material: Metal
• LED indicators: Power, HDD activity
• Max drive height: 9.5 mm
• Color: Black

Recommendations

Ensure your system has a free 5.25" external bay and a compatible SAS/SATA host controller with SFF-8643 connectors. The rack requires two Molex power connectors from the PSU.
