DeLOCK cavo da incasso M8 codifica A 4 poli connettore maschio 0,5 m

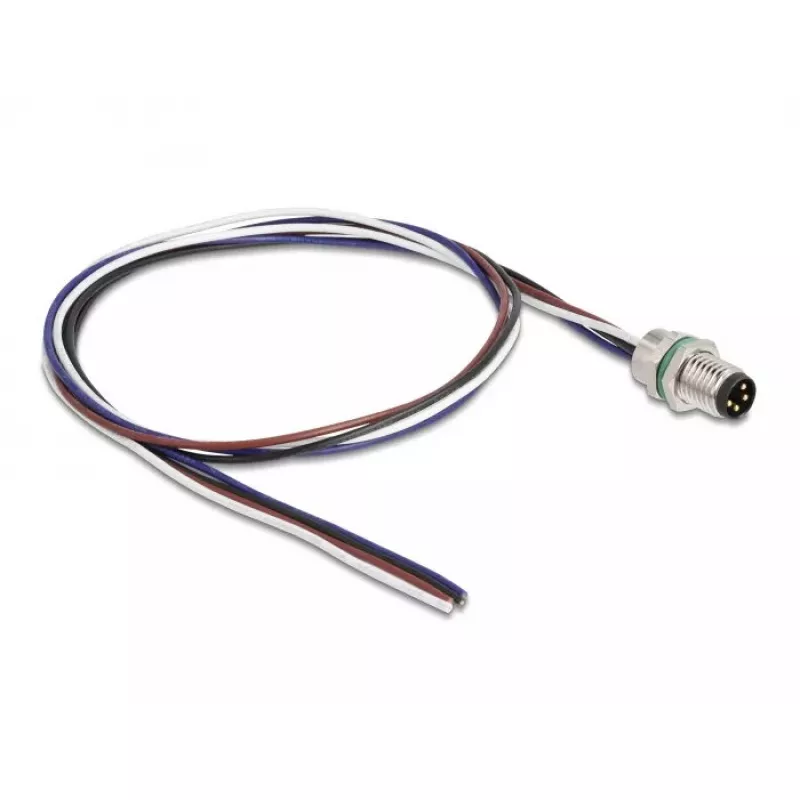

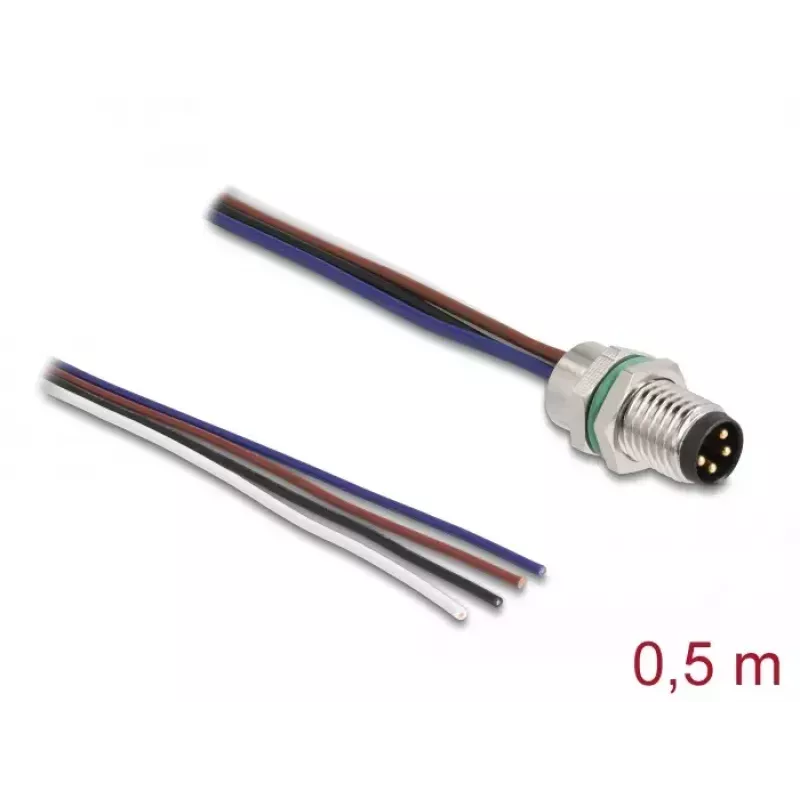

The DeLOCK M8 panel-mount cable A-coded 4 pin male 0.5 m is designed for front mounting in control panels and enclosures. It has an M8 A-coded 4-pin male connector on a 0.5 m cable with open cable ends, allowing direct wiring to other components or terminal blocks for machine control and automation applications.

Advantages

This industrial installation cable provides a standard A-coded M8 connection ensuring compatibility with devices that use M8 sensor and actuator interfaces. The panel-mount design secures the connector at the front of a panel for a fixed installation, while the open cable ends allow flexible wiring and easy termination. The 0.5 m length offers a compact connection suitable for short runs inside control cabinets.

Suitable for

• Connecting sensors and actuators with M8 A-coded 4-pin ports
• Front panel mounting in control cabinets and machinery
• Machine control and industrial automation wiring

Key specifications

• Brand: DELOCK
• Model: 80149
• Connector: M8 A-coded, 4-pin, male
• Mounting: panel-front mount
• Cable length: 0.5 m
• Cable ends: open (stripped) for termination
• EAN: 4043619801497

How to use

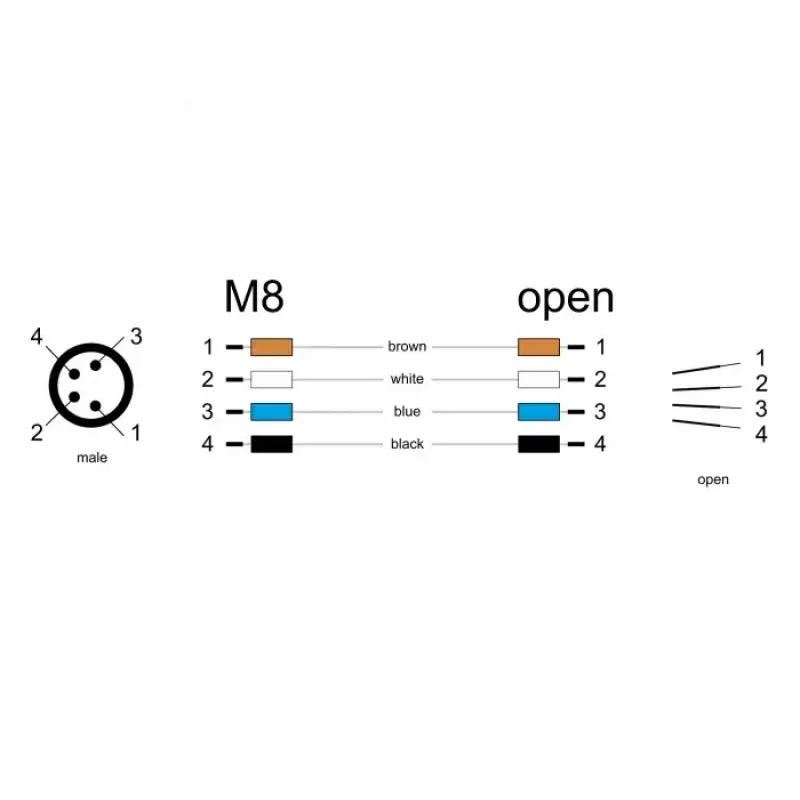

Install the connector into the panel cut-out and secure it according to the panel mounting method. Route the cable inside the enclosure and terminate the open cable ends to the corresponding wires of the control system or terminal block following the device wiring diagram. Ensure correct pin assignment for the A-coded 4-pin M8 connector and tighten connections to the required torque where applicable.

Recommendations

Use suitable strain relief and cable routing inside control cabinets to prevent mechanical stress on the connector. Verify compatibility with connected devices that require an M8 A-coded 4-pin interface and follow applicable industry wiring standards and safety regulations when performing installations.
