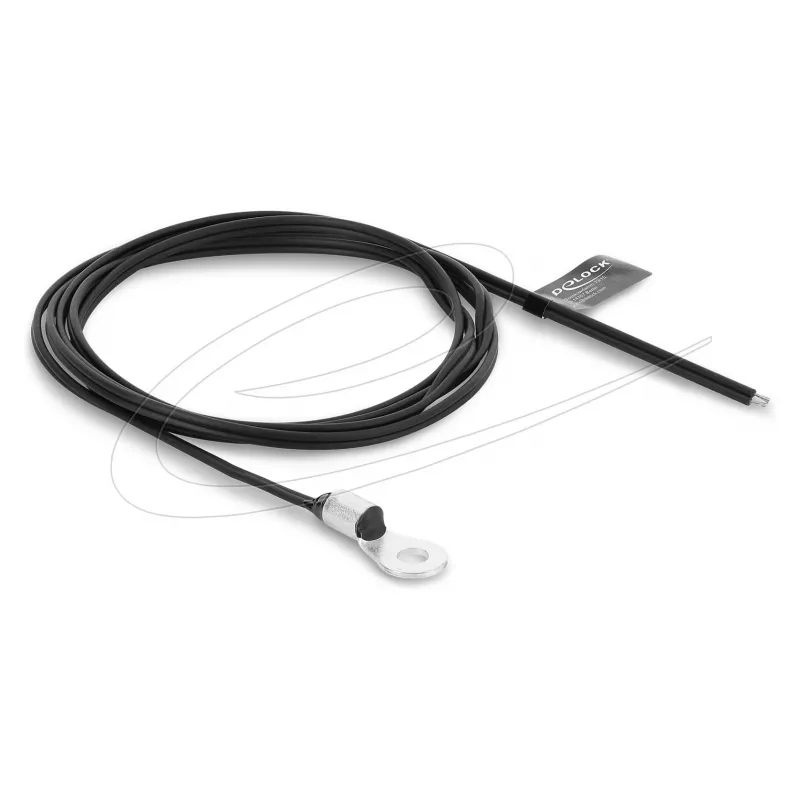

Delock cavo sensore di temperatura termistore NTC M4 filettato 10 kOhm 3977 K 1 m flat PVC 2 estremità aperte

Temperature sensor cable with M4 screw thread for precise NTC thermistor measurement, delivering reliable readings from -25 °C to 85 °C with a 10 kOhm resistance at 25 °C and B25/85 constant of 3977 K. The 1 m flat PVC cable ends in two open wires for flexible integration.

Advantages

Stainless steel M4 housing ensures durability and fast thermal response. The flat cable design allows easy routing in tight spaces, while the PVC jacket provides insulation and protection. High accuracy (±1% resistance tolerance) and wide operating range make it suitable for demanding environments.

Suitable for

• Industrial temperature monitoring and control systems
• HVAC equipment and building automation
• Laboratory and test instrumentation
• Embedded systems and IoT devices

Key specifications

• Sensor type: NTC thermistor, 10 kOhm at 25 °C
• B-constant: 3977 K (B25/85)
• Probe: M4 stainless steel, Ø 4 x 20 mm

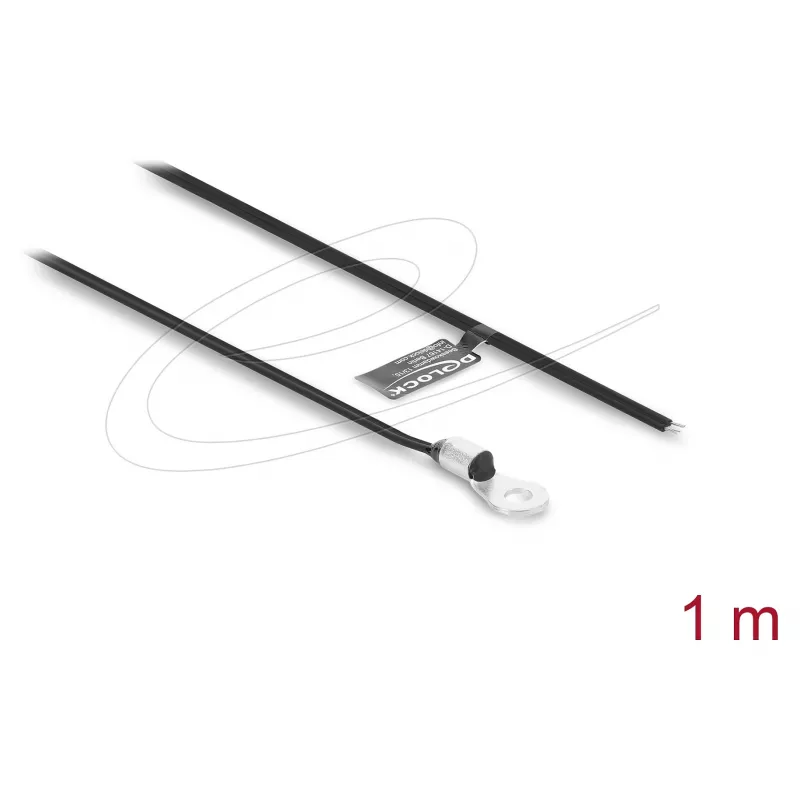

• Cable: 1 m flat PVC, 2 open wire ends
• Operating temperature: -25 °C to 85 °C
• Insulation resistance: >100 MOhm at 500 VDC
• Dielectric strength: 1500 VAC for 1 minute

Recommendations

Ideal for OEMs and technicians needing a robust, accurate temperature sensor with easy termination. Pair with a suitable controller or ADC for complete monitoring solutions.
