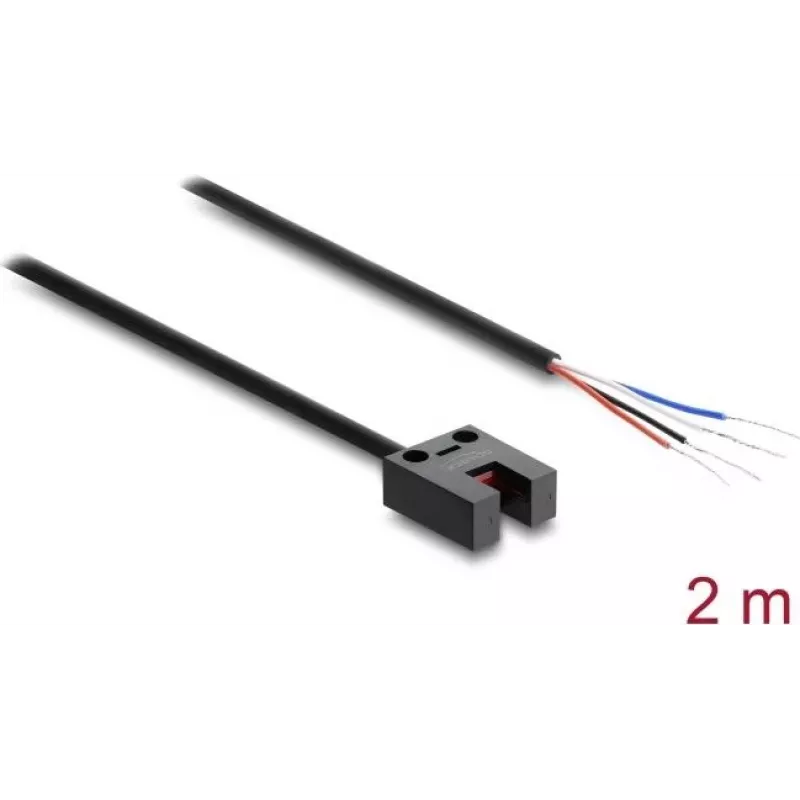

Delock Fotocellula a forcella 5 mm Type U con 4 terminali a cavo aperti NPN L/D selezionabile 2 m

Fork photoelectric sensor with a 5 mm gap, delivering high-speed through-beam detection with NPN open collector output and switchable Light-ON/Dark-ON logic. Its robust PBT housing and IP67 rating ensure reliable operation in demanding industrial environments.

Advantages

The compact fork design simplifies mounting and alignment, while the 5 kHz switching frequency and <0.1 ms response time enable precise detection of fast-moving objects. The L/D switchable output provides flexibility for integration into various control systems, and the short-circuit and reverse polarity protection enhance durability.

Suitable for

• Object detection in assembly lines and packaging machines
• Edge detection for printing and labeling equipment
• Position verification in automated handling systems
• Counting and sorting applications in material handling

Key specifications

• Sensor type: Fork photoelectric sensor, through-beam principle
• Gap width: 5 mm
• Output: NPN open collector, Light-ON/Dark-ON switchable
• Operating voltage: 10 - 30 V DC, max. output current 100 mA
• Switching frequency: 5 kHz, response time < 0.1 ms
• Light source: Infrared LED (880 nm)
• Connection: 4-wire cable with open ends, 2 m length
• Housing material: PBT, protection class IP67
• Operating temperature: -25 °C to 55 °C
• Indicators: Yellow LED (output), green LED (operation)

Recommendations

For high-speed, reliable object detection in tight spaces, pair this sensor with a 24 V DC power supply and a PLC input module. Ensure proper cable strain relief and avoid exposure to corrosive chemicals to maintain IP67 integrity.
