DeLOCK modulo Keystone 90886 piatto nero argento bianco DC 5,5 x 2,5

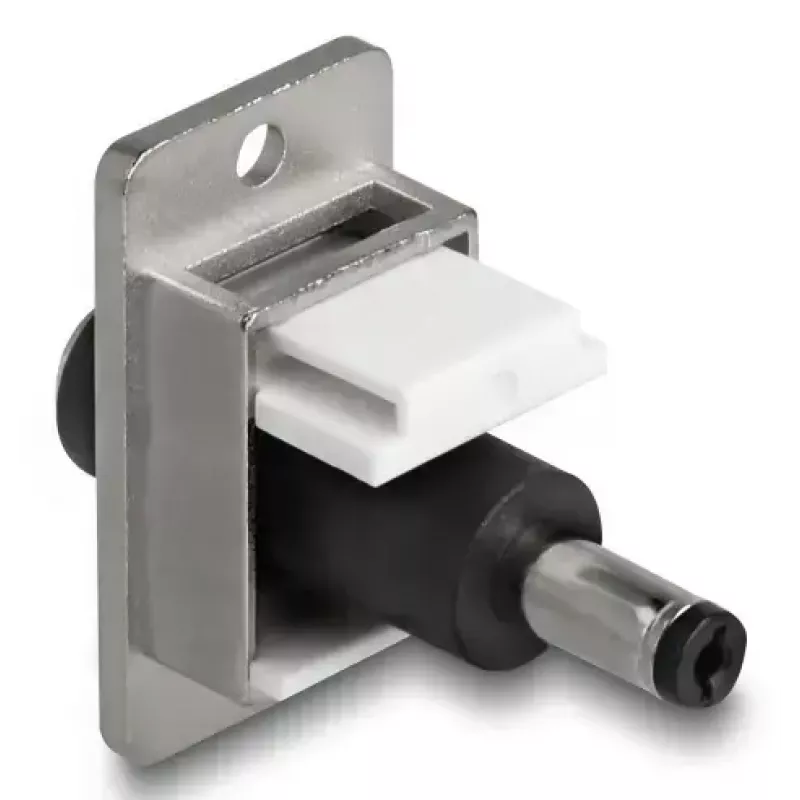

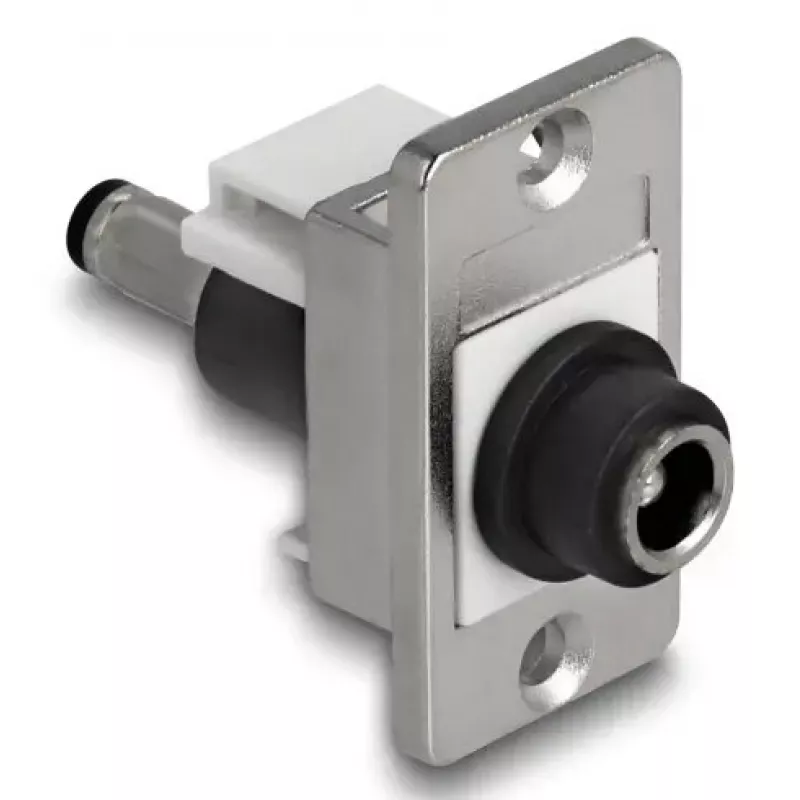

The DeLOCK keystone module 90886 is a flat DC female bulkhead connector designed for installation in housings or devices to provide a 5.5 x 2.5 mm DC power connection. Available in flat black, silver and white, the compact module (19 mm × 42.3 mm × 35.5 mm) fits standard keystone openings, allowing neat cable routing and secure mounting for low-voltage power supply.

Advantages

The keystone module offers a space-saving flat design and is compatible with standard keystone panels. Its 5.5 x 2.5 mm DC female connector provides a common interface for many external power adapters. Available in three colours, the module allows visual matching with enclosures or panels. The compact dimensions enable installation in confined spaces while maintaining easy access to the DC connector.

Suitable for

Key specifications

How to use

Mount the keystone module into a compatible keystone opening in the device housing or panel until it locks into place. From the rear side, connect the internal wiring to the DC female terminals according to the device's polarity and wiring requirements. From the front, the module accepts a standard 5.5 x 2.5 mm DC male plug for connecting an external power adapter. Verify polarity and voltage before applying power.

Recommendations

Use the module only with power adapters that match the device's required voltage and polarity. Ensure secure wiring and proper strain relief at the rear connection to avoid accidental disconnection or short circuits. Select the module colour that best fits the installation for a consistent appearance.
