Delock presa doppia da pannello USB 5 Gbps Type-A femmina + HDMI femmina 4K argento

Experience flawless 4K UHD at 60 Hz and 5 Gbps USB 3.2 Gen 1 data throughput from a single flush-mount panel socket. The Delock 91168 integrates a USB Type-A and an HDMI port into one compact unit, extending high-speed connections through walls, desks, or equipment panels with clean, professional results.

Overview

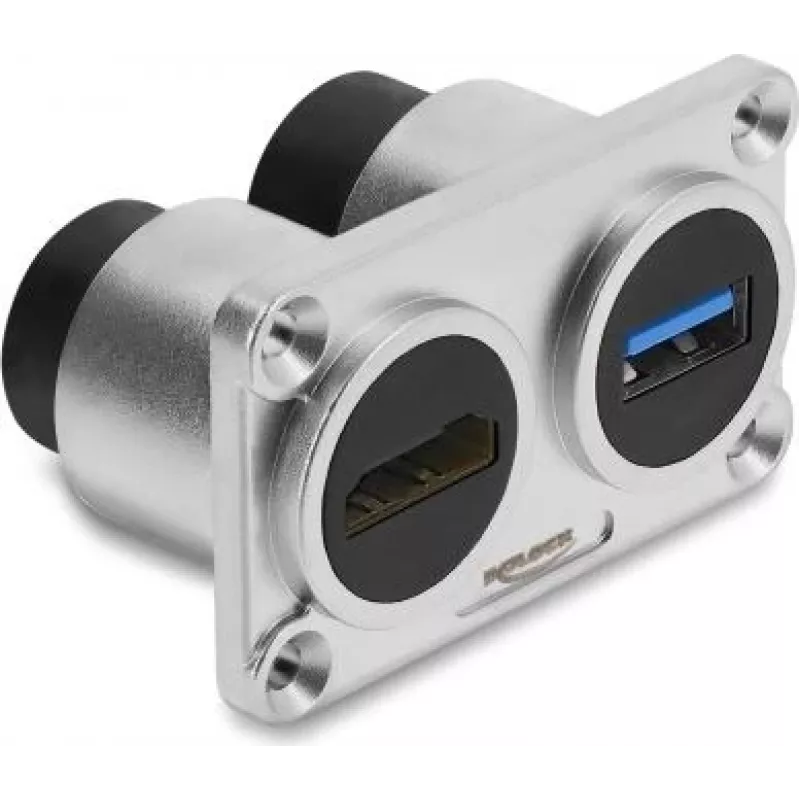

Engineered for professional AV and data installations, this dual panel mount socket combines a USB 3.2 Gen 1 Type-A female port and an HDMI female port in a durable nickel-plated brass housing. It is ideal for conference rooms, control stations, and custom AV furniture where reliable, flush-mounted connectivity is essential.

What stands out

• HDMI 2.0 supports 4K UHD resolution at 60 Hz for crisp, high-definition video.
• USB 3.2 Gen 1 port delivers data transfer speeds up to 5 Gbps, backward compatible with USB 2.0 and 1.1.
• Panel mount design with a standard 22 x 19.5 mm cutout and M3 screw holes spaced 25 mm apart for easy integration.
• Premium construction: nickel-plated brass housing and gold-plated contacts resist corrosion and ensure stable connections.
• Compact front panel (approx. 30 x 25 mm) with a sleek silver finish that blends into professional environments.

Technical details

• Connector 1: USB 3.2 Gen 1 Type-A female (5 Gbps)
• Connector 2: HDMI female (HDMI 2.0, up to 3840 x 2160 @ 60 Hz)
• Mounting type: Panel mount, screw-in
• Mounting hole dimensions: 22 x 19.5 mm
• Installation depth: approx. 30 mm
• Front panel dimensions: approx. 30 x 25 mm
• Screw type: M3, distance 25 mm (center to center)
• Housing material: nickel-plated brass
• Contact plating: gold-plated
• Colour: silver

Our verdict

With its robust build and dual high-speed connectivity, the Delock 91168 is a top choice for professional installations requiring a reliable, flush-mounted USB and HDMI solution.
