Delock Pulsante 16 mm 2 x morsetto a vite Momentaneo High

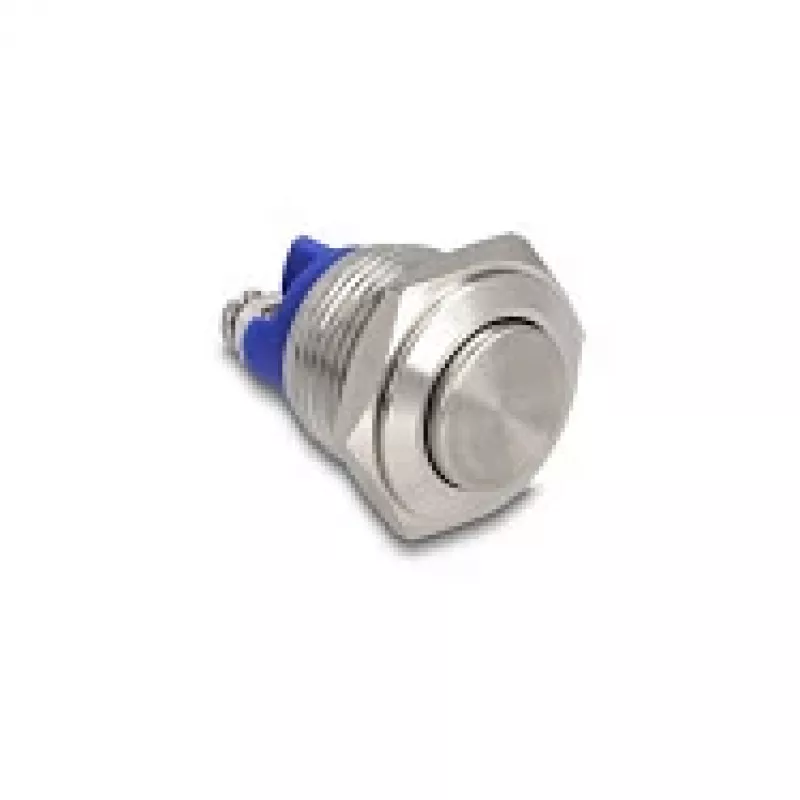

The Delock Push Button Switch 16 mm is a robust momentary switch designed for panel mounting. With a 16.2 mm mounting diameter and screw clamp terminals, it offers reliable and easy installation. The high actuator style provides tactile feedback, making it suitable for control panels, industrial equipment, and DIY projects.

Advantages

Momentary action ensures safe operation, while the IP65 front protection guards against dust and water jets. The silver alloy contacts guarantee long electrical life, and the plastic bezel provides durability.

Suitable for

• Control panels and industrial automation
• Machine tools and equipment
• DIY electronics and hobby projects
• Security systems and access control

Key specifications

• Product Type: Push Button Switch
• Actuator Type: Momentary (Non-latching)
• Mounting Diameter: 16.2 mm
• Contact Configuration: 1 Normally Closed (NC)
• Number of Terminals: 2
• Terminal Type: Screw Clamp Terminals
• Actuator Style: Extended (High)
• Actuator Color: Black
• Bezel Material: Plastic
• Contact Material: Silver Alloy
• Rated Insulation Voltage (Ui): 250 V AC
• Rated Operational Current (Ie): 3 A (at 250V AC)
• Rated Operational Voltage (Ue): 250 V AC / 24 V DC
• Degree of Protection (Front): IP65
• Mechanical Life: > 1 Million Operations
• Electrical Life: > 100,000 Operations
• Operating Temperature Range: -25°C to +70°C
• Panel Thickness Range: 1 - 6 mm
• Illumination: Non-illuminated
• Approvals: CE, UL, VDE

Recommendations

For optimal performance, ensure the panel thickness is between 1 and 6 mm. Use appropriate screw terminals for secure connections. This switch is ideal for momentary control applications where a high actuator is preferred.
