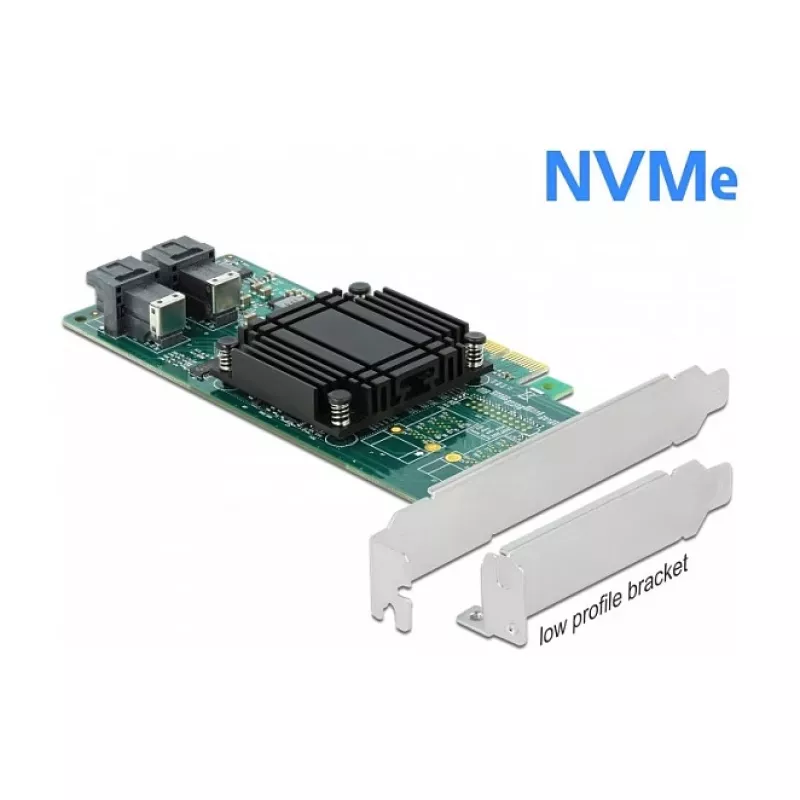

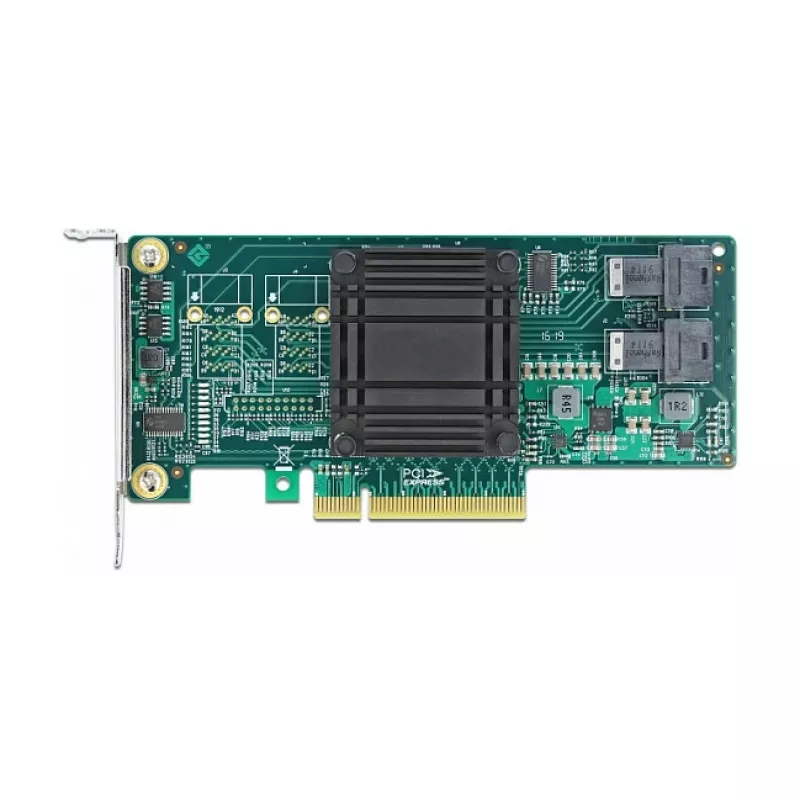

DeLOCK scheda PCI Express x8 su 2 x SFF-8643 NVMe interne formato low profile

This DeLOCK PCI Express x8 card adds two internal SFF-8643 NVMe ports to a PC, enabling connection of U.2 and other NVMe SSDs via appropriate cables. The card supports a maximum data transfer rate of 32 Gbit/s and is supplied in a low-profile form factor suitable for compact systems. It is compatible with Windows 10, 8.1 and 7 and is intended for expanding internal storage options in desktop and small-form-factor PCs.

Advantages

The card provides two internal Mini‑SAS HD (SFF‑8643) interfaces on a single PCIe x8 adapter, offering high-speed NVMe connectivity up to 32 Gbit/s. Its low-profile bracket allows installation in slim or compact chassis, while standard PCIe connectivity ensures broad motherboard compatibility. No additional external power or complex configuration is required beyond installing the card and connecting compatible drives with suitable cables.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express x8 (or larger) slot on the motherboard and secure it with the bracket screw. If required by your chassis, replace the full‑height bracket with the included low‑profile bracket. Connect NVMe/U.2 SSDs to the SFF‑8643 ports using appropriate SFF‑8643 to U.2 or SFF‑8643 cables (sold separately). Power on the system and verify BIOS/UEFI detection of the drives; then initialise and format the drives in the operating system as needed.

Recommendations

Use certified SFF‑8643 / U.2 cables and ensure your power supply and motherboard support the added drives. For RAID configurations or advanced controller features, consult your OS documentation or RAID controller software. Keep firmware and drivers up to date for optimal compatibility.
