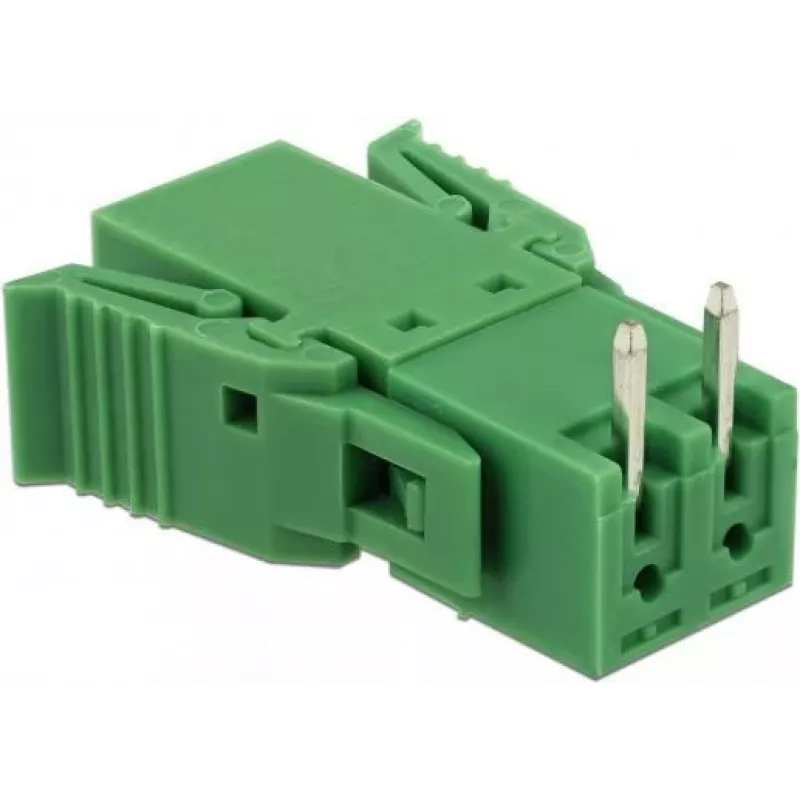

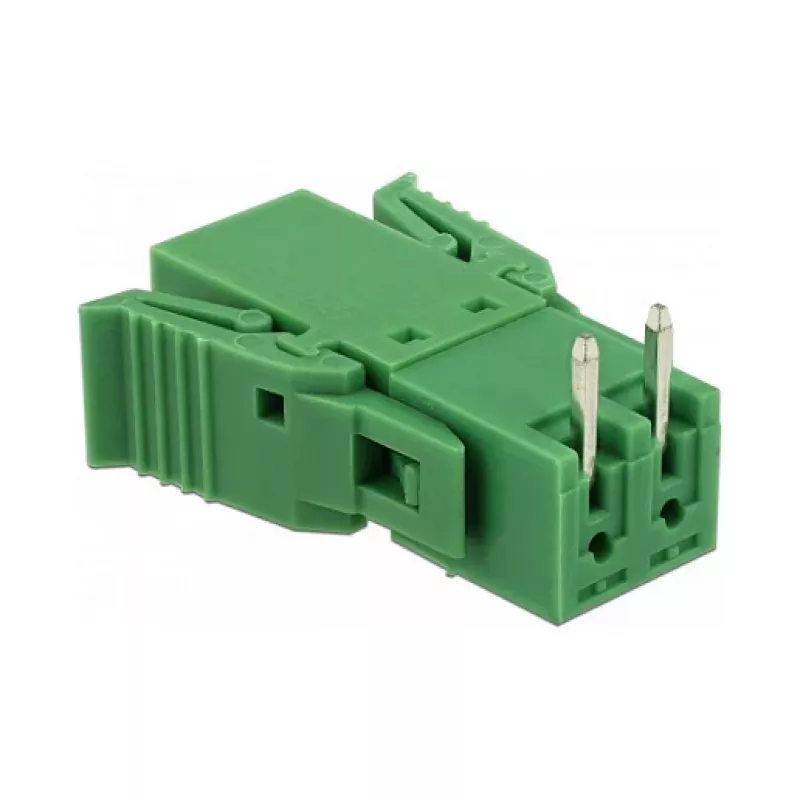

Delock set morsettiere per circuito stampato 2 poli passo 3,81 mm orizzontale 65952

For electronics engineers and PCB designers, this Delock terminal block set provides a reliable screw-terminal connection for two conductors on a printed circuit board. The horizontal wire entry and 3.81 mm pitch make it suitable for compact industrial control boards, automation modules, and prototyping projects where space is limited.

Key specifications

• Product type: PCB terminal block
• Number of pins: 2
• Pitch: 3.81 mm
• Mounting type: Through-hole technology (THT)
• Wire entry orientation: Horizontal
• Termination method: Screw terminal
• Rated voltage: 300 V
• Rated current: 8 A
• Wire gauge: 28 - 16 AWG
• Operating temperature: -40 °C to 105 °C
• Housing material: PA66
• Housing colour: Green
• Contact material: Brass, tin plated
• Screw material: Steel, zinc plated
• Quantity per set: 10 pieces

Why choose it

The set includes 10 terminal blocks, providing a cost-effective solution for small production runs or multiple prototypes. The green PA66 housing offers high mechanical strength and resistance to thermal deformation, while the brass contacts ensure good conductivity and corrosion resistance.

Ideal use cases

• PCB prototyping and development
• Industrial control boards
• Automation and sensor modules
• Power distribution on PCBs

Good to know

The screw terminals accept solid or stranded wires from 28 to 16 AWG, allowing flexible wiring options. The horizontal orientation keeps the wire entry parallel to the board, reducing overall height in compact enclosures.
