Delock set morsettiere per circuito stampato 4 poli passo 3,81 mm orizzontale (65954)

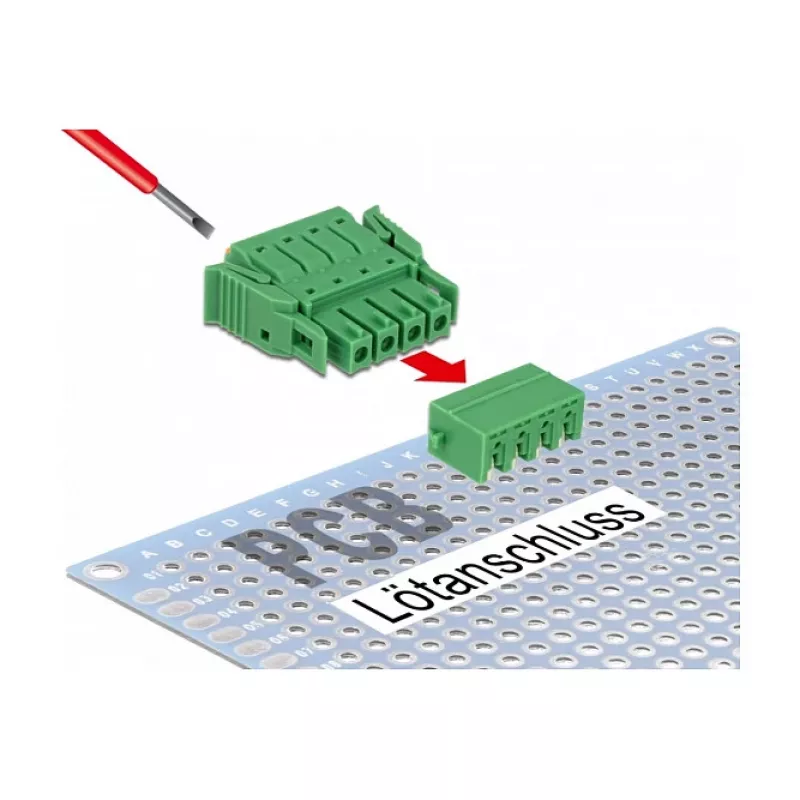

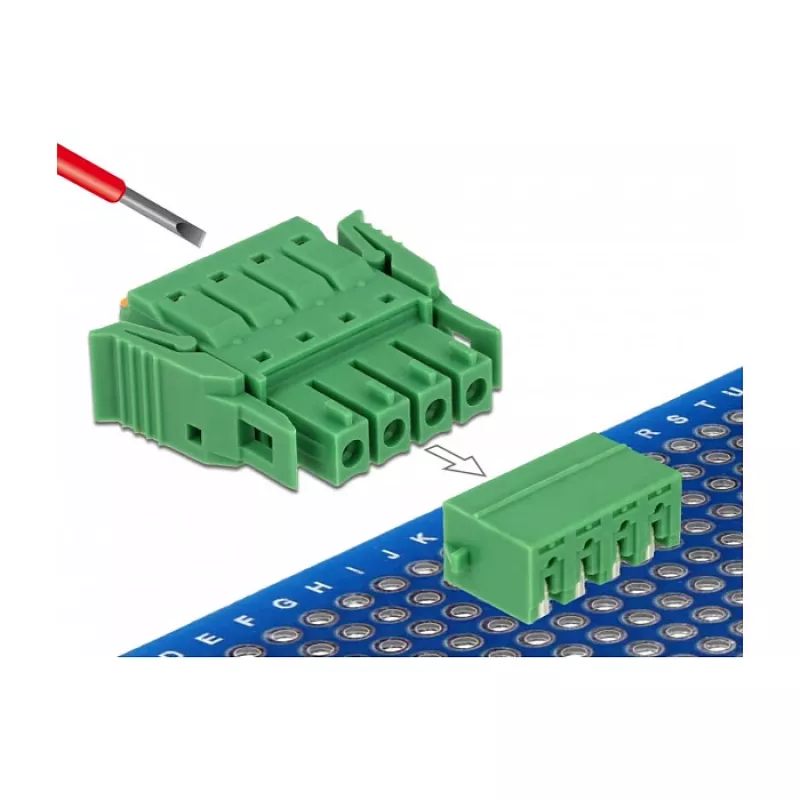

When building or repairing electronics, creating reliable wire-to-board connections on a PCB can be a challenge. This Delock terminal block set provides a straightforward solution for connecting wires to a printed circuit board with a 4-pin configuration and a 3.81 mm pitch. The horizontal orientation allows for low-profile mounting, making it suitable for applications where vertical space is limited.

Who is it for

This set is intended for electronics hobbyists, technicians, and engineers who need to establish secure, detachable connections on PCBs. It is particularly useful for prototyping, industrial control systems, and custom electronic projects requiring a compact and dependable terminal block.

Main features

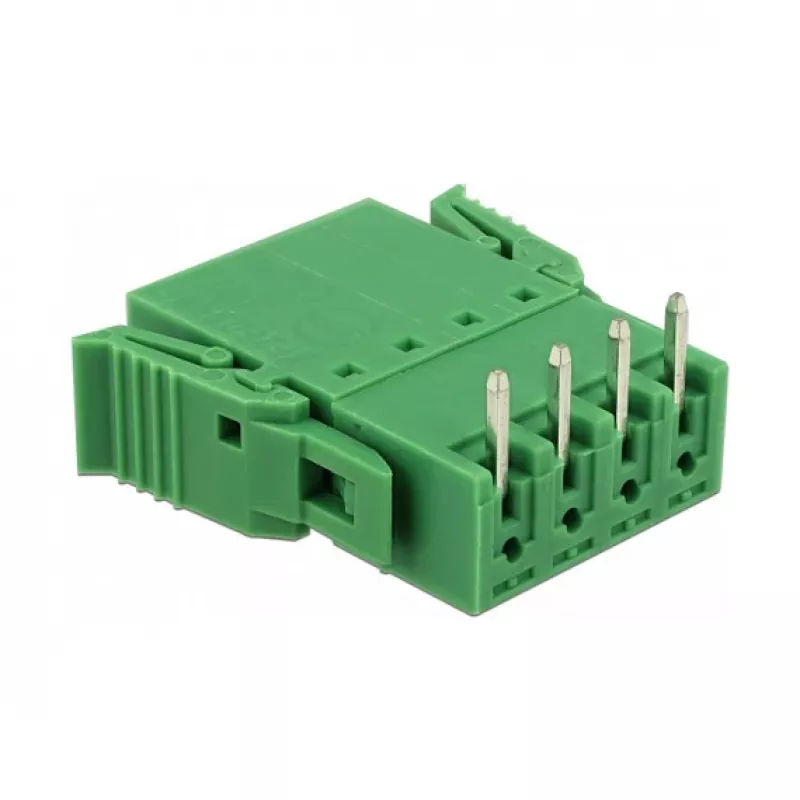

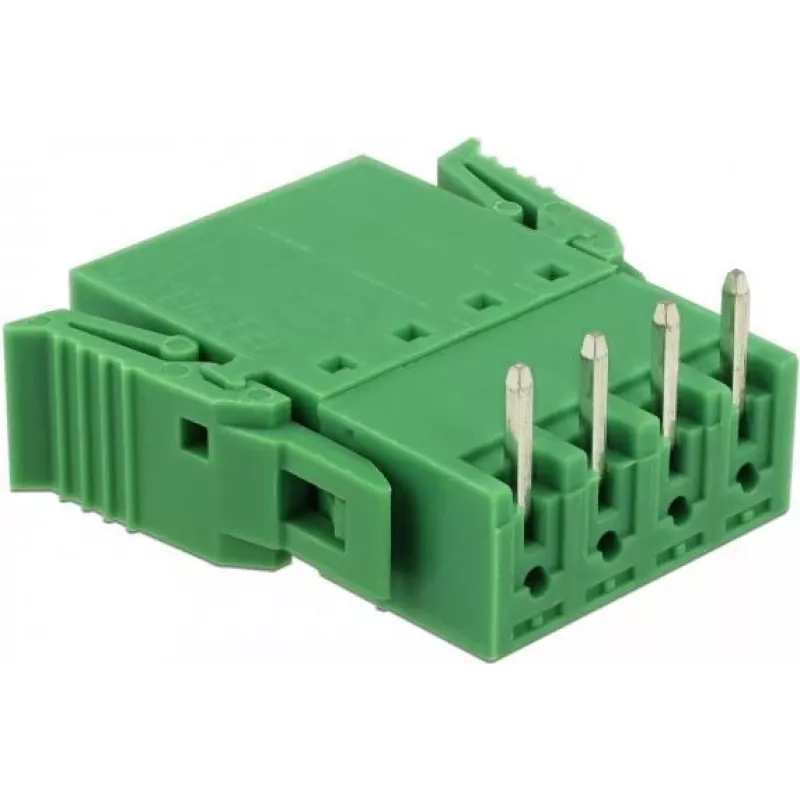

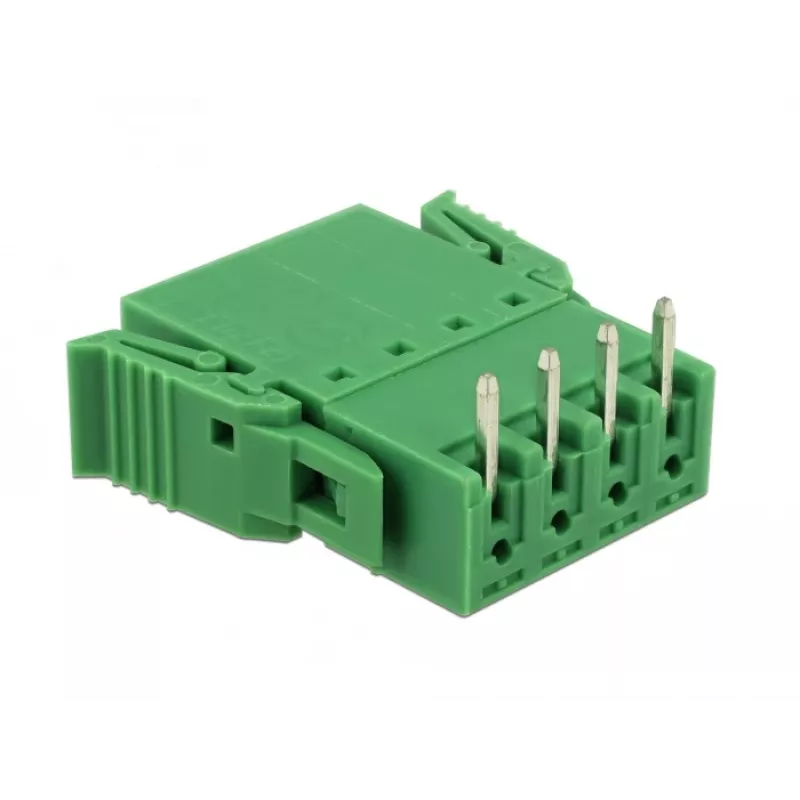

• 4-pin terminal block set with 3.81 mm pin pitch
• Horizontal mounting orientation for low-profile PCB designs
• Through-hole technology (THT) for easy soldering
• Rated for 8 A current and 300 V voltage
• Accepts solid or stranded wire from 28 to 16 AWG (0.08 to 1.31 mm²)
• Housing made of durable PA66 material
• Contacts made of brass with tin plating
• Screws made of steel with zinc plating
• Operating temperature range: -40 °C to 105 °C
• Green colour for easy identification
• Set includes 10 pieces

Specifications

• Product type: Terminal block set
• Number of pins: 4
• Pin pitch: 3.81 mm
• Mounting orientation: Horizontal
• Mounting type: Through-hole (THT)
• Rated current: 8 A
• Rated voltage: 300 V
• Wire gauge (solid): 28 - 16 AWG (0.08 - 1.31 mm²)
• Wire gauge (stranded): 28 - 16 AWG (0.08 - 1.31 mm²)
• Wire strip length: 5 mm
• Housing material: PA66
• Contact material: Brass, tin plated
• Screw material: Steel, zinc plated
• Operating temperature: -40 °C to 105 °C
• Colour: Green
• Quantity per set: 10 pieces

Tips
