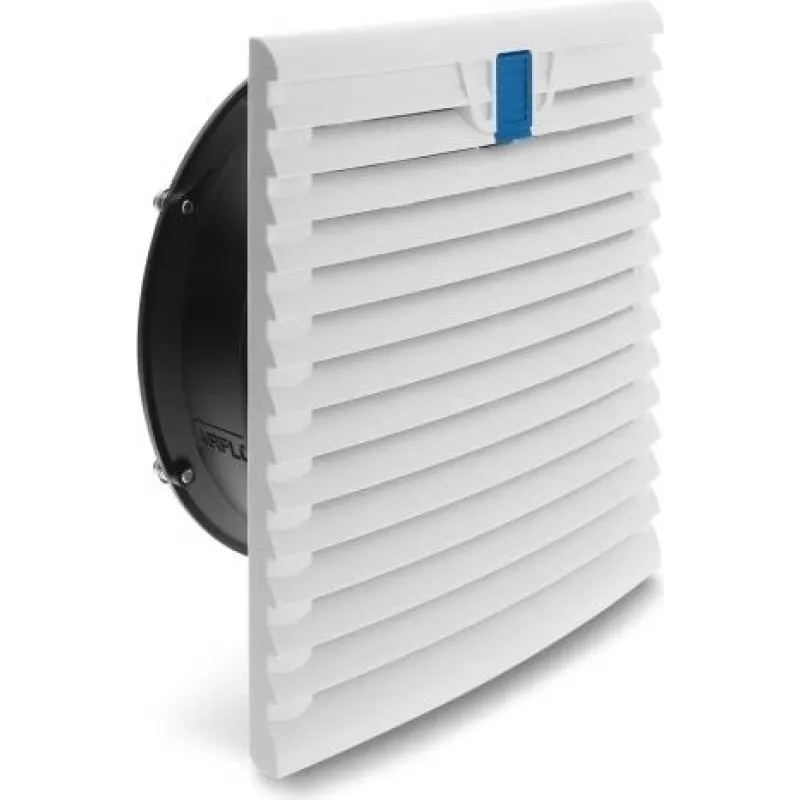

Delock Ventola assiale 230 V AC con filtro 254 x 254 x 107 mm

Industrial-grade axial fan with integrated G3 filter, delivering a powerful airflow of 480 m³/h for reliable ventilation in demanding environments. Its robust aluminum frame and IP54 protection make it suitable for industrial and outdoor applications, ensuring enclosures and equipment stay cool.

Advantages

High airflow and static pressure ensure efficient heat dissipation. The G3 filter mat captures dust and particles, protecting internal components. Ball bearing construction extends lifespan to 50,000 hours at 25°C. Wide operating temperature range from -10°C to 70°C. Terminal block connection simplifies installation.

Suitable for

• Electrical enclosures and control cabinets
• Industrial machinery cooling
• Outdoor equipment with IP54 protection
• Ventilation systems requiring filtered air

Key specifications

• Fan type: Axial
• Operating voltage: 230 V AC, 50/60 Hz
• Power consumption: 40 W
• Airflow: 480 m³/h
• Noise level: 55 dB(A)
• Fan speed: 2600 RPM
• Static pressure: 96 Pa
• Bearing type: Ball bearing
• Frame material: Aluminum alloy
• Impeller material: Thermoplastic PBT (UL94V-0)
• Filter type: G3 filter mat
• Protection class: IP54
• Mounting: Screw mounting
• Certifications: CE, RoHS

Recommendations

For optimal performance, replace the filter mat regularly based on environmental dust levels. Ensure proper clearance around the fan for unrestricted airflow. Use with a suitable 230 V AC power source and secure mounting to prevent vibration.
