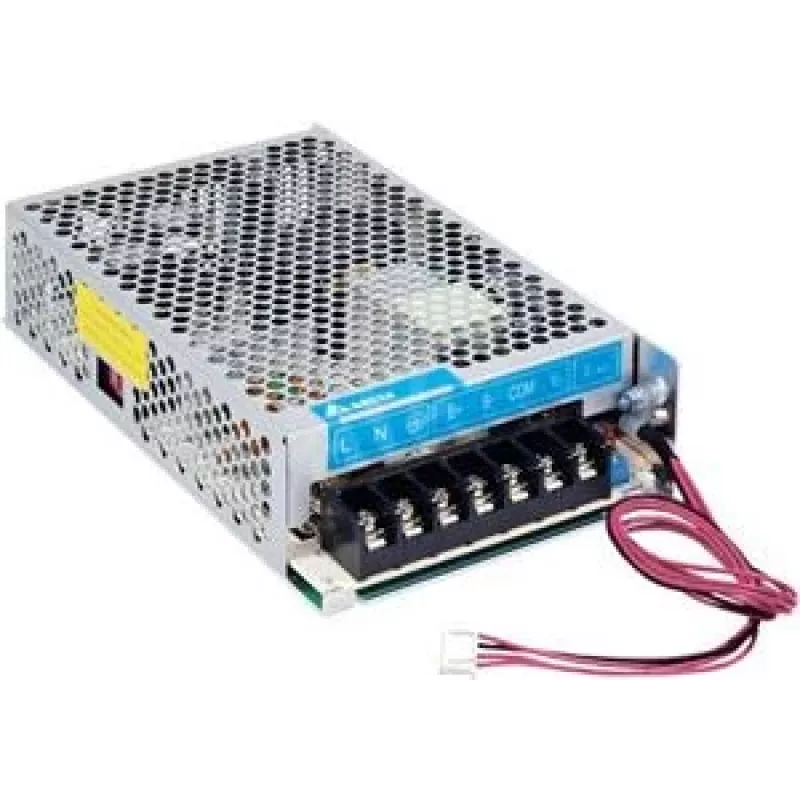

Delta Electronics PMU-13V155WCCA unità di alimentazione

The Delta Electronics PMU-13V155WCCA is a power supply unit with UPS function for the possibility of connecting a backup battery. It accepts input voltages of 90–132 VAC and 180–264 VAC and provides an approximate output power of 151 W. The unit meets IEC/EN 61000-3-2, Class A and includes thermal, power, current, short-circuit, and reverse polarity protection.

Key features

• UPS function for backup battery connection
• Input: 90–132 VAC, 180–264 VAC
• Approximate output power: 151 W
• Compliance: IEC/EN 61000-3-2, Class A
• Protection types: thermal, power, current, short-circuit, reverse polarity
• Operating temperature: -20 to +70 °C

Specifications

• Brand: Delta
• MPN: PMU-13V155WCCA
• Dimensions: 178 × 97 × 38 mm
• Weight: 600 g
