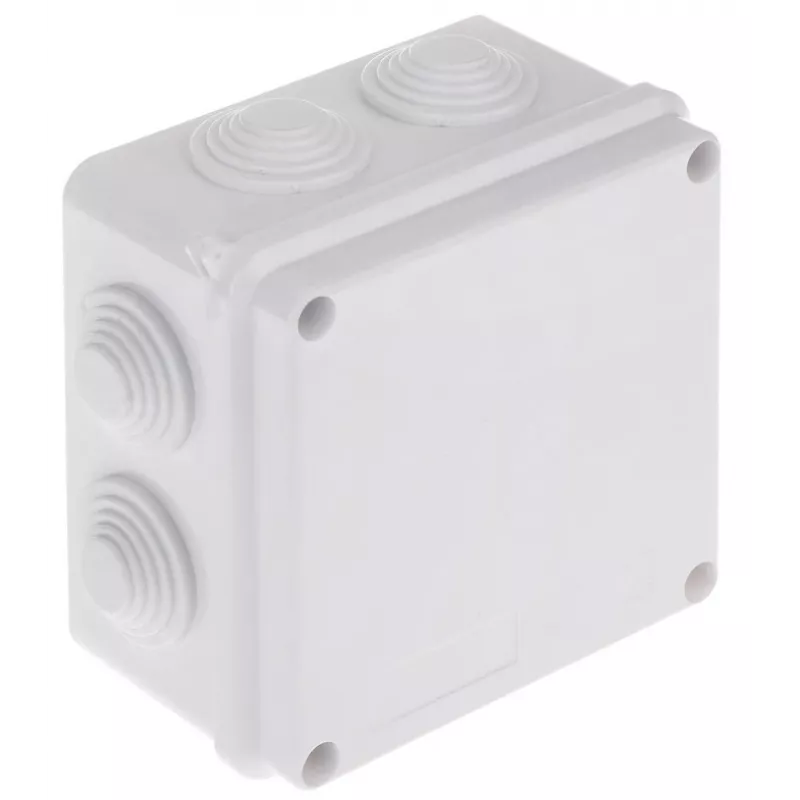

DELTA PUSZKA PK-100 IP65 Scatola di derivazione grigia

Electrical junction box offering dust-tight and water-jet resistant protection (IP65) for reliable indoor and outdoor installations. The robust polystyrene enclosure withstands impacts up to IK07 and operates from -25°C to +60°C, making it suitable for demanding environments.

Advantages

Constructed from halogen-free polystyrene in RAL 7035 grey, this enclosure provides excellent chemical resistance and durability. The smooth walls allow custom cable entries, while the opaque lid with four plastic screws ensures secure closure. Its compact 100x100x50 mm size fits tight spaces without compromising internal volume.

Suitable for

• Protecting electrical connections in residential and commercial buildings
• Outdoor installations exposed to rain or water jets
• Industrial control panels and machinery wiring
• Surface mounting on walls or ceilings
• Use with user-defined cable glands or conduits

Key specifications

• Ingress protection: IP65 (dust-tight, protected against water jets)
• Material: Polystyrene (PS), halogen-free
• Colour: Grey (RAL 7035)
• External dimensions: 100 mm (L) x 100 mm (W) x 50 mm (H)
• Mounting type: Surface mount
• Lid: Opaque, solid, fastened with 4 plastic screws
• Impact resistance: IK07
• Operating temperature: -25°C to +60°C
• Glow wire test: 650°C
• Certifications: CE

Recommendations

For optimal performance, use appropriate cable glands to maintain IP65 rating. Ensure the lid screws are tightened evenly. When installing outdoors, position the box to avoid direct prolonged sunlight to extend service life.
