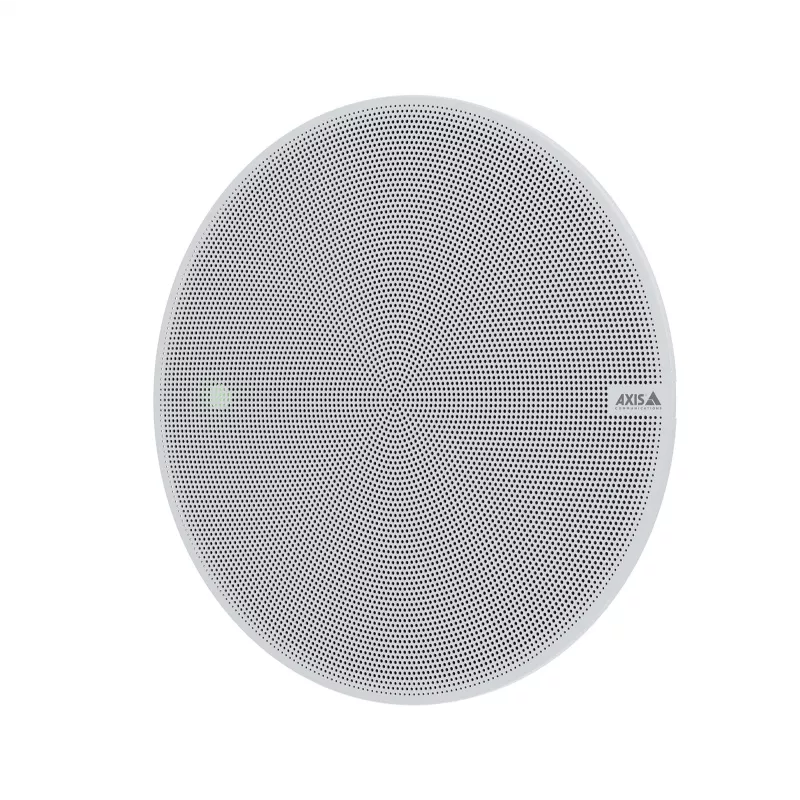

Diffusore a 2 vie Axis 02323-001 bianco cablato universale

AXIS C1211-E is an all-in-one speaker system designed for clear voice announcements and two-way audio. The unit supports Power over Ethernet (PoE) for power and network connectivity over a single cable, and includes a preconfigured digital signal processor (DSP) and a built-in microphone for remote health testing and talk-back. The speaker is intended for recessed ceiling installation indoors and can also be used in protected outdoor areas such as under eaves; a plenum-compliant backbox is included. The device integrates with video management systems (VMS), VoIP telephony, analytics and other systems for centralized audio management.

Advantages

The AXIS C1211-E combines PoE connectivity, integrated DSP and a built-in microphone in a compact recessed-ceiling form factor, enabling clear voice reproduction and remote monitoring without extra cabling. The plenum-rated backbox and discreet installation option allow compliance with building requirements and a neat appearance. Native integration options with VMS, VoIP and analytics simplify system deployment and centralized control.

Suitable for

• Voice announcements in offices, schools and retail environments
• Paging and public address in transportation hubs and public buildings
• Two-way communication for reception desks and security points
• Protected outdoor areas such as under eaves

Key specifications

• Product name: 2-way Loudspeaker Axis 02323-001 White Wired Universal
• Brand: AXIS
• MPN: 02323-001
• EAN: 7331021075894
• Connectivity: Wired Ethernet with Power over Ethernet (PoE)
• Features: Built-in microphone, DSP, two-way audio, plenum backbox, recessed ceiling installation

How to use

Install the speaker into a recessed ceiling location using the included backbox following local building and safety regulations. Connect the unit to your network switch using a single Ethernet cable that provides both data and PoE power. Configure audio settings, zones and schedules through the embedded audio management software or integrate the device into your VMS/VoIP system for centralized control. Use the built-in microphone to perform remote health checks and enable two-way communication as required.

Recommendations

Place the speaker in a central ceiling position for even coverage, test audio levels after installation, and ensure the connected network supplies adequate PoE power and bandwidth. For outdoor-exposed installations, limit use to protected areas such as under eaves.
