Diffusore a 2 vie Omnitronic 80710357

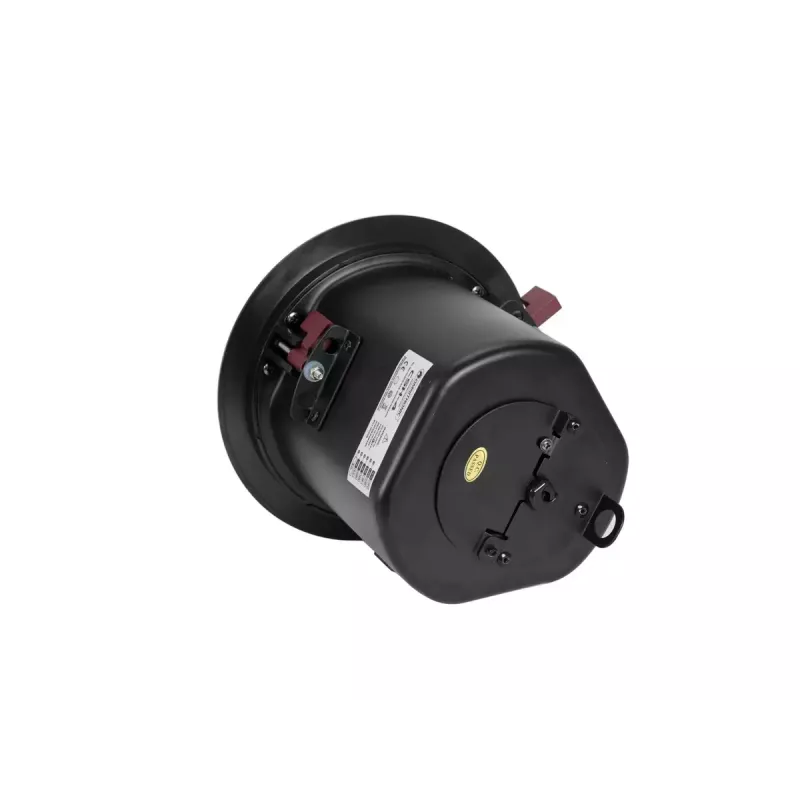

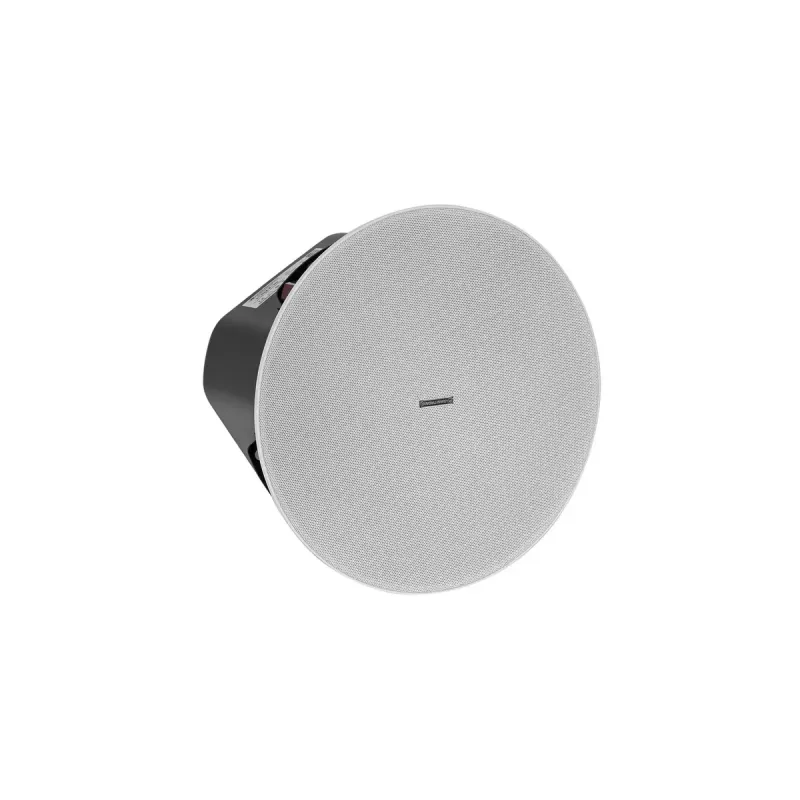

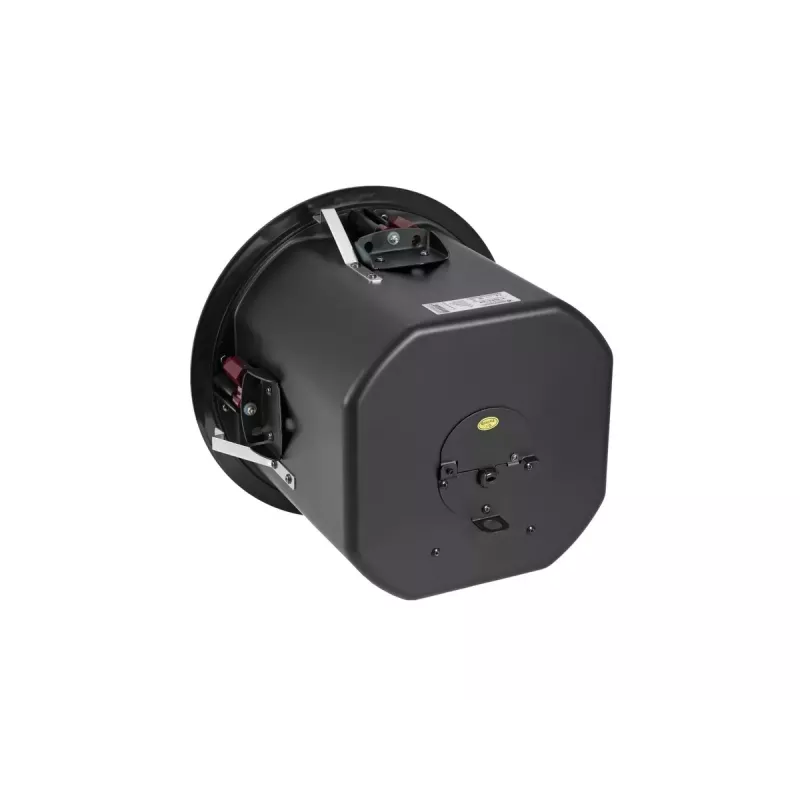

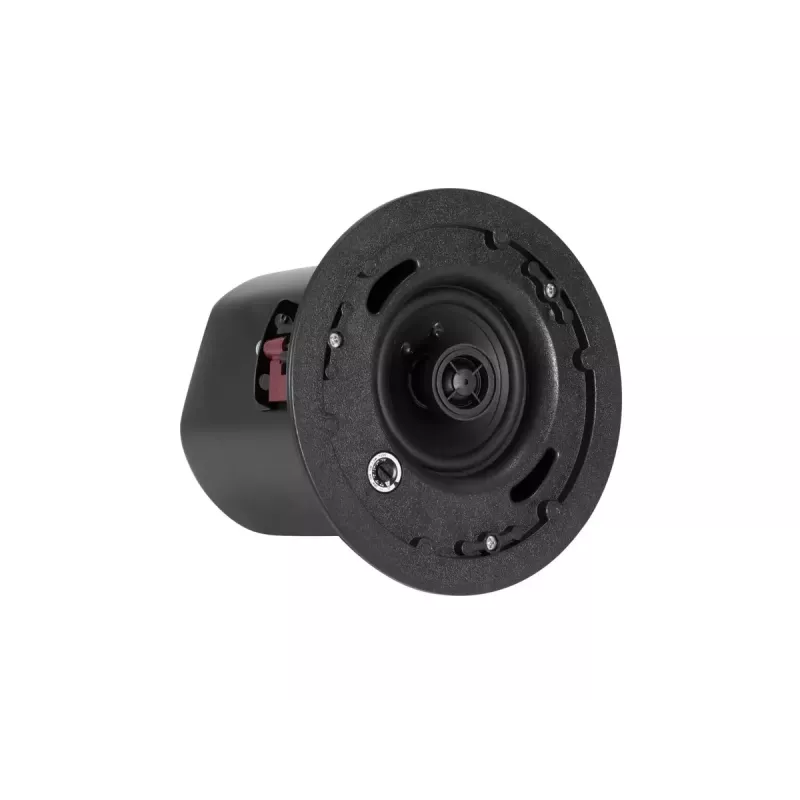

The Omnitronic 80710357 is a 2-way wired loudspeaker designed for general-purpose sound reproduction. With a nominal power rating of 75 W, an impedance of 8 Ω and a sensitivity of 88 dB, it covers a frequency range from 60 to 20,000 Hz to reproduce vocals and instruments with clarity. The speaker is finished in white and intended for installations where a compact, unobtrusive loudspeaker is required.

Advantages

The two-way driver configuration separates low and high frequencies to provide balanced sound across the audible spectrum. A sensitivity of 88 dB allows the speaker to deliver adequate volume with moderate amplifier power, while the 8 Ω impedance is compatible with a wide range of amplifiers and mixers. The 60–20,000 Hz frequency response ensures usable bass and clear treble for background music, speech and small live sources. The white cabinet supports visually discreet installations in contemporary interiors.

Suitable for

Key specifications

How to use

Connect the loudspeaker to a compatible amplifier or mixer with a matching output capable of driving an 8 Ω load. Position the speaker to face the listening area and install it on a suitable bracket or stand if required. Adjust amplifier gain and any equalization to achieve the desired tonal balance and to avoid clipping at high levels. For multi-speaker setups, maintain correct polarity and balance levels between speakers to ensure even coverage.

Recommendations

Use the Omnitronic 2-way loudspeaker with an amplifier that can provide clean power within the speaker’s nominal rating; avoid sustained operation at maximum rated power to prolong driver life. For consistent results in speech and background-music applications, place speakers at or slightly above ear height and angle them toward the listening area. Protect the cabinet from prolonged exposure to moisture and direct sunlight.
