DIGITUS Adattatore server Ethernet – 10 Gbit/s Dual-Port PCIe X8, Intel X540 BT2

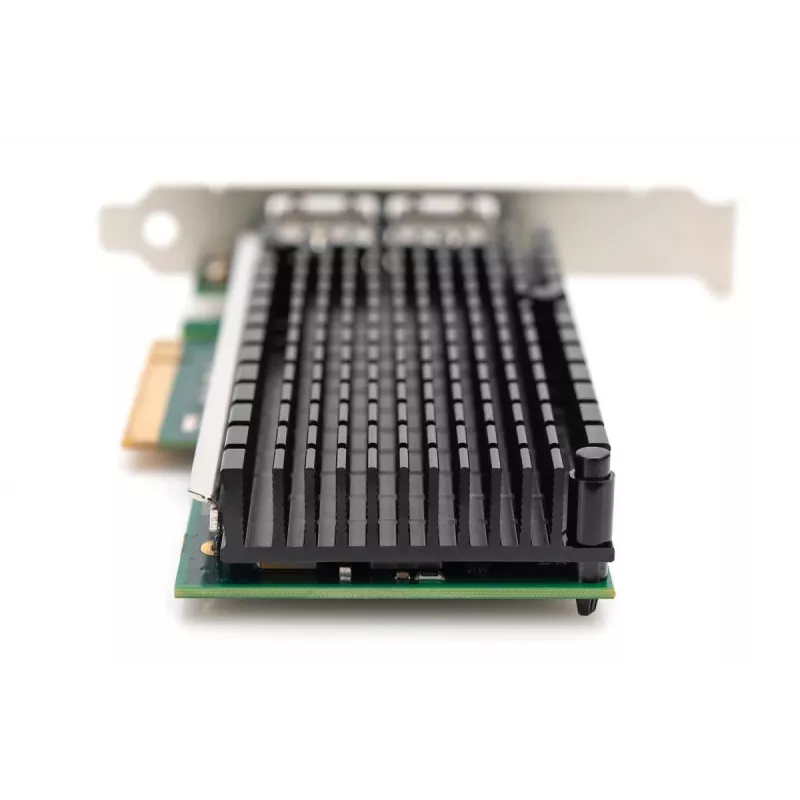

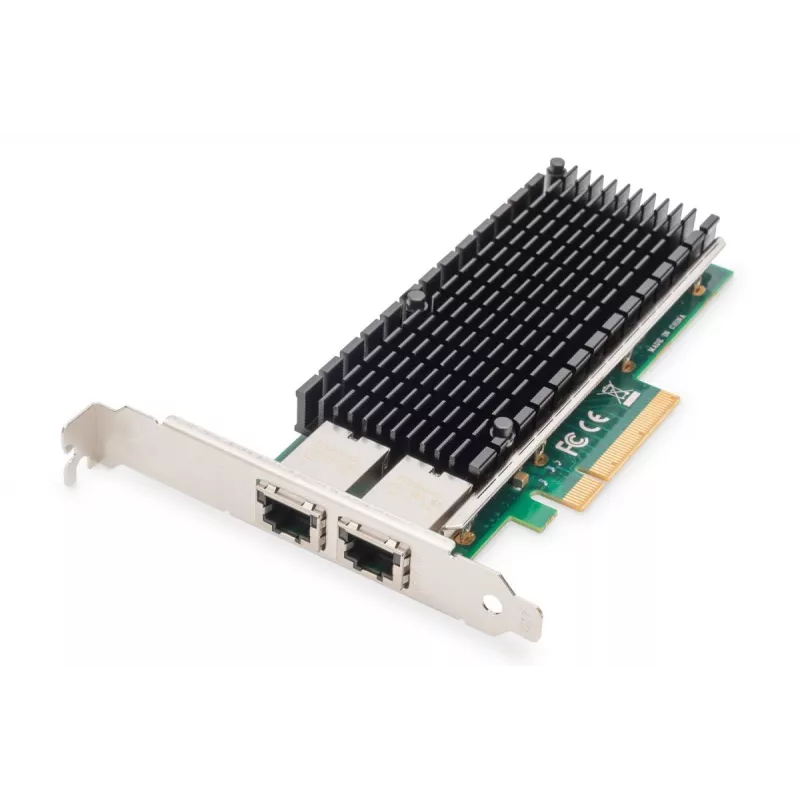

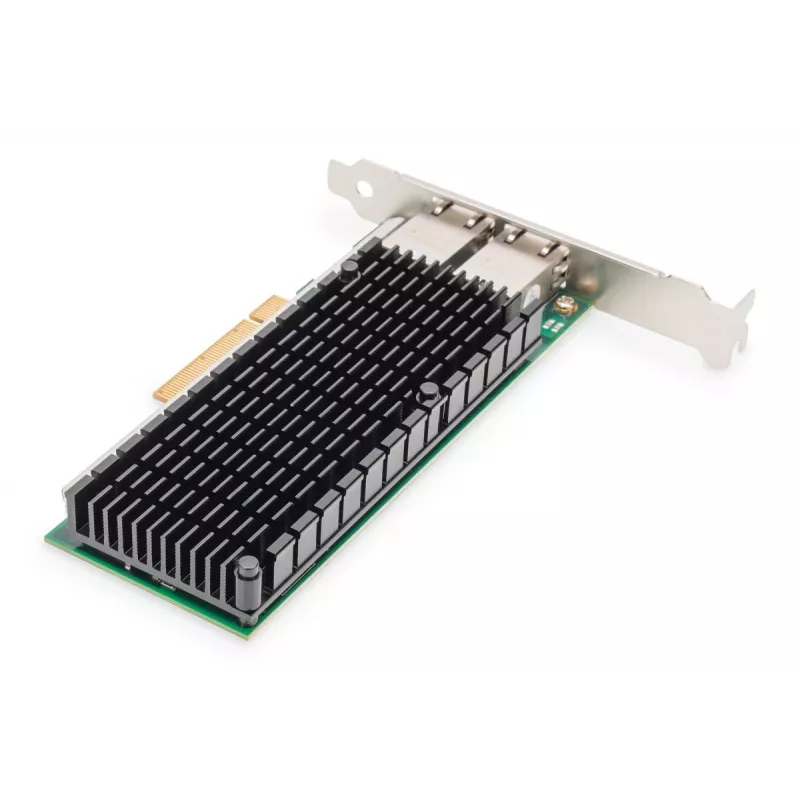

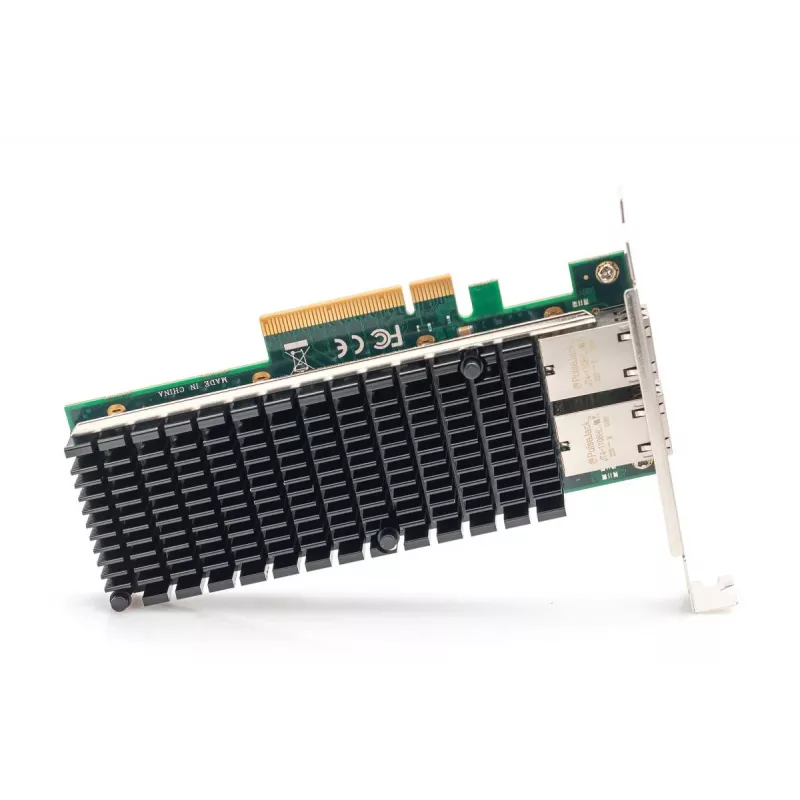

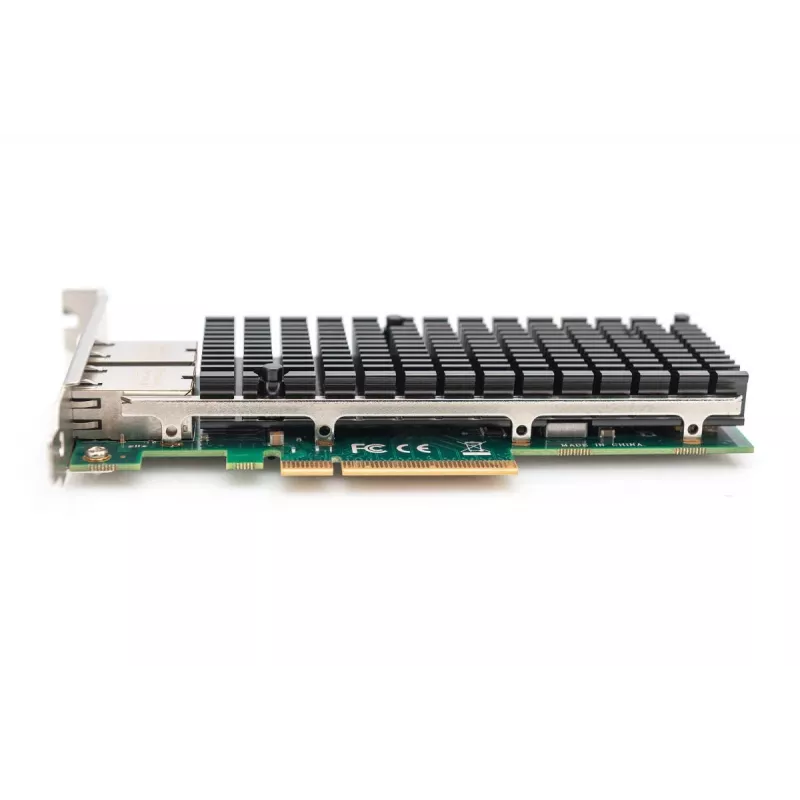

DN-10163 is a PCI Express 10Gbps dual-port RJ45 Ethernet server adapter based on the Intel X540 single-chip solution. It provides 10 Gigabit Ethernet (10GbE) connectivity over standard CAT-6a cabling with RJ45 connectors, offers backward compatibility with 1000Base-T networks, and supports unified networking for LAN, iSCSI and FCoE in a low-profile add-in card suitable for modern server platforms.

Advantages

The adapter delivers low-cost, low-power 10GbE performance with an integrated MAC+PHY single-chip design for reliable operation. It supports flexible I/O virtualization with up to 64 virtual ports for port partitioning and quality of service (QoS), and is compatible with common network and transport protocols including TCP/IP, UDP/IP, IPSec and iSCSI. The use of standard RJ45 cabling simplifies migration from Gigabit Ethernet.

Suitable for

• Server network upgrades to 10 Gigabit Ethernet
• Converged networking deployments (LAN, iSCSI, FCoE)
• Virtualized environments requiring port partitioning and QoS
• Data centre and rack-mounted server platforms with PCI Express slots

Key specifications

• Model: DN-10163
• Chipset: Intel X540 (single-chip MAC+PHY)
• Interface: PCI Express

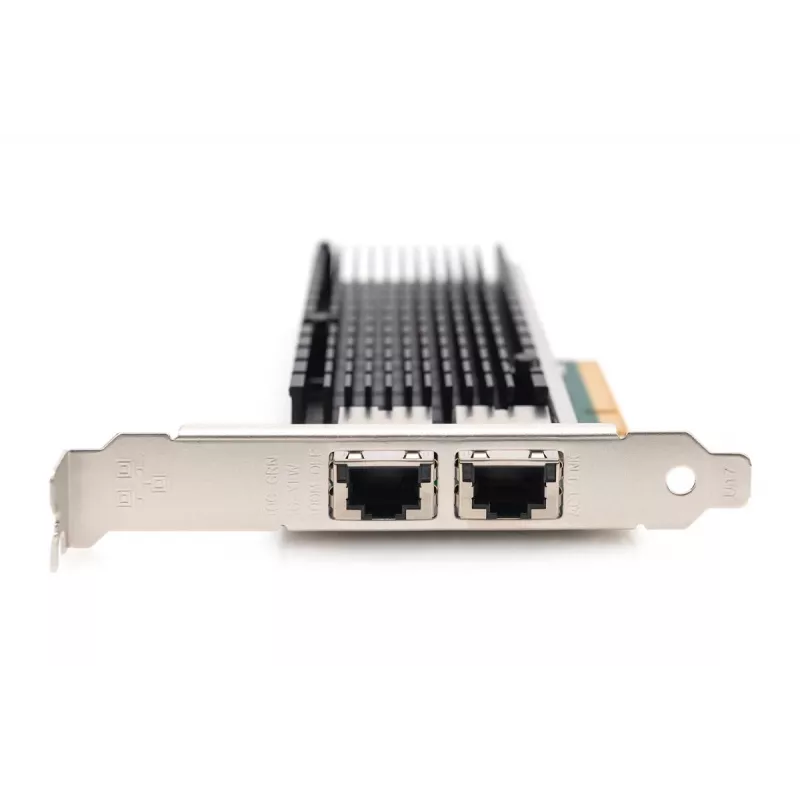

• Ports: 2 × RJ45 (10GBase-T)
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Cabling: CAT-6a (RJ45)
• Standards: IEEE 802.1p, IEEE 802.1ad, IEEE 802.1Q
• Supported protocols: TCP/IP, UDP/IP, IPSec, iSCSI

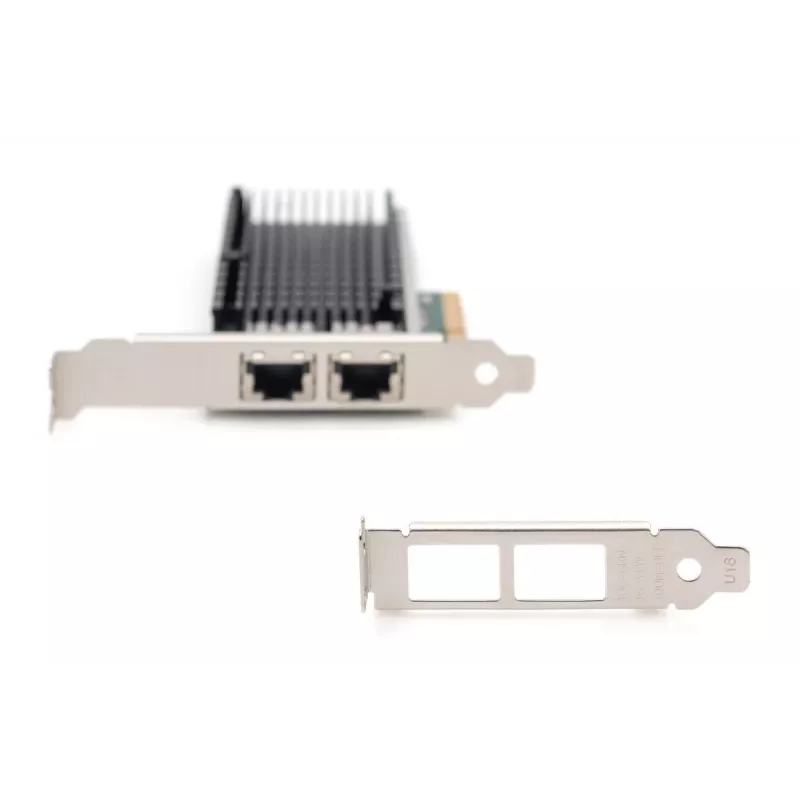

• Form factor: Low profile brackets included
• Colors: Silver, Green
• Weight: 0.17 kg

How to use

Install the DN-10163 into an available PCI Express slot on the server motherboard and attach the appropriate low-profile or standard bracket as required. Connect CAT-6a (or better) RJ45 cables from the adapter ports to the network switch or infrastructure. Install or update the server operating system drivers provided by the vendor or Intel to ensure full functionality for 10GBase-T, virtualization features and protocol offloads. Configure network settings, VLANs and QoS through the OS or management tools as needed for your environment.

Recommendations

For optimal 10GbE performance, use CAT-6a or higher cabling and ensure switches and network infrastructure support 10GBase-T. Apply the latest firmware and driver updates from the adapter manufacturer or Intel. When deploying virtualization or port partitioning, plan VLANs and QoS policies to match workload requirements.
