DIGITUS bundle di rete, 10 pollici, incl. armadio 12U, nero e vari

For compact installations where every centimetre counts, this 10-inch 12U wall-mount set bundles a lockable steel cabinet with all the active and passive components needed to get a small network running immediately. Unlike piecemeal purchases, the DN-10-SET-3-B arrives as a coordinated kit: 8-port Gigabit switch, shielded CAT 6 patch panel, fixed shelf, 3-socket power strip, ten S/FTP patch cables, dummy cover, cable brush strip and cable management panel. No guesswork about fit or compatibility — everything is designed for the 254 mm (10") form factor and pre-assembled for quick deployment.

Highlights

• Complete 12U wall-mount cabinet set for 10-inch networking

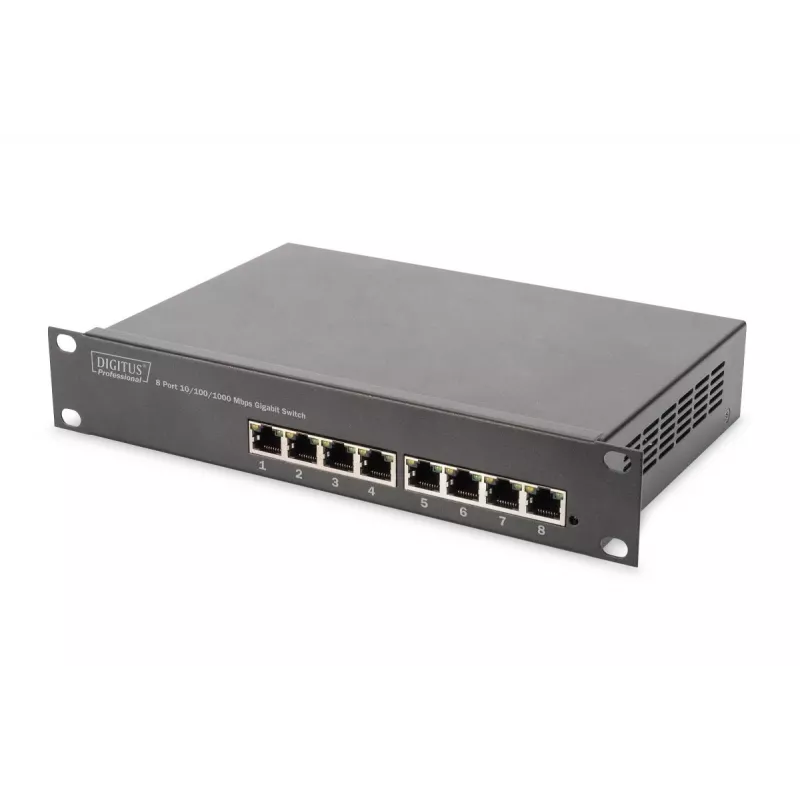

• Includes 8-port Gigabit Ethernet switch (DN-80114)

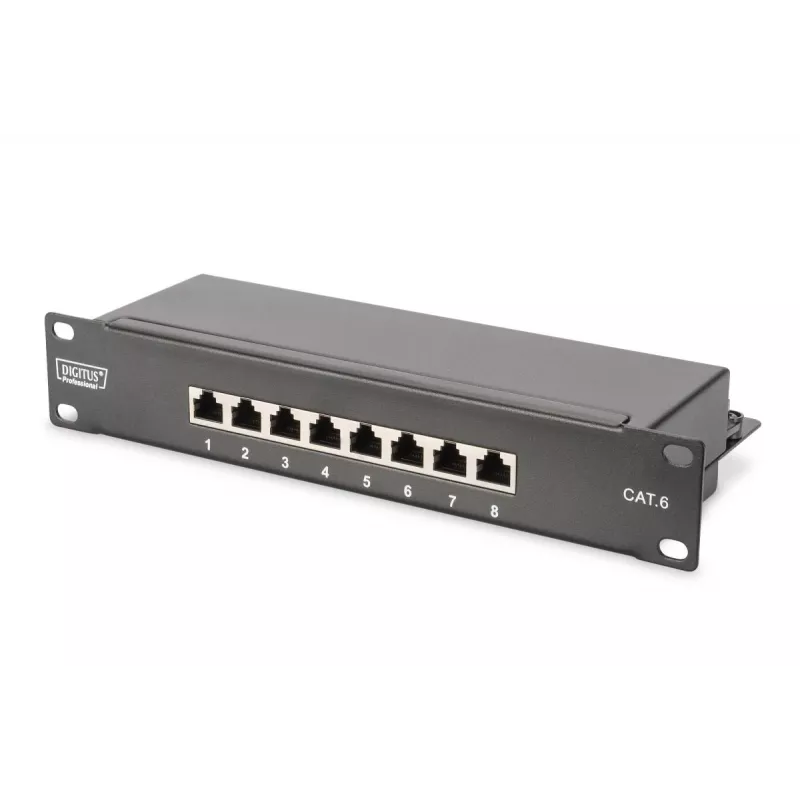

• Shielded CAT 6 patch panel, 8 ports (DN-91608S)

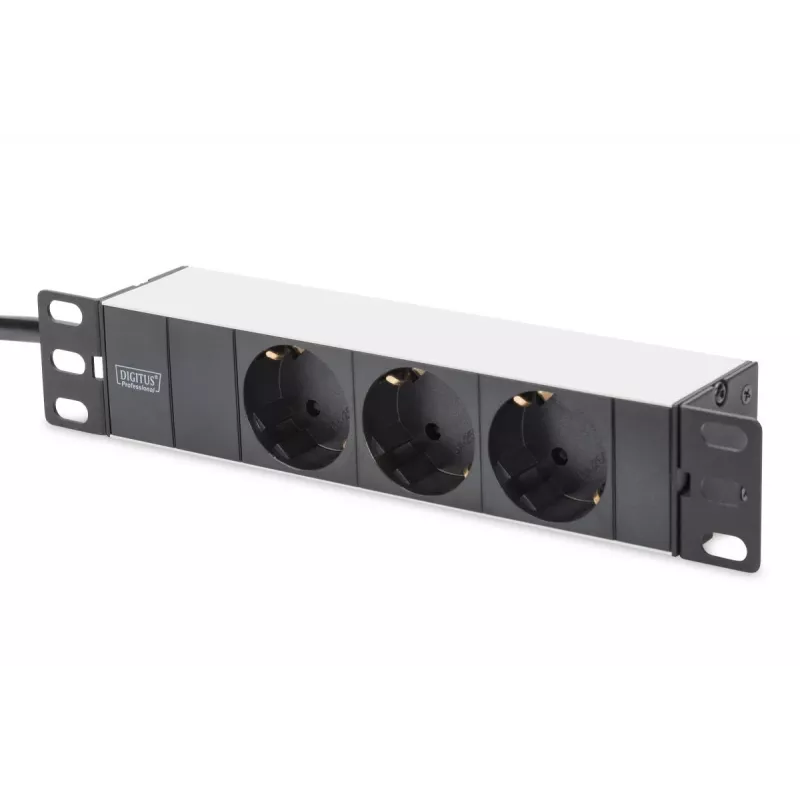

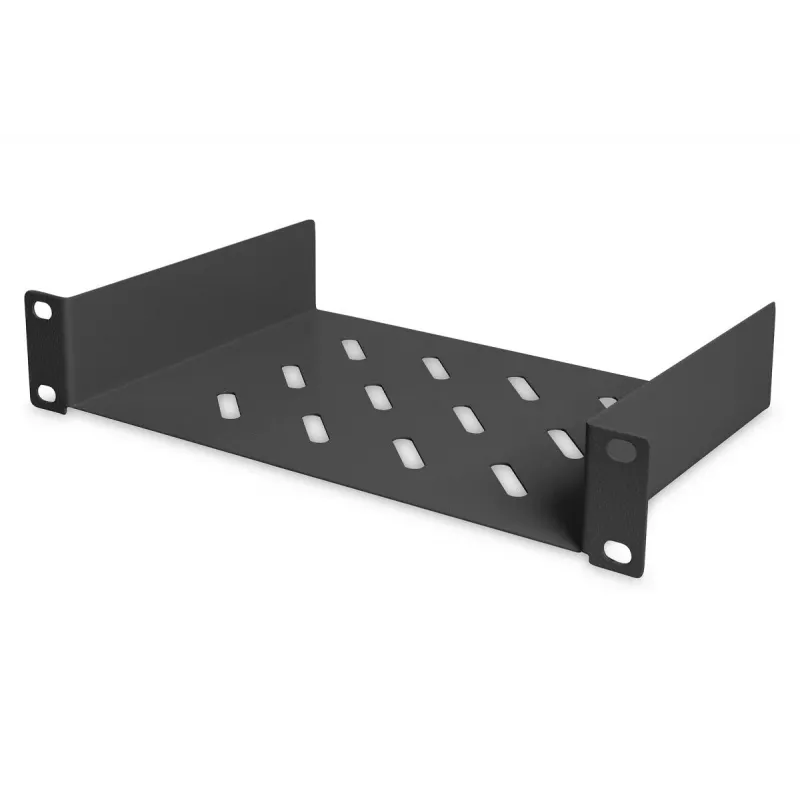

• 1U fixed shelf and 1U power strip with 3 safety sockets

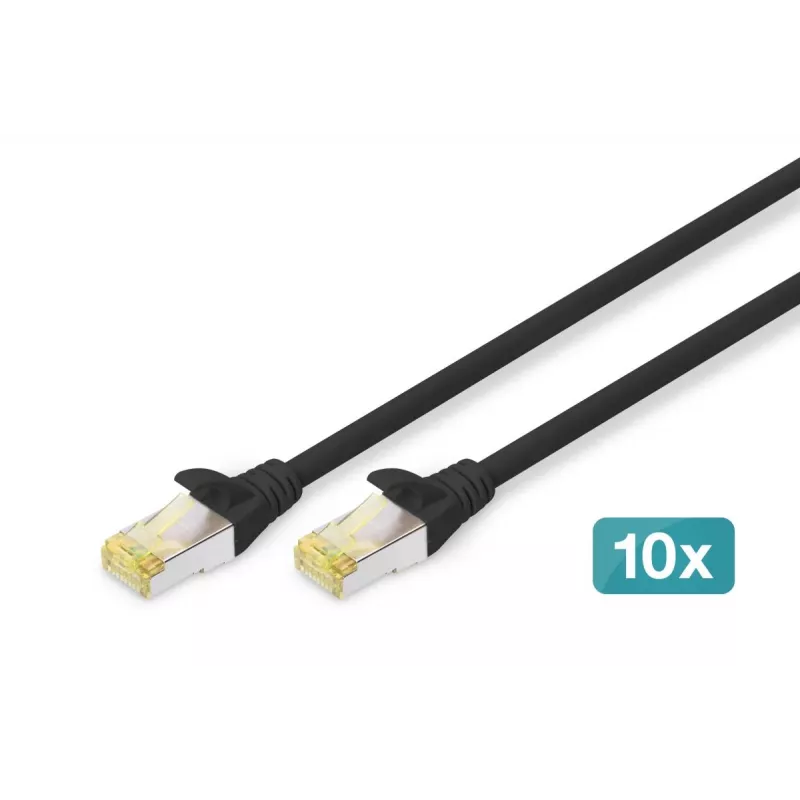

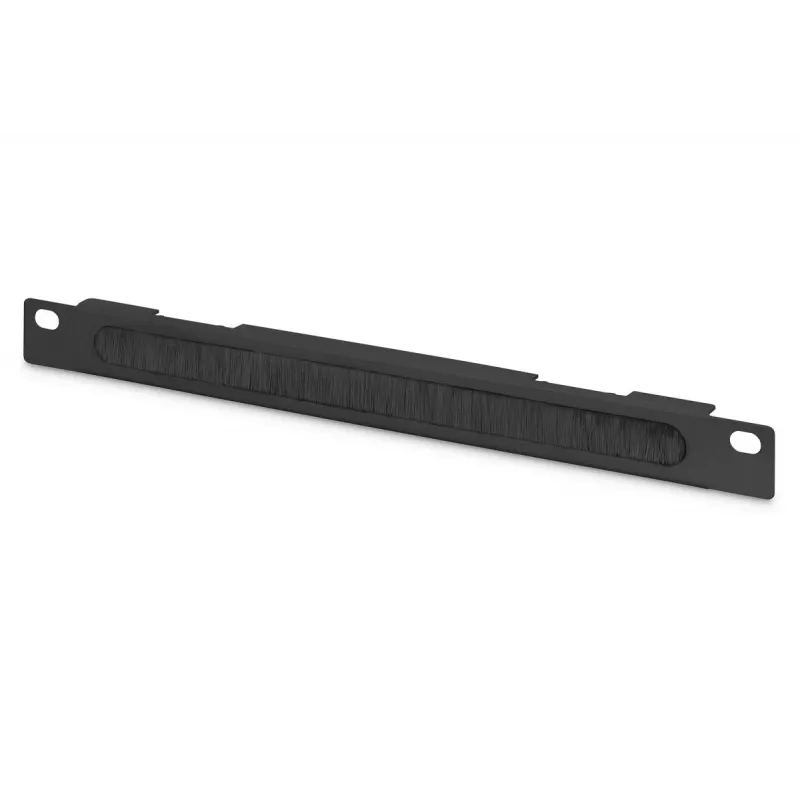

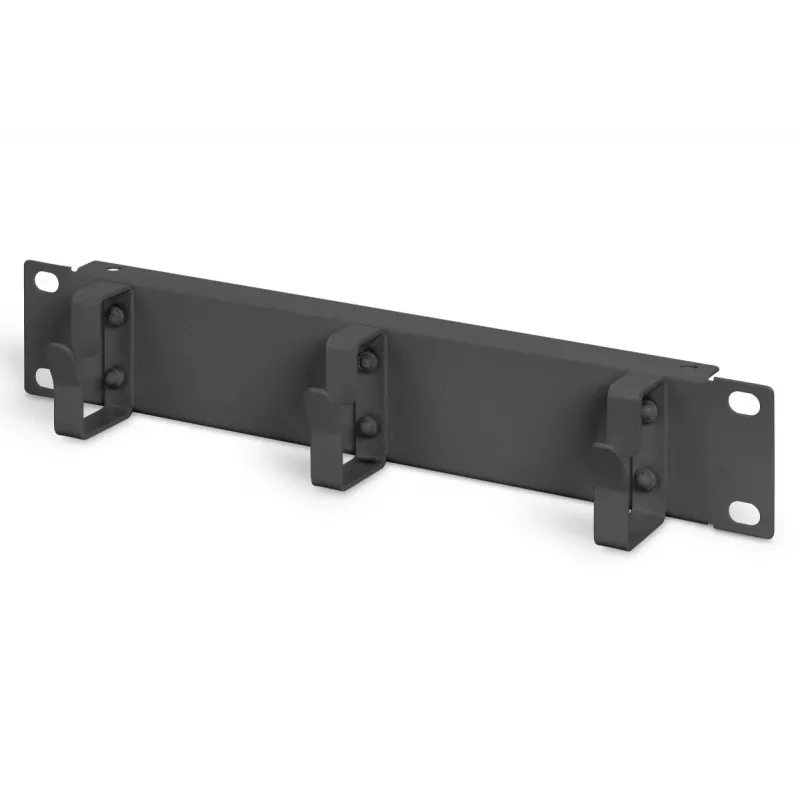

• 10x CAT 6 S/FTP patch cables, 1 m, plus cable management and brush strip
• Lockable glass front door, passive ventilation, IP20
• Black RAL 9005 steel housing, 30 kg load capacity

In daily use

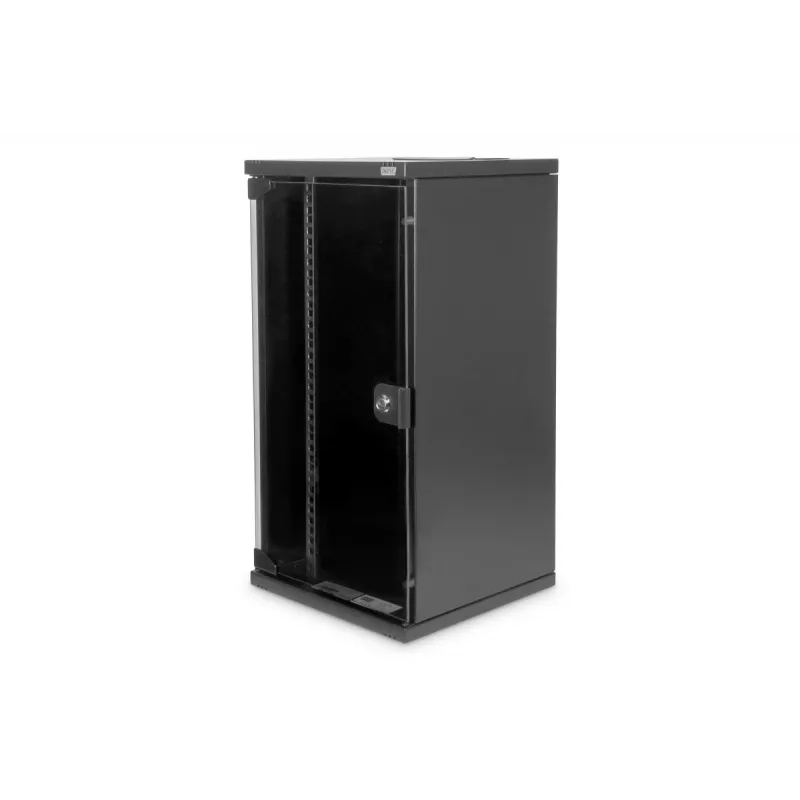

Mount the cabinet on a wall in a home office, retail back room or small sub-distribution point. The glass door lets you monitor link LEDs at a glance, while the key lock prevents unauthorised access. Route cables through top or bottom entries, organise them with the brush strip and management panel, and use the shelf for a modem or small NAS. The switch's eight Gigabit ports cover typical device counts, and the patch panel keeps connections tidy. With a depth of only 300 mm, the cabinet fits in shallow spaces where standard 19-inch racks cannot.

Full specifications

• Brand: DIGITUS
• Model: DN-10-SET-3-B
• EAN: 4016032477525
• Cabinet type: Wall-mount network cabinet set, 10-inch (254 mm)
• Rack units: 12U
• Dimensions (W x D x H): 312 x 300 x 600 mm
• Material: Steel
• Colour: Black (RAL 9005)
• Front door: Lockable glass door
• Side panels: Fixed
• Ventilation: Passive ventilation slots
• Maximum load capacity: 30 kg
• Protection class: IP20
• Cable entry: Top and bottom

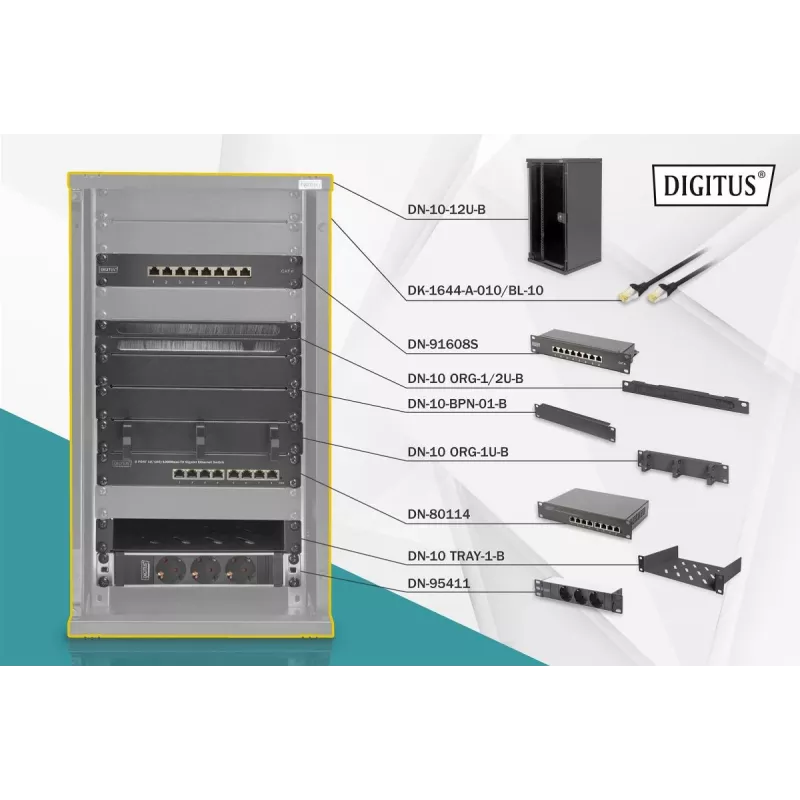

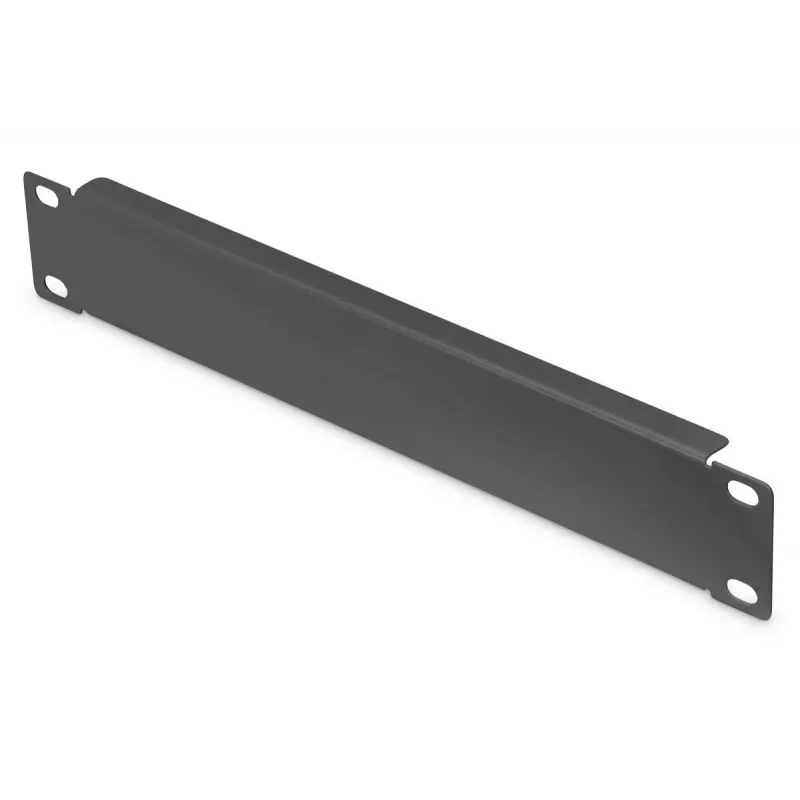

• Included components: 8-port Gigabit switch, 8-port shielded CAT 6 patch panel, 1U fixed shelf, 1U power strip (3x safety sockets), 10x CAT 6 S/FTP patch cables (1 m), dummy cover (1U), cable brush strip, cable management panel
• Application: Small office/home network

Final note

Everything you need for a compact, secure 10-inch network — in one box, ready to install.
