DIGITUS cavo adattatore USB Type C to DP 8Ka30Hz. HBR3 alloggiamento in alluminio nero 1m

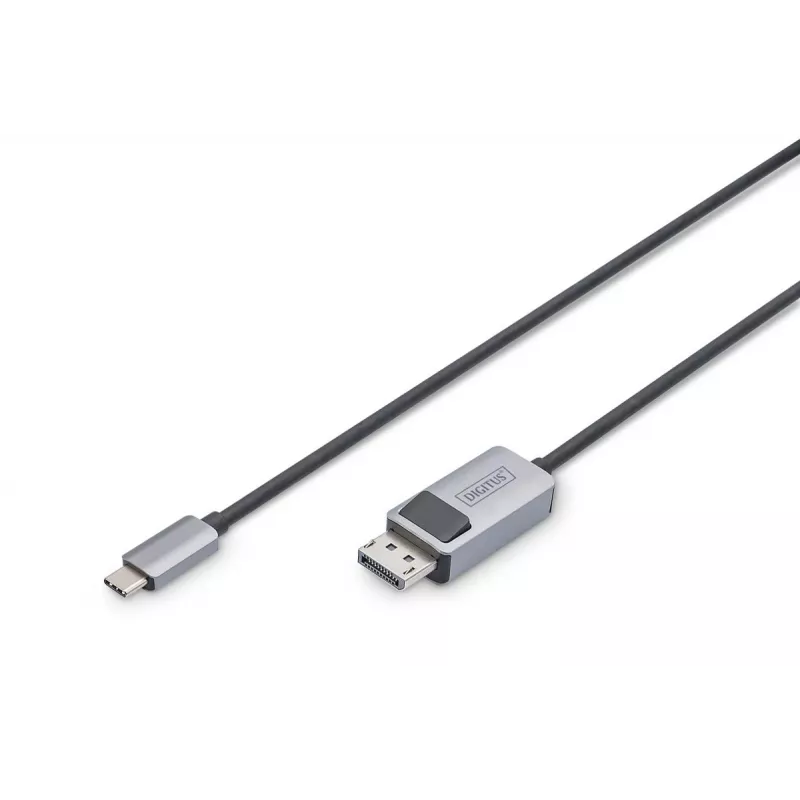

The DIGITUS USB Type C to DisplayPort Adapter Cable (DB-300334-010-S) is a 1 m bidirectional cable that connects USB Type-C devices to DisplayPort displays and vice versa. It supports DP Alt Mode and DisplayPort 1.4 (backwards compatible with DP 1.3/1.2/1.1), enabling video and audio transmission up to 8K (7680x4320) at 30 Hz without requiring an external power supply. The compact black cable is suitable for laptops, tablets, smartphones, monitors, TVs and projectors.

Advantages

This adapter cable provides bidirectional transfer between USB Type-C and DisplayPort interfaces, supports high-resolution output up to 8K at 30 Hz, and is compatible with DisplayPort 1.4 and earlier versions. The Type-C connector is reversible for easy insertion and power is supplied via the USB port, eliminating the need for an external power adapter. The 1 m length offers a balance between reach and portability.

Suitable for

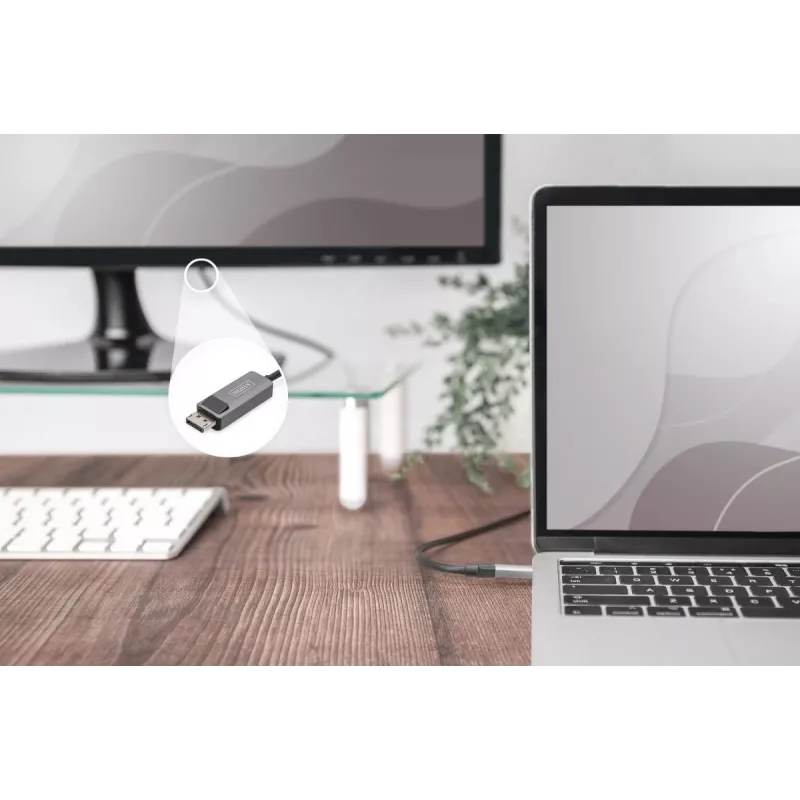

• Connecting a USB-C laptop, tablet or smartphone to a DisplayPort monitor, TV or projector
• Connecting a PC with DisplayPort output to a display with a USB-C input that supports DP
• Mobile workstations and meeting rooms requiring high-resolution video transmission

Key specifications

• Manufacturer: DIGITUS
• Model: DB-300334-010-S

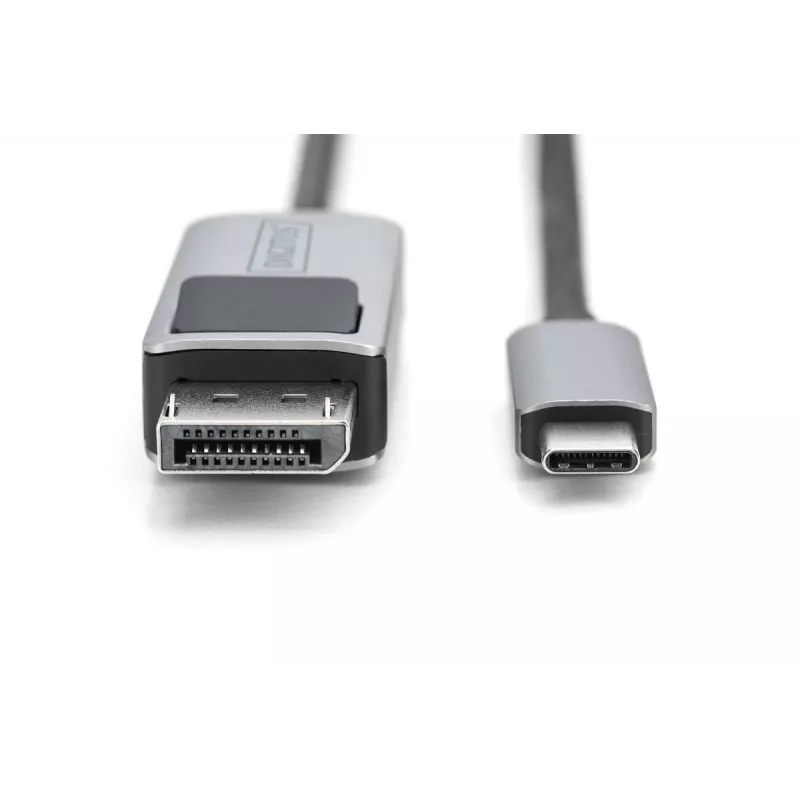

• Connectors: USB Type-C ↔ DisplayPort
• Cable length: 1 m
• DisplayPort version: 1.4 (backwards compatible with 1.3/1.2/1.1)
• Maximum resolution: up to 8K (7680x4320) at 30 Hz
• Plug type: reversible Type-C
• Colour: Black
• Power: bus-powered via USB port (no external power required)
• MPN: DB-300334-010-S
• EAN: 4016032484264

How to use

Connect the USB Type-C plug to a compatible source device that supports DisplayPort Alt Mode (for example a laptop or smartphone) and plug the DisplayPort connector into the display device. For the reverse direction, connect the DisplayPort output of the source device to the USB-C input of the display. Ensure both devices support the chosen direction and DP Alt Mode. No external power supply is required as the cable is bus-powered via the USB port. Adjust display settings on your source device if necessary to select the external display and resolution.

Recommendations

Use the cable for short to medium distances (1 m) and avoid excessive bending near the connectors. Verify that the connected devices support DP Alt Mode and the required DisplayPort version to achieve the desired resolution and refresh rate.
