DIGITUS Contenitore FTTH, con superficie adattatori 4x SC (APC) SX e montaggio su guida DIN

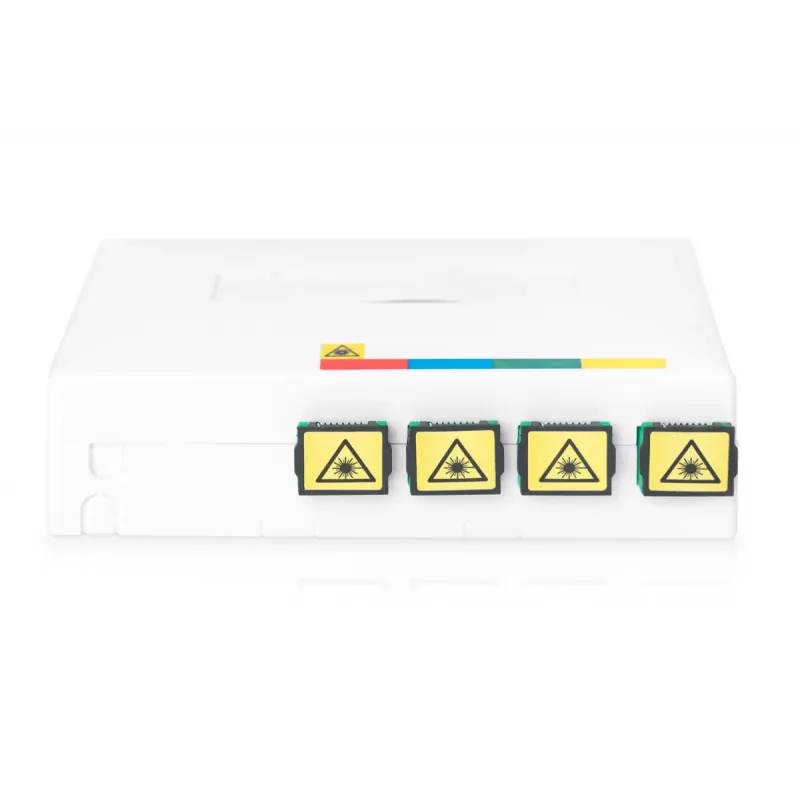

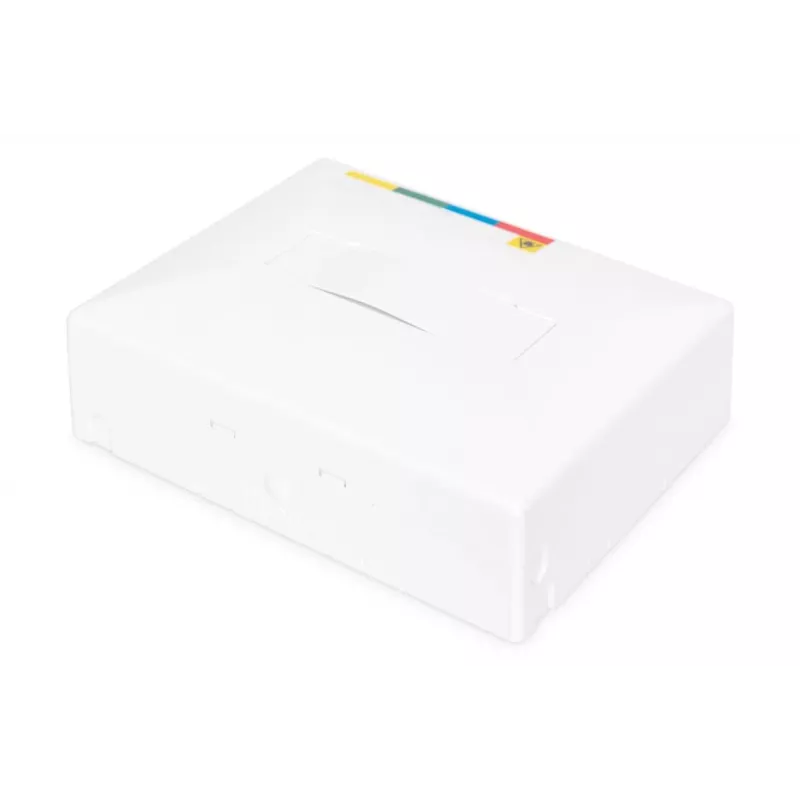

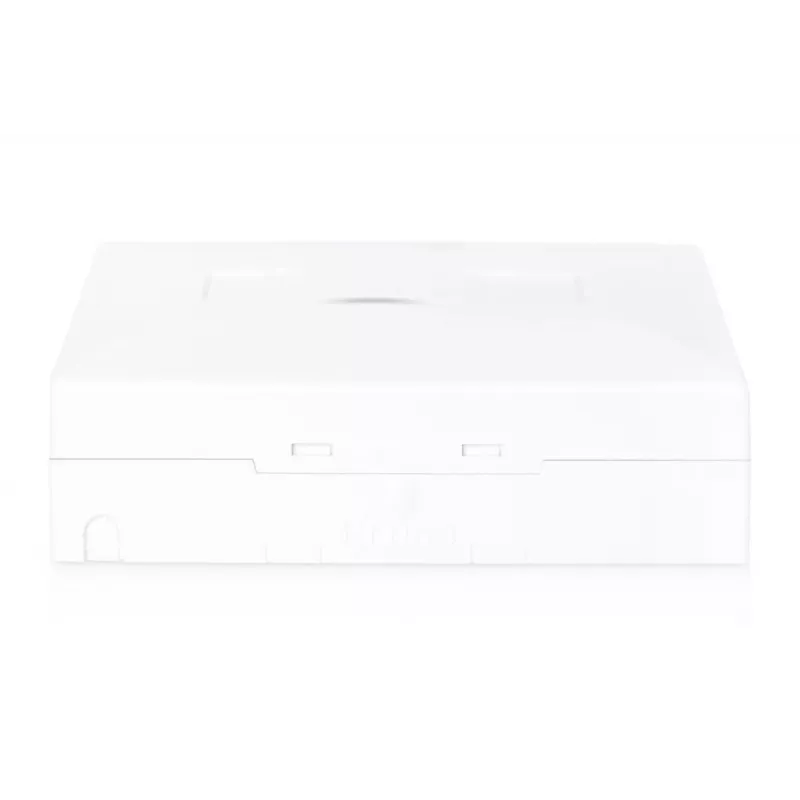

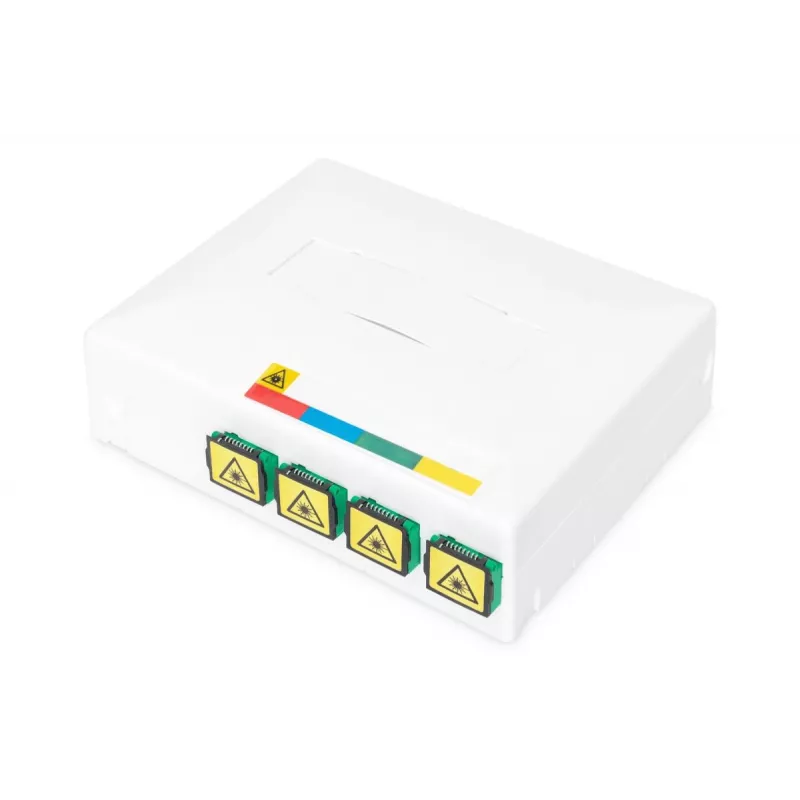

The DIGITUS FTTX enclosure DN-931094 is a compact protective box for fiber splices, terminations, storage and connections. It ships with 4 x SC simplex (SC SX) couplers preinstalled and can alternatively accept 4 x LC duplex (LC DX) couplers without flange. The housing measures 80 mm × 30 mm × 100 mm, has an IP45 dust-protection rating and is suitable for wall mounting or snapping onto a profile (DIN) rail.

Advantages

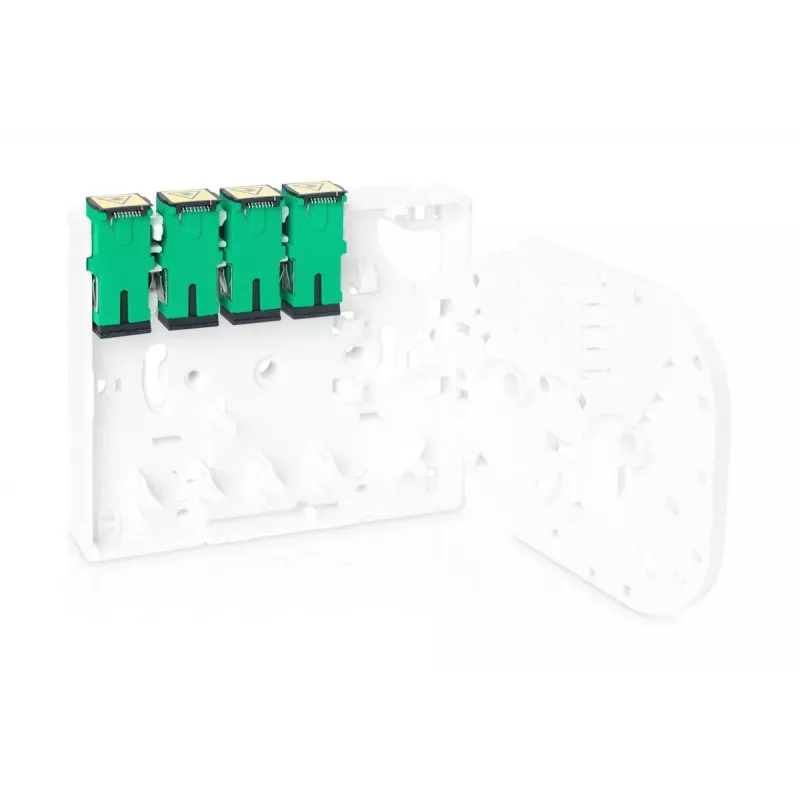

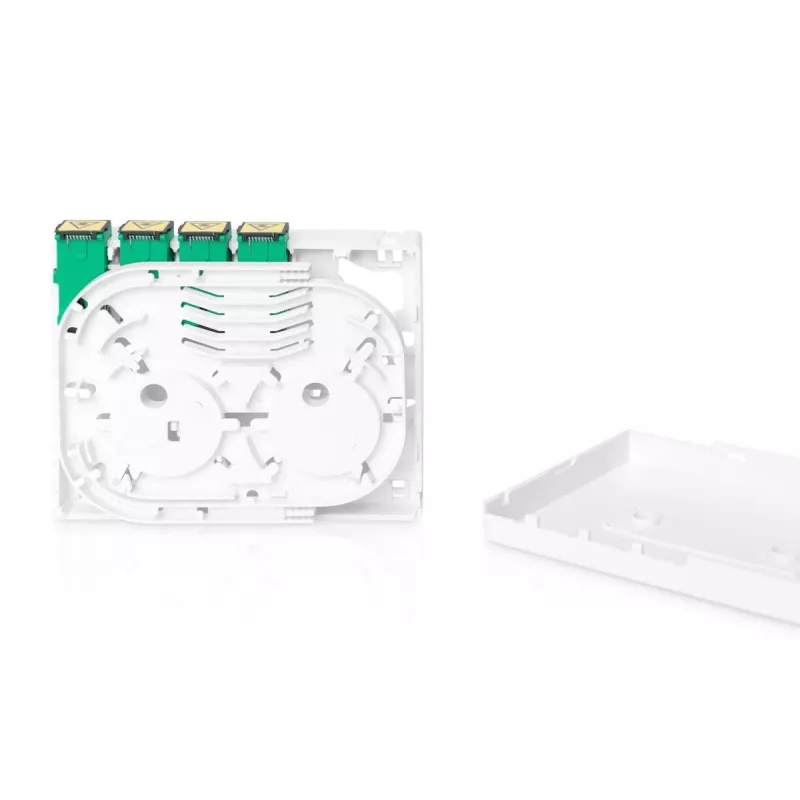

The enclosure integrates a hinged splice cassette with defined cable routing and a transparent cover for added protection of spliced fibers. An integrated labelling field on the cover simplifies identification. The compact design supports easy maintenance and straightforward expansion, and the box is compatible with both fusion and mechanical splicers.

Suitable for

• FTTX / FTTH fiber optic distribution points
• Indoor and sheltered outdoor installations requiring IP45 protection
• Wall-mounted or DIN-rail mounted fiber patching for up to 4 end connections
• Environments using SC simplex or LC duplex couplings

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-931094
• Preinstalled couplers: 4 × SC SX (can be replaced by 4 × LC DX without flange)
• Capacity: up to 4 fiber optic cables / 4 end connections
• Dimensions (W × D × H): 80 × 30 × 100 mm
• Protection class: IP45
• Mounting: wall installation or profile (DIN) rail
• Colour: white
• EAN: 4016032466536

How to use

Mount the enclosure on a wall or snap it onto a compatible DIN rail. Open the transparent cover and route incoming fibers into the integrated splice cassette, using the hinged cassette to manage bend radius and cable routing. Perform fusion or mechanical splicing as required and secure splices inside the cassette. Install the desired couplers (4 × SC SX supplied; replaceable with 4 × LC DX without flange) and close the cover. Use the labelling field on the cover to mark connections.

Recommendations

For reliable operation, maintain proper bend radius and secure outdoor cables to prevent strain. Use appropriate sealing on cable entry points when the enclosure is used in exposed or semi-exposed locations despite its IP45 rating. Verify compatibility of replacement couplers (LC DX) with the housing before installation.
