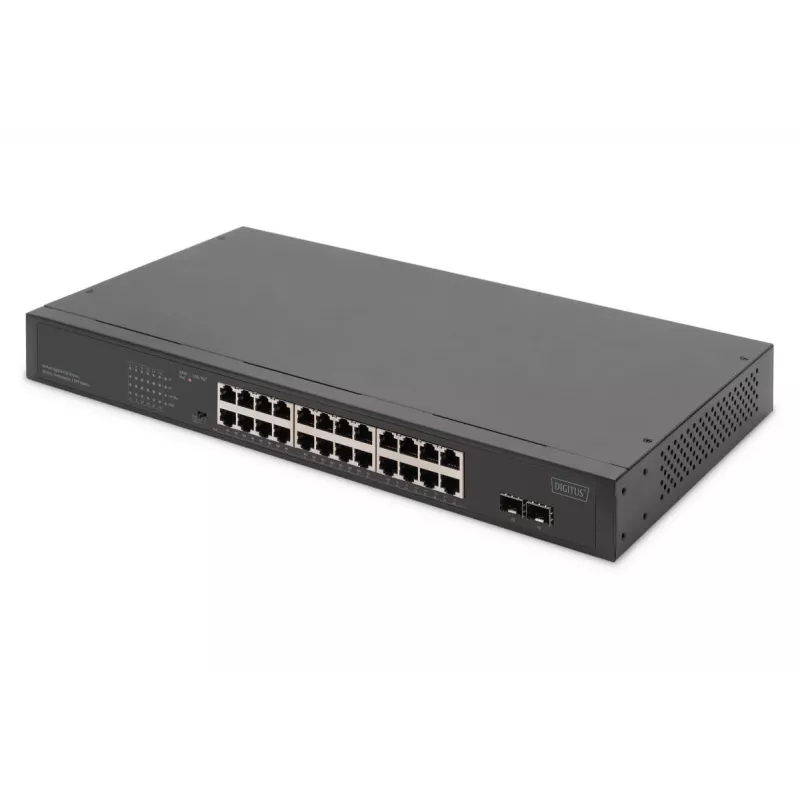

DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP

DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
DIGITUS Switch PoE unmanaged - 24 porte Gigabit + 2 porte Gigabit SFP
361,24 €
Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W- Support IEEE802.3af/at Standard- Single port output power up to 30W- Automatic detection and identification of standard PoE power receiving devices, intelligent power... Leggi di più
Stock 14 Codice 116844 Marca DIGITUS Modello DN-95348-2 Garanzia 2 anni

Spedizioni e resi

Consegna stimata Martedì, Ottobre 27
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W

- Support IEEE802.3af/at Standard
- Single port output power up to 30W
- Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
- Support port power supply prioritization, guarantee the continuous power supply of key nodes
- Panel indicators monitor working status and help fault analysis
- Support VLAN and CCTV function
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

The DN-95348-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritising the port power supply, the module ensures the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximise flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimises data transmission efficiency. Overall, the DN-95348-2 PoE switch offers a powerful, intelligent and reliable solution for powering network components that meets today's requirements for modern network infrastructures.

Punti salienti
  • Support IEEE802.3af/at Standard
  • Single port output power up to 30W
  • Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
  • Support port power supply prioritization, guarantee the continuous power supply of key nodes
  • Panel indicators monitor working status and help fault analysis
  • Support VLAN and CCTV function
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  • Mainboard, Power supply, PoE (three in one)
  • PoE Standard: IEEE802.3af/at
  • PoE Port: Port 1~24
  • PSE Power on RJ-45: Mode A 1/2(+),3/6(-)
  • PoE Port Output, Voltage: 55V DC, 30W max
  • PoE Power Budget: 370W
  • Power supply: 400W
  • Input Power Supply:AC 100-240V, 50/60Hz
  • Key supply: CCTV&VLAN
  • Forwarding Mode: Storage-and-Forward
  • Switching Capacity: 52 Gbps
  • MAC address table: 8K, Auto--learning, Auto-aging
  • Jumbo frames: 9216Byte
  • Packet Buffer: 4.1Mbit
  • Forwarding Rate: 38,69 Mpps
  • Operation Temperature: 0℃~40℃
  • Storage Temperature: -40℃~70℃
  • Operation Humidity: 10%~90% RH
  • Storage Humidity: 5%~90% RH
  • Dimensions(L*W*H): 440*207*44mm
  • Fan Qty:2
Specifiche
Alimentatore incluso
Yes
Alimentazione
AC
Altezza
44 mm
Altezza confezione
75 mm
Apprendimento automatico degli indirizzi MAC supportato
Yes
Budget PoE (Power over Ethernet) totale
370 W
Capacità di commutazione
52 Gbit/s
Cavi inclusi
AC
Colore del prodotto
Grey
Connettore di alimentazione
AC-in jack
Consumo energetico (max.)
400 W
Formato
1U
Frequenza di ingresso CA
50/60 Hz
Full duplex
Yes
Guida rapida
Yes
Half duplex
Yes
Impilabile
No
Indicatori LED
Yes
Invecchiamento automatico degli indirizzi MAC supportato
Yes
Jumbo frame
9216
Larghezza
440 mm
Larghezza confezione
320 mm
Materiale della scocca
Metal
Memoria buffer dei pacchetti
4.1 MB
Montaggio su rack
Yes
Numero di porte Ethernet RJ-45 di commutazione di base
24
Numero di porte Gigabit Ethernet (rame)
24
Numero di porte uplink
2
Numero di slot per moduli SFP
2
Numero di ventole
2 fan(s)
Paese di origine
China
Peso confezione
3.57 kg
Potenza Power over Ethernet (PoE) per porta
30 W
Power over Ethernet (PoE)
Yes
Profondità
207 mm
Profondità confezione
500 mm
Standard di rete
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Store-and-forward
Yes
Supporto 10G
No
Supporto controllo di flusso
Yes
Supporto jumbo frame
Yes
Supporto VLAN
Yes
Tabella indirizzi MAC
8000 entries
Temperatura di esercizio (T-T)
0 - 40 °C
Temperatura di stoccaggio (T-T)
-40 - 70 °C
Tensione di ingresso CA
100 - 240 V
Tensione Power over Ethernet (PoE)
55 V
Tipo di interfaccia Ethernet
Gigabit Ethernet
Tipo di porte Ethernet RJ-45 di commutazione di base
Gigabit Ethernet (10/100/1000)
Tipo di switch
Unmanaged
Umidità relativa di esercizio (H-H)
10 - 90%
Umidità relativa di stoccaggio (H-H)
5 - 90%
Velocità di inoltro
38.69 Mpps
Velocità di trasferimento Ethernet LAN
10,100,1000 Mbit/s
