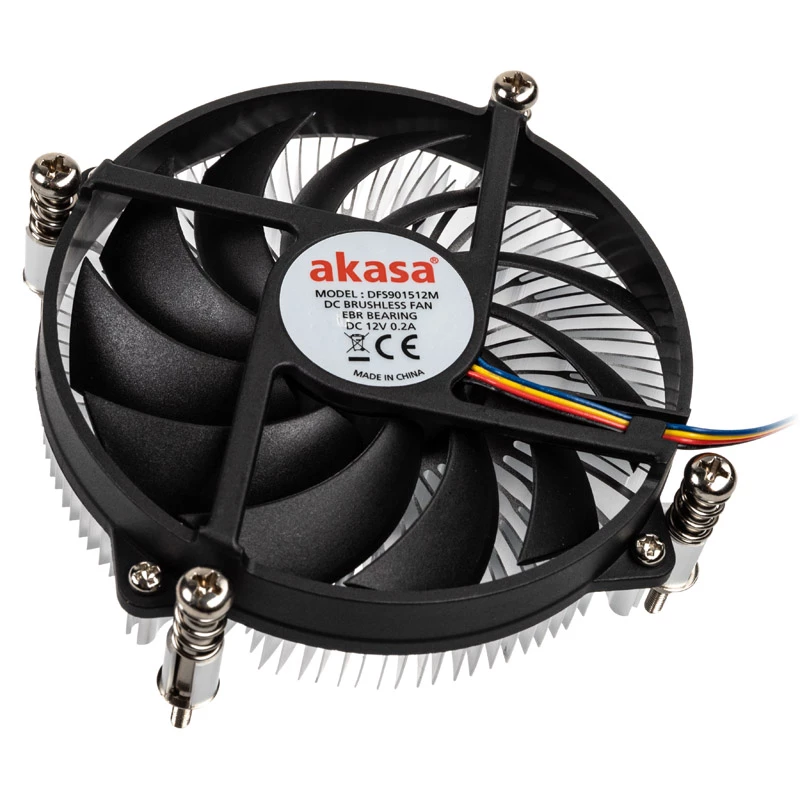

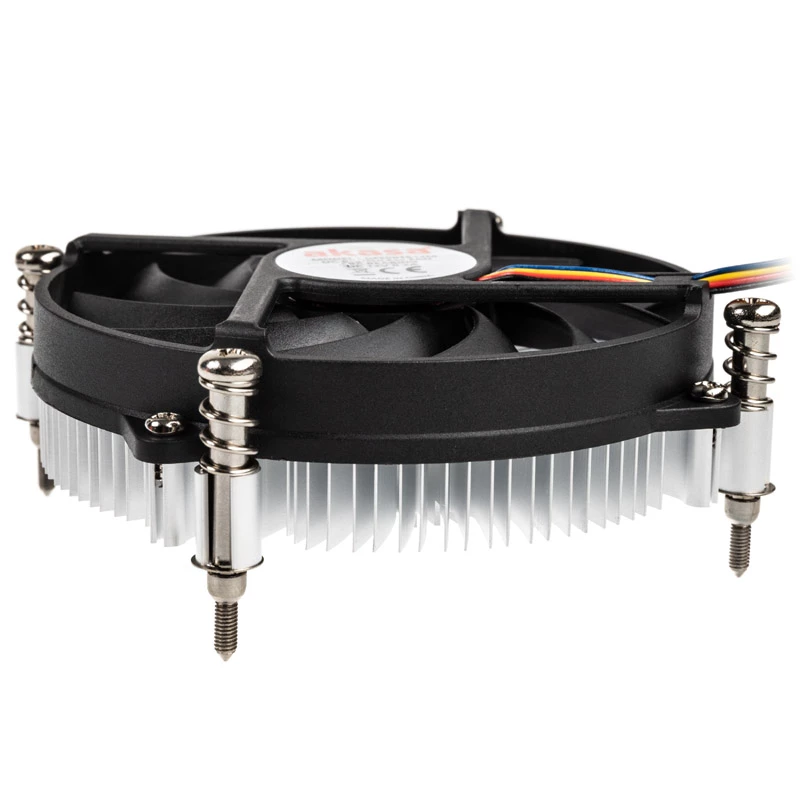

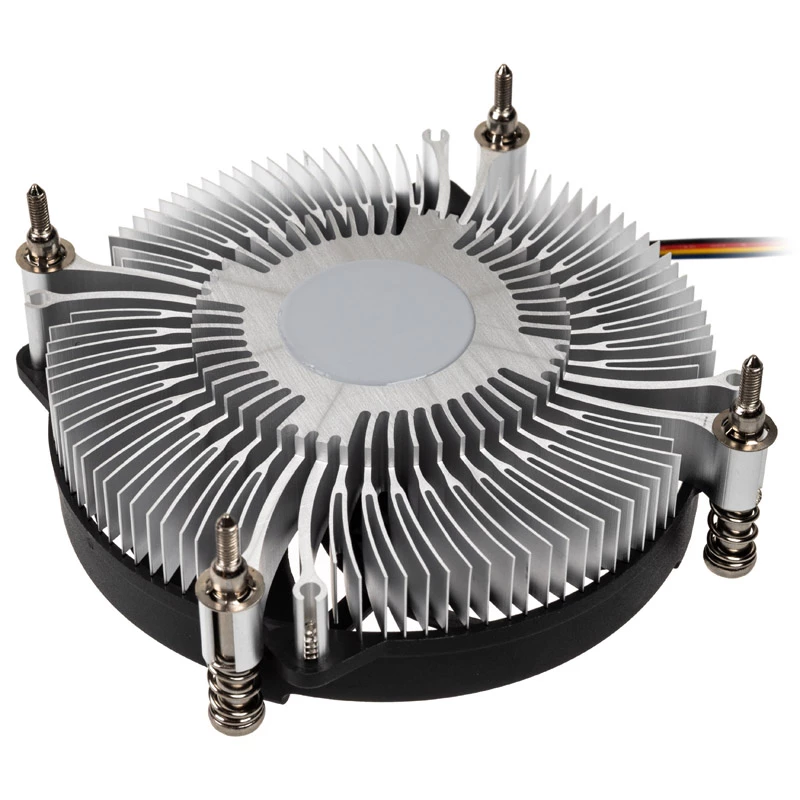

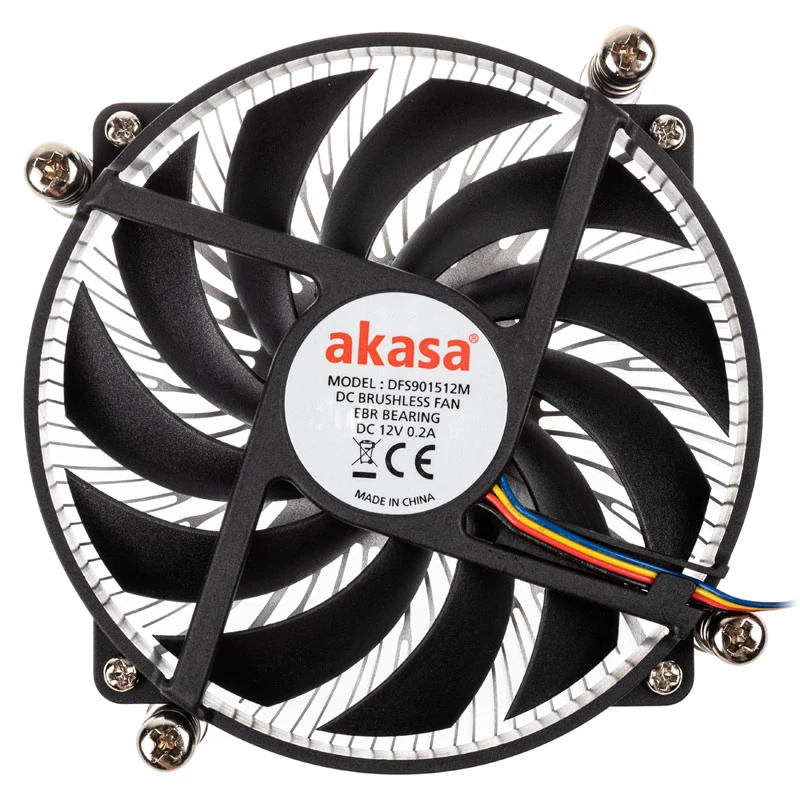

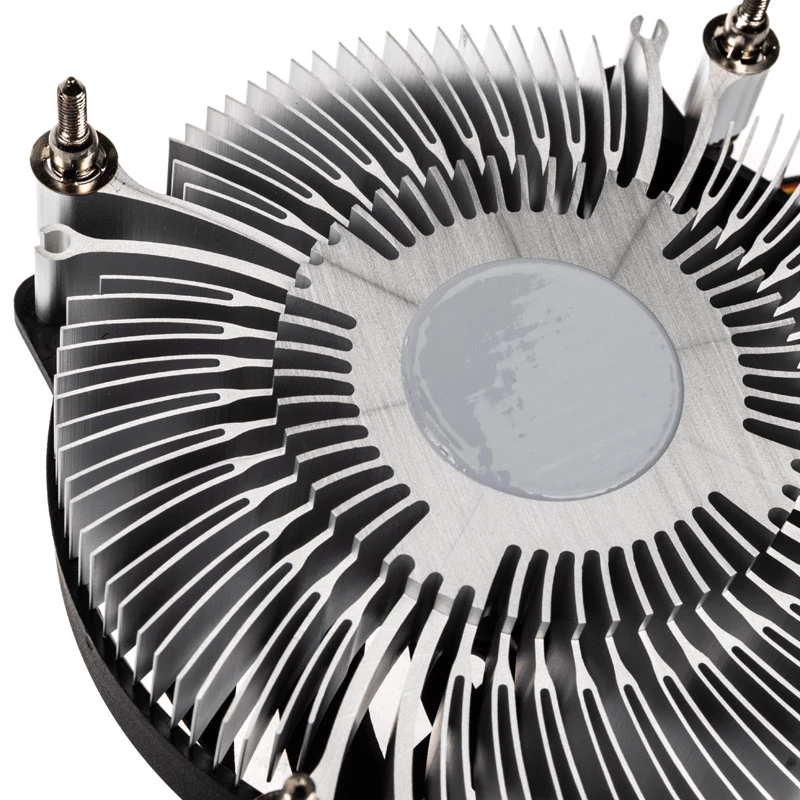

Dissipatore Akasa KS12 Low-Profile

The Akasa KS12 Low profile cooler is a compact CPU cooling solution engineered for Mini-ITX and HTPC systems where height and space are limited. With support for processors up to 65 W TDP, the cooler combines a slim aluminum body and a 96 mm fan to deliver steady airflow in tight enclosures. Its overall dimensions of 96 mm × 96 mm × 31.8 mm and lightweight construction make it suitable for small form factor builds without obstructing other components.

Advantages

The cooler offers reliable heat dissipation for low- to mid-range processors thanks to its focused fan design and aluminum construction. Its low profile reduces clearance issues in compact cases and allows for simple installation in HTPC and Mini-ITX layouts. The fan’s wide rotational range from 800 to 2800 RPM enables a balance between quiet operation at low loads and increased cooling performance when required. The unit’s modest weight simplifies handling during installation.

Suitable for

• Mini-ITX small form factor desktop and HTPC builds
• Systems using processors with up to 65 W TDP
• Compact cases with limited CPU cooler clearance
• Quiet home theater PCs where low-profile components are needed

Key specifications

• Fan diameter: 96 mm
• Fan speed range: 800–2800 RPM
• Maximum air pressure: 1.7 mmH2O
• Supported thermal load: up to 65 W TDP
• Dimensions (W×D×H): 96 × 96 × 31.8 mm
• Material: Aluminum
• Colour: Black (aluminum finish)
• Weight: 0.184 kg
• Compatible sockets: LGA 1155, LGA 1151, LGA 1150, LGA 1156, LGA 1200

How to use

Install the cooler following the motherboard and case manufacturer guidelines. Place the unit over the CPU contact area, ensure proper alignment with the mounting points for the supported socket, and secure it with the supplied backplate or mounting hardware. Connect the fan cable to the CPU fan header on the motherboard to enable speed control. Apply an appropriate quantity of thermal paste between the CPU heatspreader and the cooler base before mounting to ensure optimal thermal transfer. Verify clearance around memory modules and expansion cards before final assembly.

Recommendations

For best results in small form factor systems, configure fan control in the BIOS or via software to create a profile that keeps idle noise low while allowing higher fan speeds under CPU load. Periodically clean the fan and aluminum surfaces from dust to maintain airflow and cooling performance. Use this cooler with processors within the specified TDP range to avoid thermal limitations.
