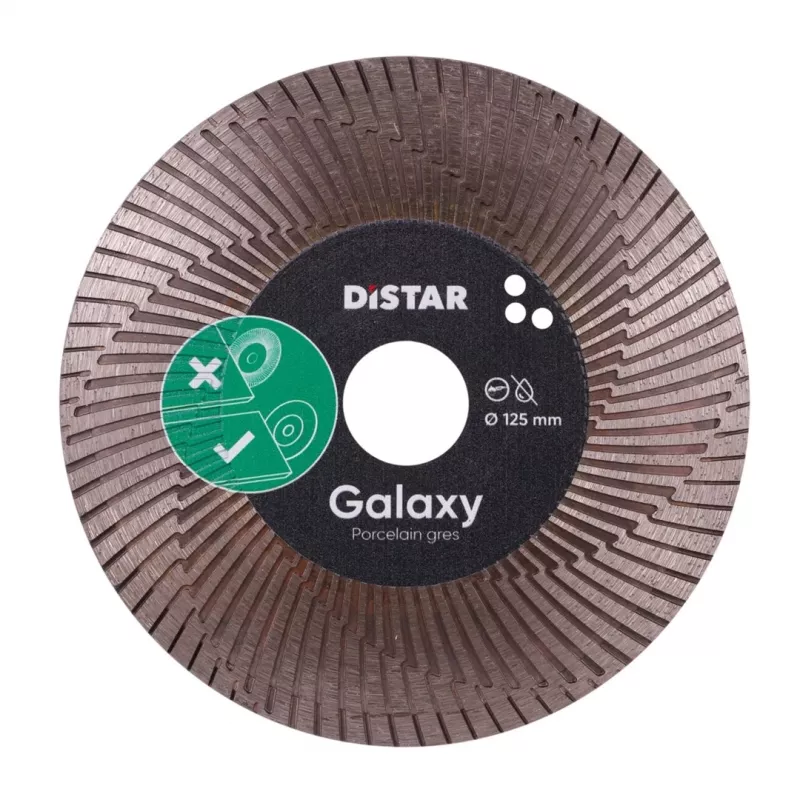

DISTAR Disco diamantato 125mm x 1,6mm x 22,23mm GALAXY

The DISTAR GALAXY Diamond Cutting Blade is a high-performance tool designed for precision cutting of hard and brittle materials. With a diameter of 125 mm, bore of 22.23 mm, and segment thickness of 1.6 mm, this blade is ideal for use with angle grinders. Its continuous rim design ensures smooth, chip-free cuts, while the hard bond formulation is optimized for ceramics and stone.

Advantages

Dry cutting capability eliminates the need for water, providing convenience and flexibility on job sites. The high-grade steel core offers stability and durability, reducing vibration for cleaner cuts. The blade is manufactured to EN 13236 standards, ensuring safety and performance.

Suitable for

• Ceramic tiles
• Porcelain stoneware
• Marble
• Granite
• All types of tiles

Key specifications

• Blade diameter: 125 mm
• Bore diameter: 22.23 mm
• Segment thickness: 1.6 mm
• Segment height: 8 mm
• Cutting method: Dry cutting
• Max rotational speed: 12250 RPM
• Blade design: Continuous rim
• Manufacturing standard: EN 13236
• Core material: High-grade steel
• Bond type: Hard bond

Recommendations

For best results, use with a variable speed angle grinder set to the appropriate RPM. Always wear appropriate safety gear, including eye protection and gloves. Ensure the blade is properly mounted and tightened before use.
