Distributore di corrente Bachmann 336.600 3 prese AC nero

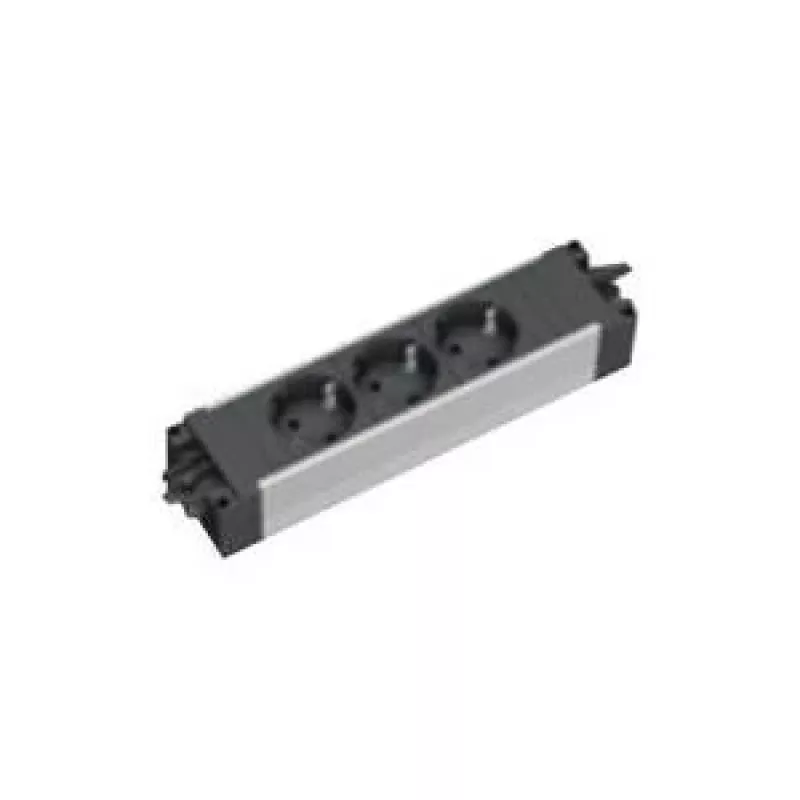

The Bachmann Power Extension 336.600 is a compact power strip in a 52 mm profile available in black plastic or aluminium appearance. It provides three AC outlets and accepts 230 V mains input, supporting up to 16 A (maximum power 3680 W). The unit is designed for modular electrification systems and can be mounted on T-slot and upright profiles from various manufacturers using specially designed (ESD-capable) mounts. Mains connections use the Wieland GST18 connector system, and strips can be linked with extension cables or fitted with additional feed modules.

Advantages

The power extension combines compact dimensions with a robust housing for reliable everyday use. Its mounting concept allows installation on common machine profiles and the ESD-capable mounts enable safe assembly in sensitive environments. The Wieland GST18 connector interface simplifies mains input and output connections, while the option to link strips or add modules increases flexibility for modular electrification setups.

Suitable for

• Distributing power to multiple devices at workbenches or offices
• Integration into modular conveyor or machine profile systems
• Environments requiring ESD-capable mounting and secure connectors

Key specifications

• Model: Bachmann 336.600
• AC outlets: 3
• Input voltage: 230 V
• Rated current: 16 A
• Maximum power: 3680 W
• Colour: Black
• Connector system: Wieland GST18
• Profile width: 52 mm

How to use

Mount the power strip onto a compatible T-slot or upright profile using the supplied or specially designed ESD-capable mounts. Connect the mains input using a Wieland GST18 supply cable or attach a feed module where appropriate. Plug devices into the three AC outlets and, if more outlets or extended runs are required, link additional strips with device extension cables. Ensure the total load does not exceed 16 A or 3680 W.

Recommendations

Do not exceed the rated current of 16 A. Use only compatible Wieland GST18 connectors and approved feed cables. For installations in ESD-sensitive environments, use the specified ESD-capable mounts and follow local electrical safety regulations.
