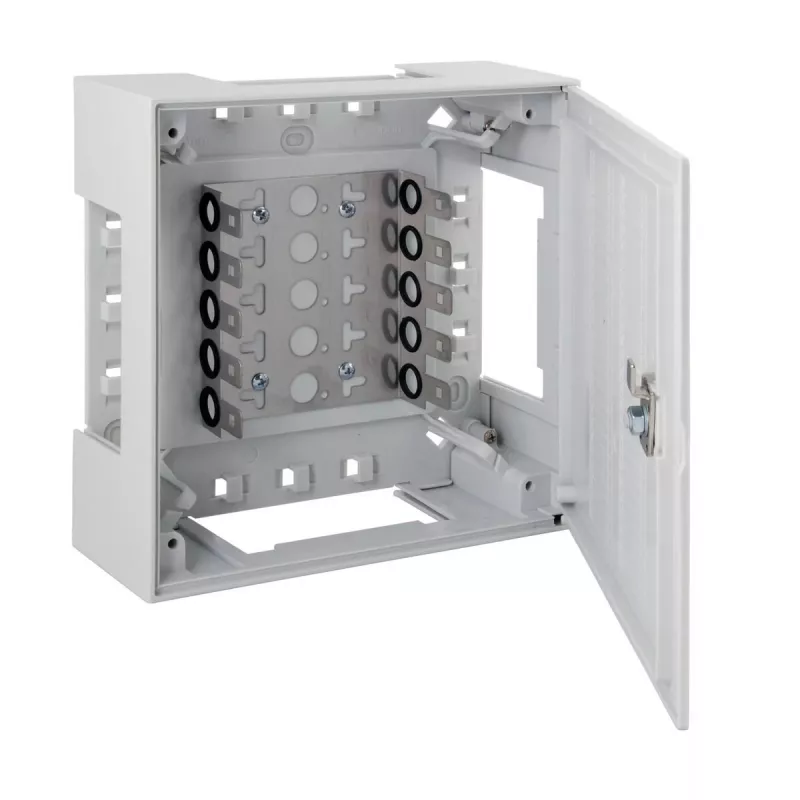

Distributore elettrico EFB Elektronik 46025.1 grigio 215x76x215 mm

The EFB Elektronik 46025.1 electrical box is a grey, indoor plastic distributor designed for tidy and safe electrical installations. Measuring 215 x 76 x 215 mm, it provides space for wiring and connection modules and is suitable for mounting LSA connection modules. The unit includes a backmount frame for five LSA connection modules (2/10, 10-pair) and four top strips. Protection degree is IP30.

Advantages

This plastic distributor offers a compact footprint with internal space optimized for connection modules and wiring. The included backmount frame for 5 × LSA 2/10 (10-pair) modules simplifies wiring layout and module mounting. The IP30 protection rating makes it suitable for indoor installation, and the lightweight grey enclosure (0.83 kg) is easy to handle during installation.

Suitable for (tasks / use cases)

• Indoor electrical distribution and junctions
• Mounting LSA connection modules (5 × 2/10, 10-pair)
• Neat organization of telecommunication or control wiring inside buildings
• Small electrical installation projects and retrofit work

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 46025.1
• EAN: 4049759066833
• Material: Plastic (indoor use)
• Colour: Grey
• Dimensions (W × D × H): 215 × 76 × 215 mm
• Weight: 0.83 kg
• Protection degree: IP30
• Includes: 1 × backmount frame for 5 × LSA connection modules (2/10, 10-pair), 4 top strips

How to use

Mount the enclosure to a suitable flat indoor surface using appropriate fasteners for the wall material. Fit the backmount frame inside the box and install the LSA 2/10 connection modules into the frame. Route cables into the enclosure through planned entry points, secure wiring, and terminate conductors on the LSA modules according to wiring diagrams and local regulations. Close the cover after completing connections to maintain IP30 protection.

Recommendations

For safety and compliance, use the electrical box only indoors, keep the enclosure protected from moisture and direct water exposure, and follow national electrical codes when installing and terminating cables. Ensure competent personnel perform connections to LSA modules and verify correct wiring before energizing circuits.
