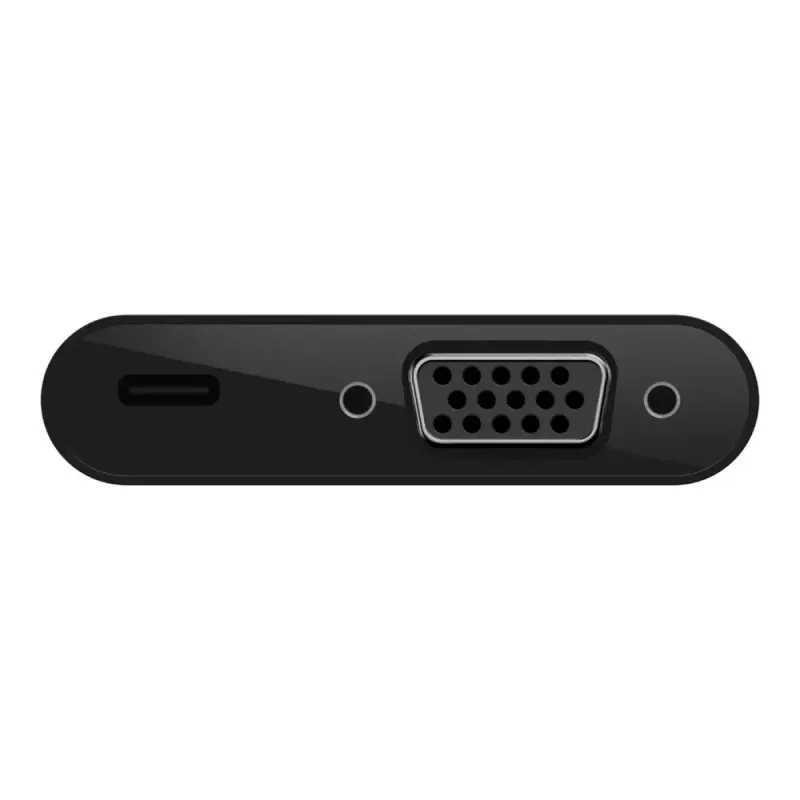

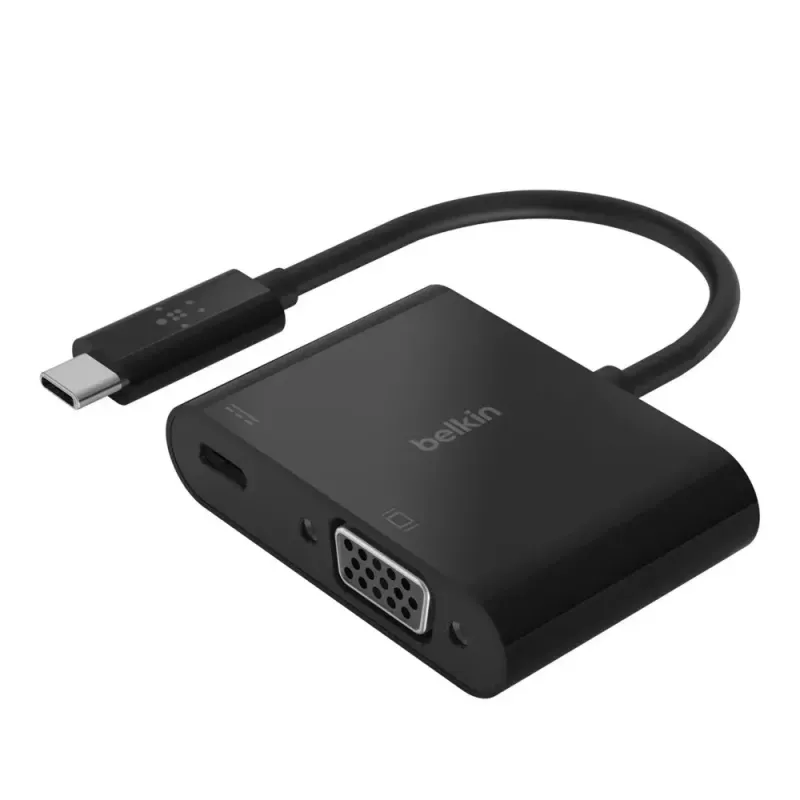

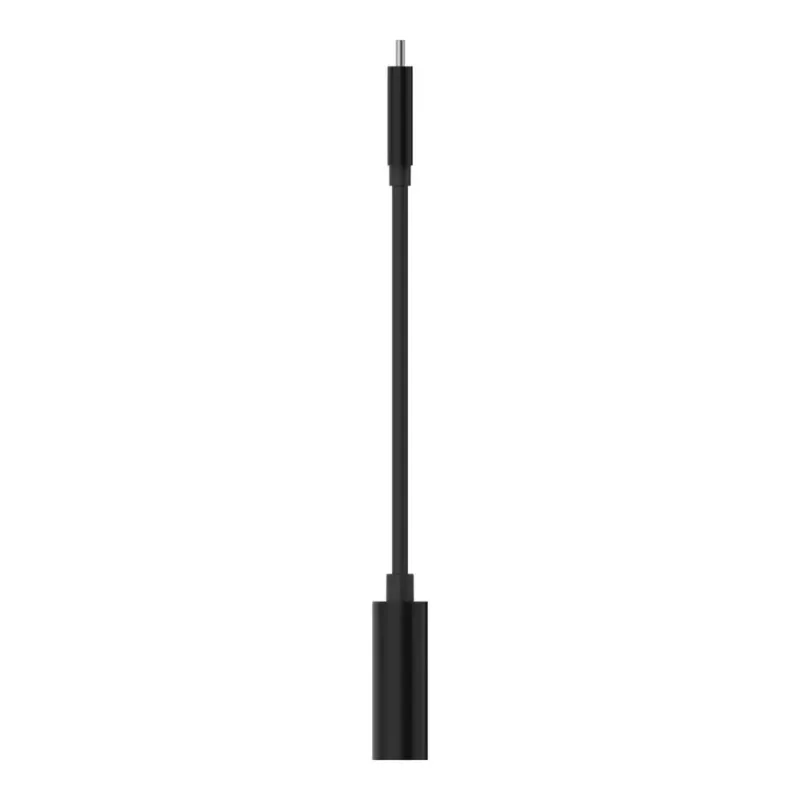

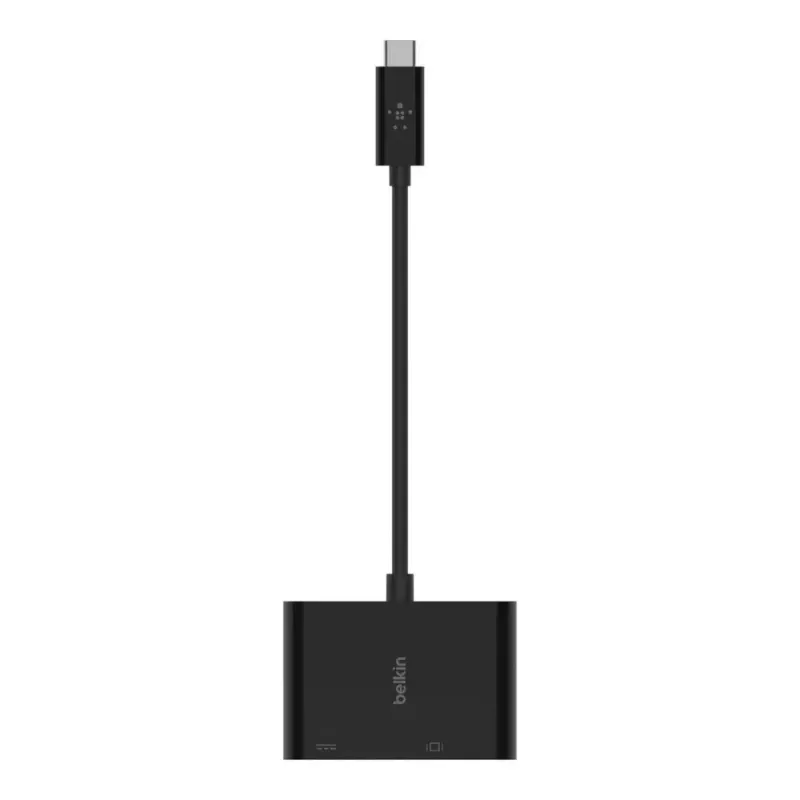

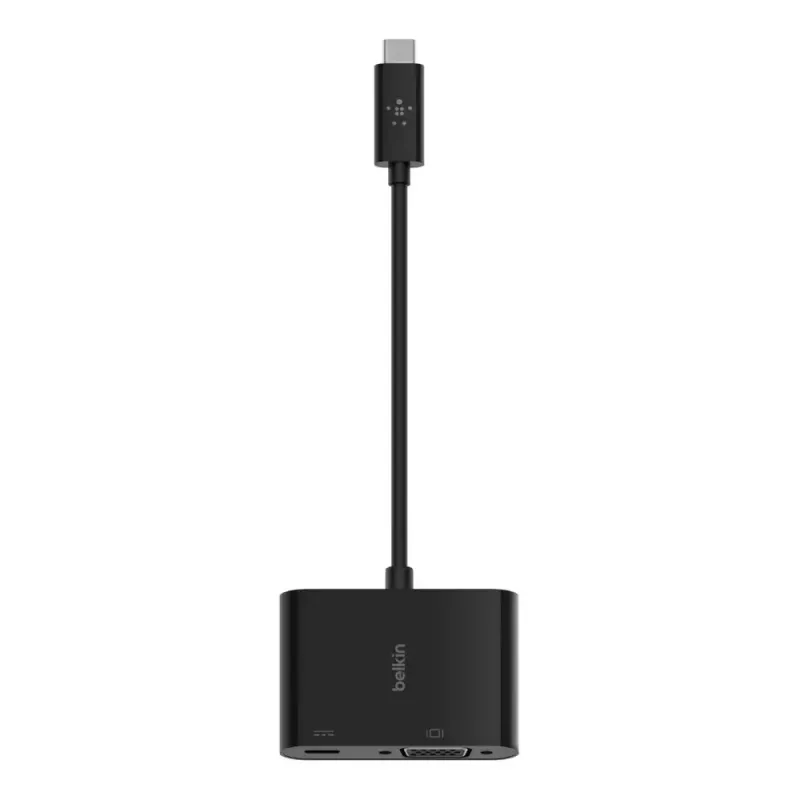

Dock per laptop Belkin AVC001BTBK

The Belkin AVC001BTBK is a compact USB-C laptop dock that provides a VGA video output and a USB-C power pass-through from a single USB-C host port. Designed for simple plug-and-play use with Mac and Windows laptops and other USB-C devices, the dock supports USB Power Delivery so you can power your device while sending a VGA video signal to an external display.

Advantages

This dock combines video and power through one USB-C connection, reducing cable clutter and enabling presentations or external display use without sacrificing battery life. It supports pass-through USB-C Power Delivery up to 60W and delivers high-definition VGA output up to 1920x1200 (1080p) at 60 Hz. Its small footprint and universal compatibility make it convenient for mobile work, classrooms, conferences, and trade shows.

Suitable for

• Connecting a laptop or tablet with USB-C to VGA projectors or monitors
• Charging a USB-C laptop or device while using an external VGA display
• Presentations, classrooms, meetings and trade-show booths

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C)
• Hub interfaces: USB-C (pass-through power), VGA
• Power Delivery: up to 60W pass-through
• Maximum supported VGA resolution: up to 1920x1200 (1080p) at 60 Hz
• Product colour: Black
• Dimensions (W×D×H): 43 mm × 131.5 mm × 11.6 mm
• Manufacturer: Belkin, model AVC001BTBK

How to use

Connect the dock to your laptop or tablet's USB-C port. Plug a VGA cable from the dock's VGA port to an external monitor or projector. If you want to charge the host device while using video output, connect a USB-C power adapter (supporting Power Delivery) to the dock's USB-C power input. The device uses plug-and-play operation; no additional drivers are typically required for Mac and Windows systems.

Recommendations

Use a USB-C PD charger that matches or exceeds your laptop's power requirements (up to 60W supported by the dock) to ensure adequate charging while driving an external display. For best video quality, use a well-shielded VGA cable and ensure the external display supports the requested resolution.
