Docking station ALOGIC DX2 Dual 4K Display

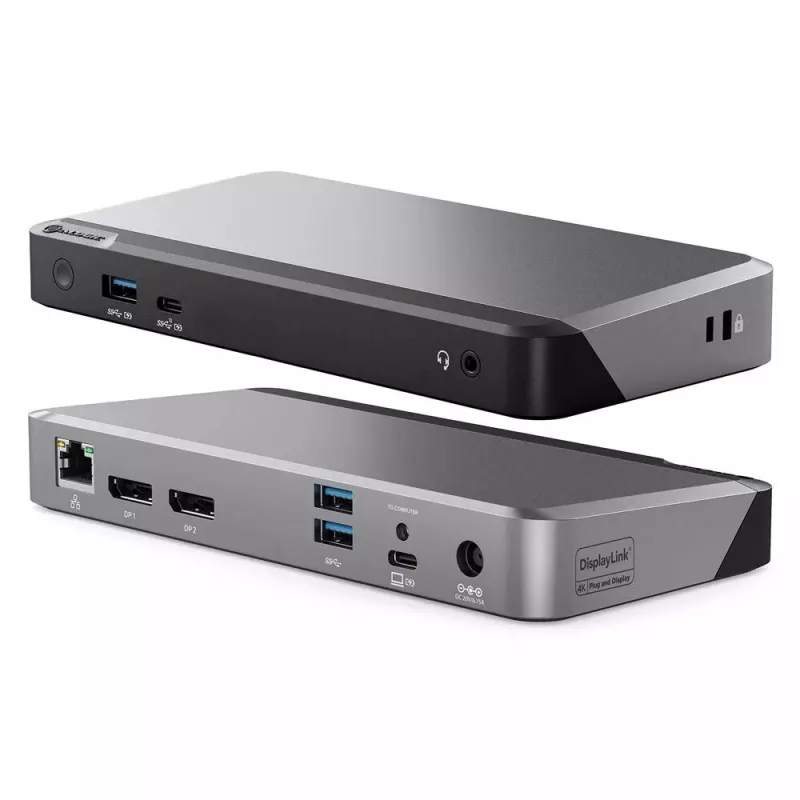

The ALOGIC DX2 Dual 4K Display docking station expands the capabilities of laptops by providing a comprehensive set of ports and compatibility with Windows, macOS and ChromeOS systems. It supports dual external displays up to 4K via two DisplayPort outputs, provides Power Delivery up to 65W, Gigabit Ethernet and multiple USB ports in a compact enclosure designed for home offices, education and corporate environments.

Advantages

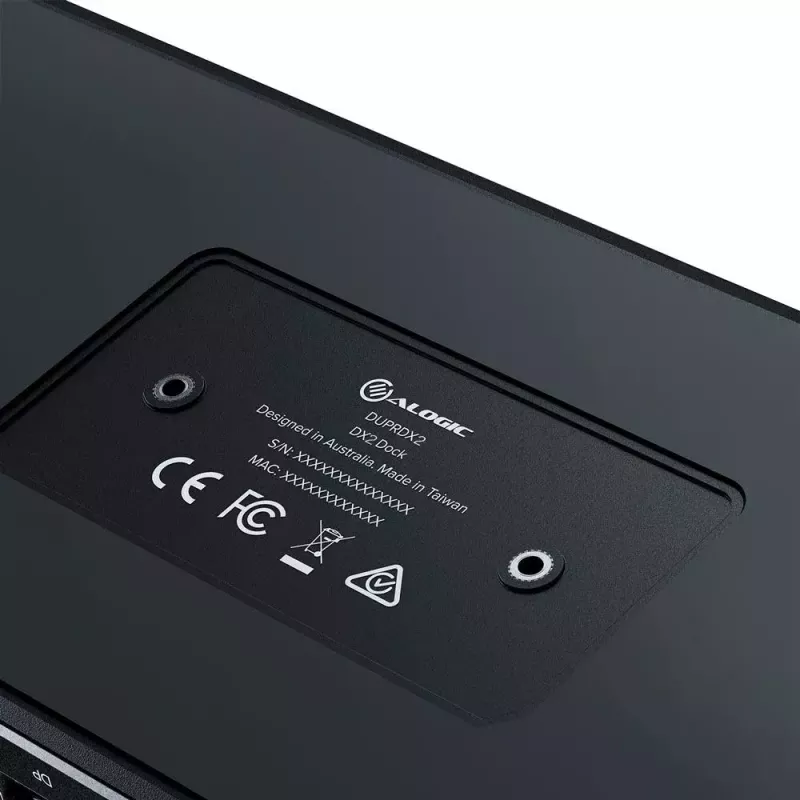

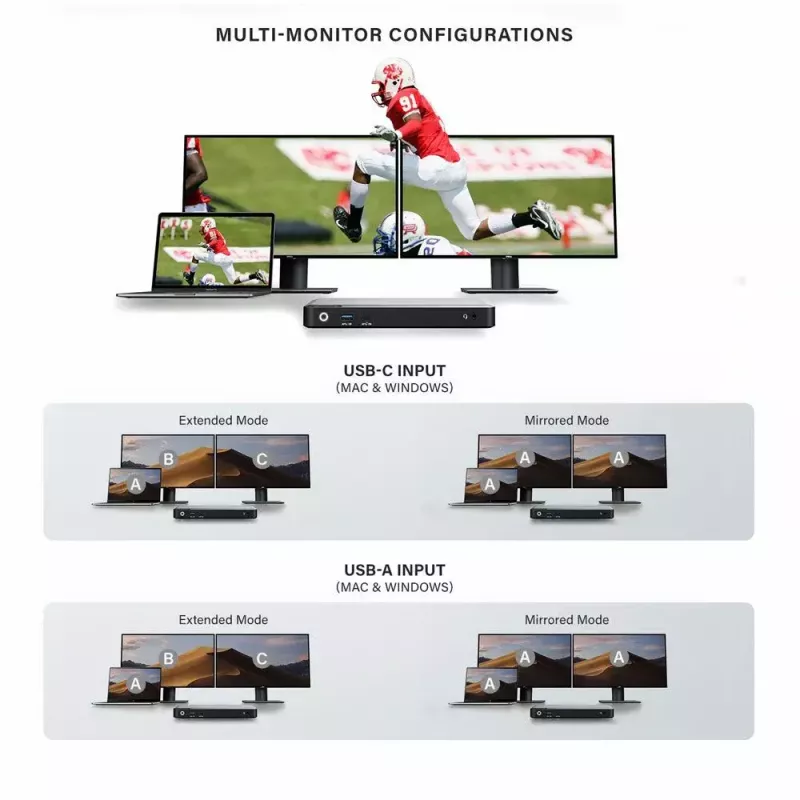

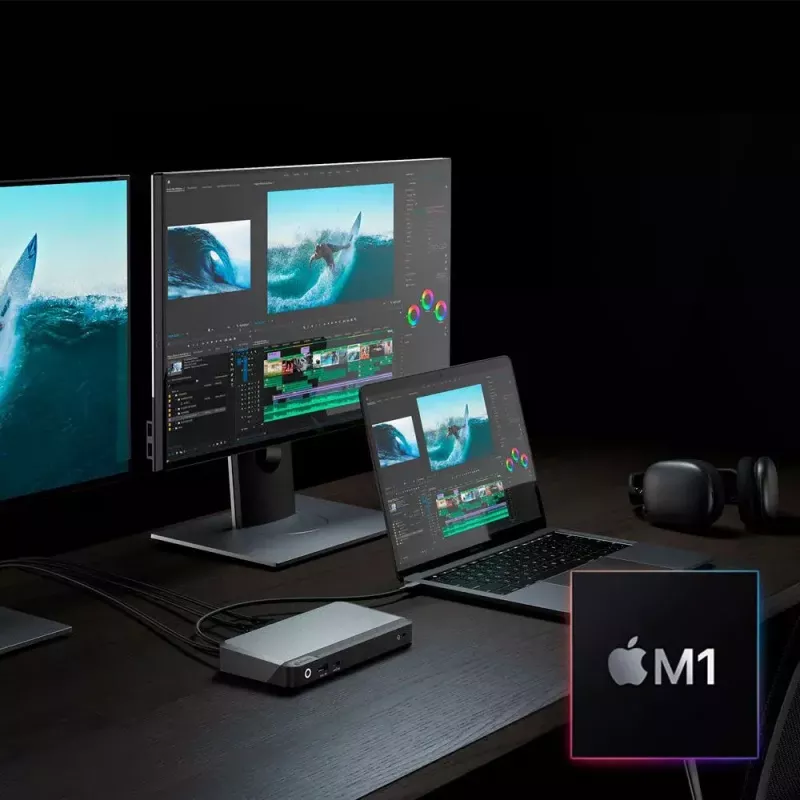

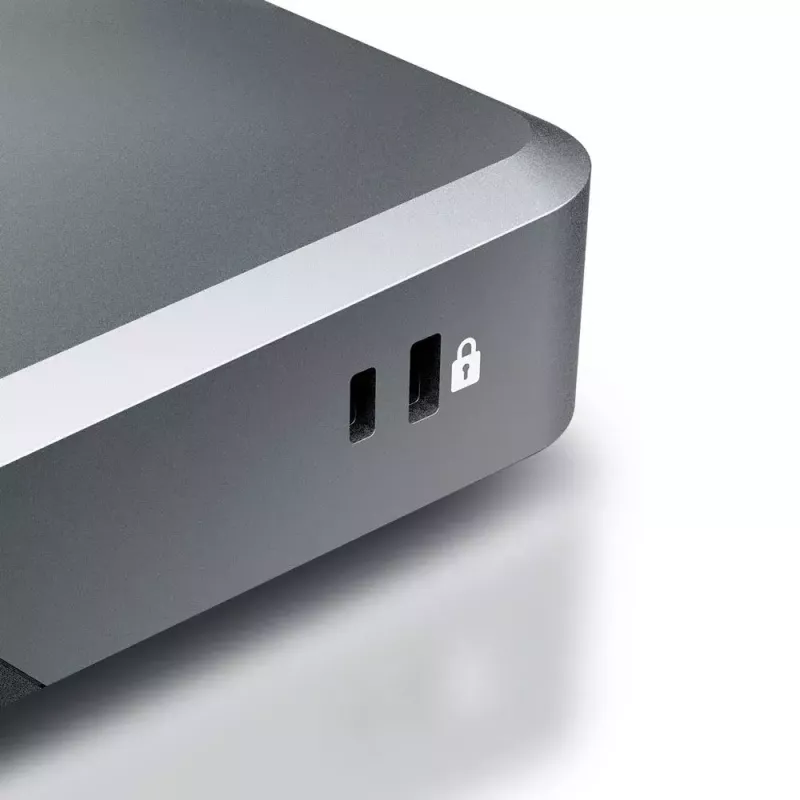

The DX2 enables connection of two 4K monitors for extended or mirrored desktop use and supports M1 Mac dual display when used with DisplayLink technology. It accepts both USB-C and USB-A host connections, includes a VESA mounting option, a lock slot and an LED power indicator, and offers wired Gigabit Ethernet alongside USB 3.2 Gen 1 and Gen 2 ports for fast data transfer and peripheral connectivity.

Suitable for

• Home office setups with multiple monitors
• Corporate and education workstations requiring Ethernet and peripheral ports
• Design, data entry and spreadsheet workflows needing extra screen space

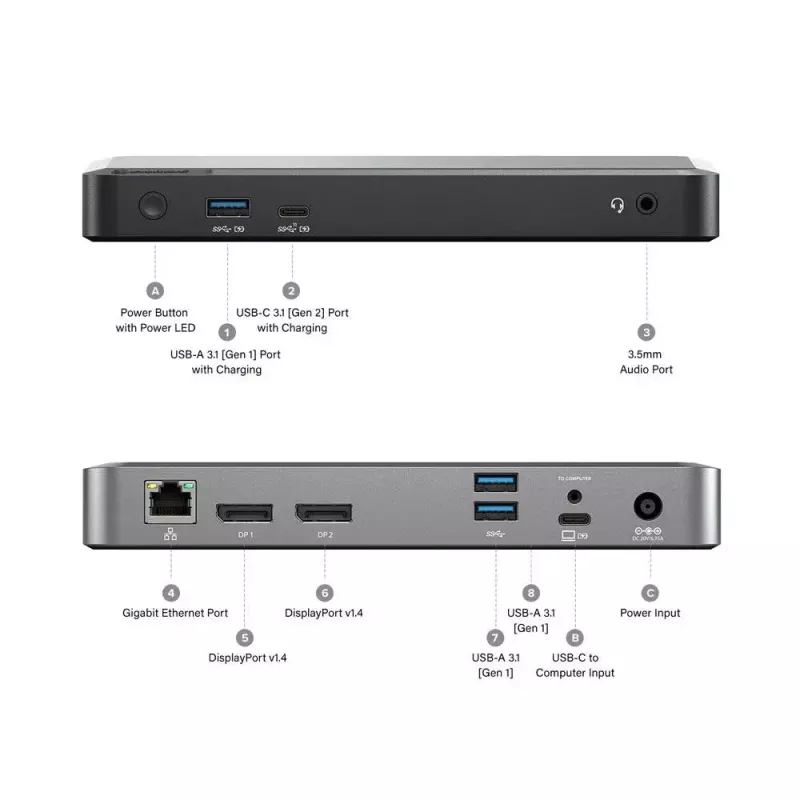

Key specifications

• Dual DisplayPort outputs supporting up to 4K resolution each (DisplayLink-enabled)
• Maximum digital resolution: 5120 x 2880 pixels
• Power Delivery: 65W

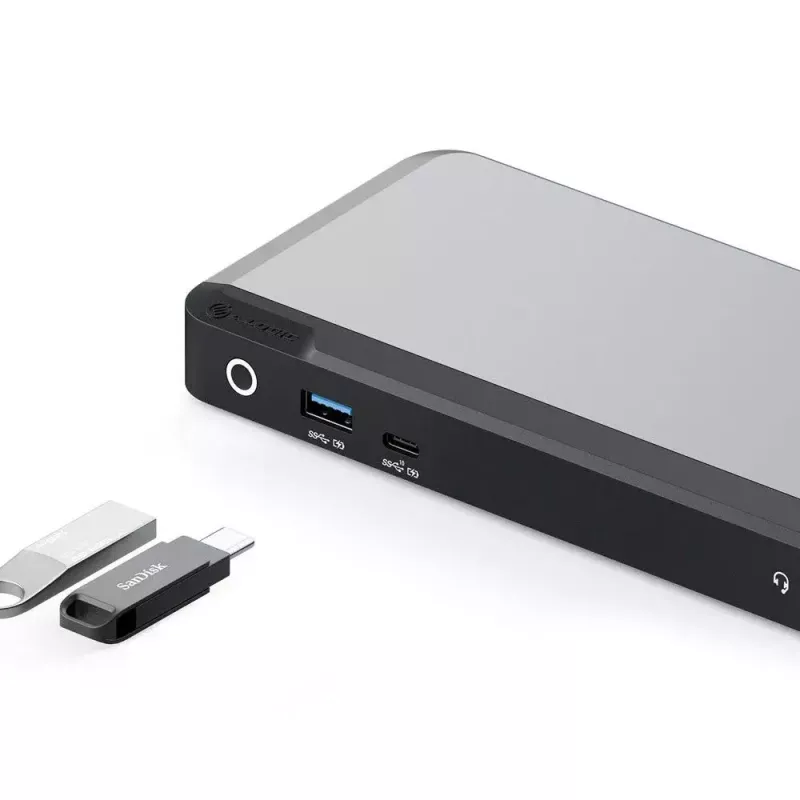

• USB ports: 3 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2 Type-A
• Ethernet: 1 × Gigabit RJ-45 (1000 Mbit/s)

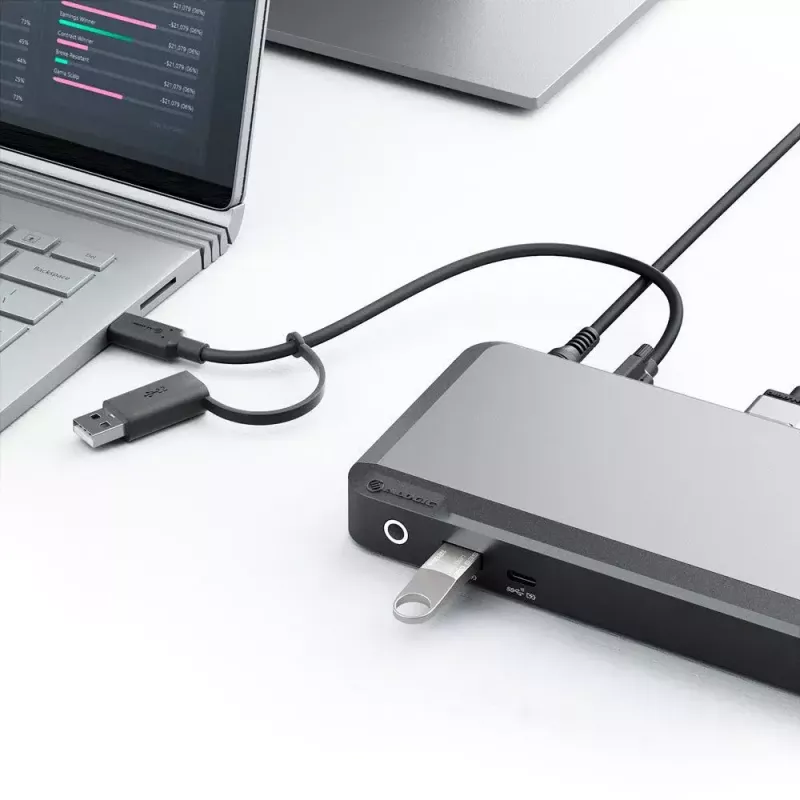

• Connectivity: Wired, compatible with USB-C and USB-A laptops
• Dimensions: 190 mm × 90 mm × 6.5 mm; Weight: 0.535 kg
• Colours: Grey, Black
• Power plug compatibility: AU, EU, UK, US

How to use

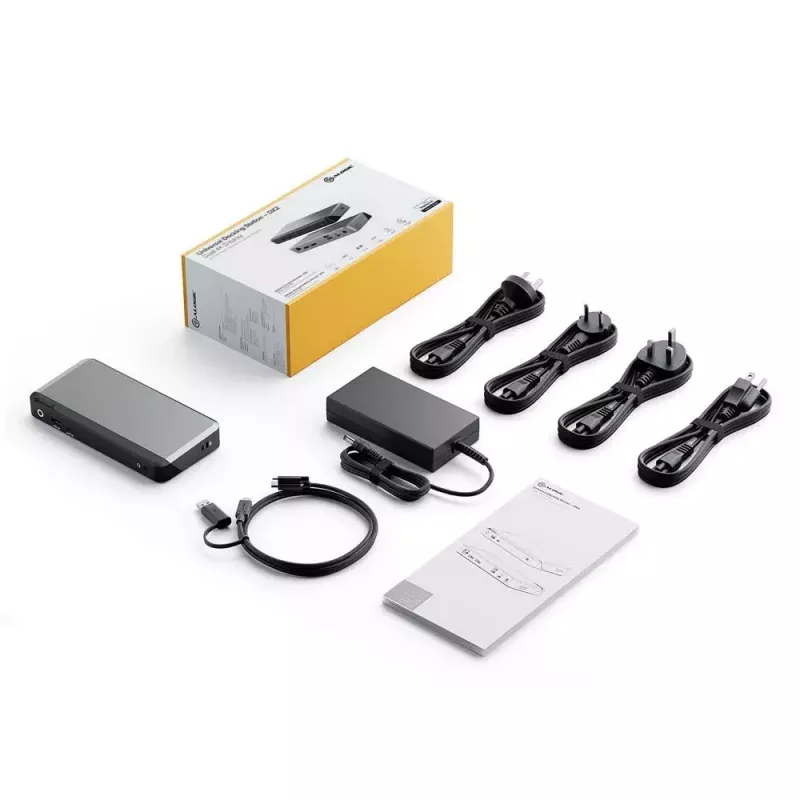

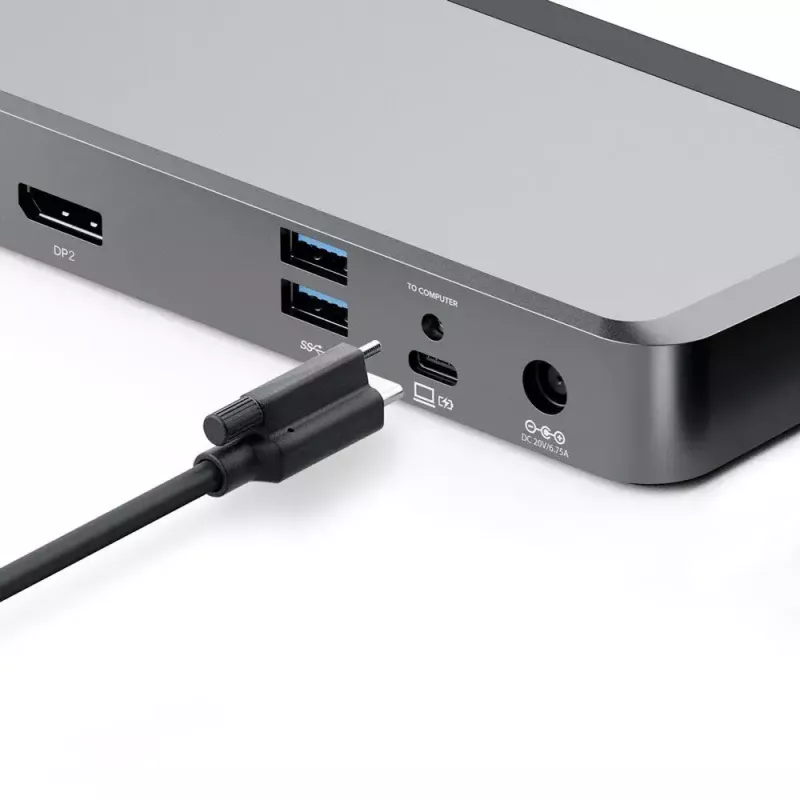

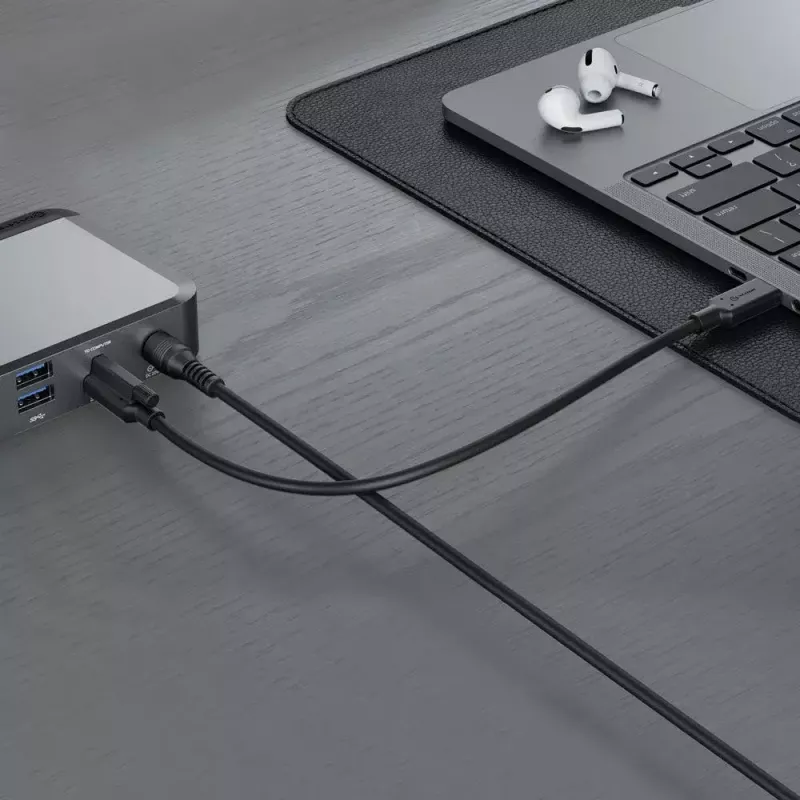

Place the docking station on a stable surface or mount it via the VESA option. Connect the dock to your laptop using the appropriate USB-C or USB-A cable and plug the dock into mains power using the supplied adapter for your region. Attach DisplayPort cables from the dock to one or two external monitors. Connect peripherals to the USB-A ports and plug an Ethernet cable into the RJ-45 port if wired network access is needed. Install DisplayLink drivers on systems that require them to enable dual 4K display functionality and optimal performance.

Recommendations

For best multi-monitor performance, ensure the latest DisplayLink drivers are installed and use high-quality DisplayPort cables. When using power-hungry laptops, verify that 65W Power Delivery meets your device’s charging requirements; some laptops may require their own power adapter for full charging under heavy load.
